55402 (960) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971)

Suburban Lawn Tractor

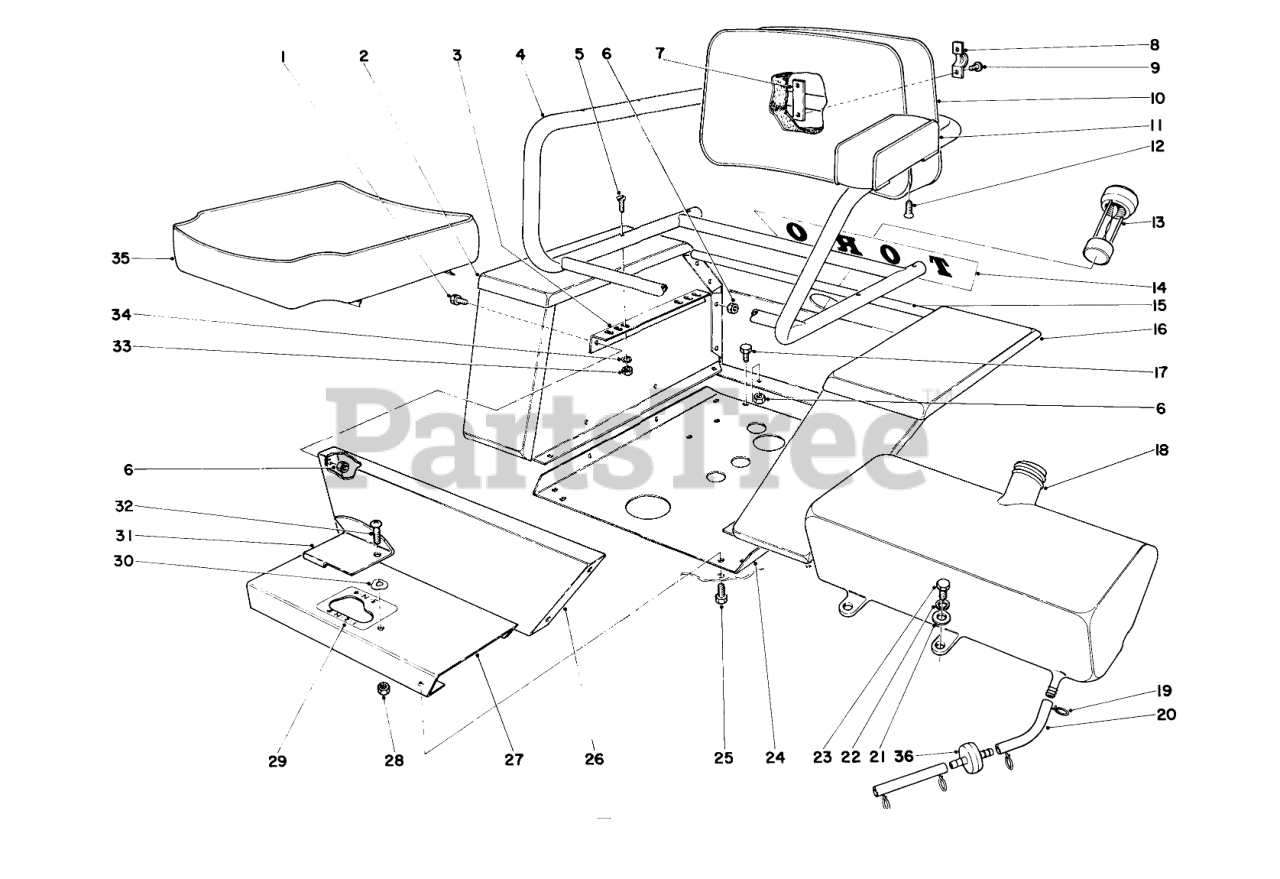

55402 (960) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) > Parts Diagrams (12) > SEAT AND FENDER ASSEMBLY

  • Title
322-2

1

SCREW-HH

Part# 322-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.80

7-3280

2

Fender R.H.

Part# 7-3280

OEM Warranty Repair Part for Toro

Currently unavailable

7-3267

3

Brace Fender

Part# 7-3267

OEM Warranty Repair Part for Toro

Currently unavailable

7-3341

4

Frame Seat

Part# 7-3341

OEM Warranty Repair Part for Toro

Currently unavailable

32108-8

5

Flat Head Screw

Part# 32108-8

OEM Warranty Repair Part for Toro

Currently unavailable

32152-1

6

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.33

351-28

7

Plate Clamp

Part# 351-28

OEM Warranty Repair Part for Toro

Currently unavailable

351-27

8

U-Clamp

Part# 351-27

OEM Warranty Repair Part for Toro

Currently unavailable

3290-133

9

SCREW

Part# 3290-133

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.44

7-3356

10

Backrest Seat

Part# 7-3356

OEM Warranty Repair Part for Toro

Currently unavailable

7-3355

11

Arm Rest Seat

Part# 7-3355

OEM Warranty Repair Part for Toro

Currently unavailable

32108-8

12

Flat Head Screw

Part# 32108-8

OEM Warranty Repair Part for Toro

Currently unavailable

7-3945

13

Gas Gauge

Part# 7-3945

OEM Warranty Repair Part for Toro

Currently unavailable

7-3934

14

Decal Seat

Part# 7-3934

OEM Warranty Repair Part for Toro

Currently unavailable

7-3980

15

Rear Fender

Part# 7-3980

OEM Warranty Repair Part for Toro

Currently unavailable

7-3278

16

Fender L.H.

Part# 7-3278

OEM Warranty Repair Part for Toro

Currently unavailable

322-1

17

SCREW-HH

Part# 322-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.54

7-3910

18

Gas Tank

Part# 7-3910

OEM Warranty Repair Part for Toro

Not available

2412-33

19

Clamp

Part# 2412-33 (Superseded to 2412-98)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

7-2700

20

Gas Hose

Part# 7-2700

OEM Warranty Repair Part for Toro

Currently unavailable

3256-4

21

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

3253-21

22

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

323-6

23

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.85

7-3966

24

Base Fender Rear

Part# 7-3966

OEM Warranty Repair Part for Toro

Currently unavailable

32104-84

25

Screw

Part# 32104-84

OEM Warranty Repair Part for Toro

Currently unavailable

7-3258

26

Fender Front

Part# 7-3258

OEM Warranty Repair Part for Toro

Currently unavailable

7-3810

27

Shift Pattern

Part# 7-3810

OEM Warranty Repair Part for Toro

Currently unavailable

32152-4

28

NUT-LOCK, CONE

Part# 32152-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

7-3821

29

Decal Shift Pattern

Part# 7-3821

OEM Warranty Repair Part for Toro

Currently unavailable

3290-234

30

Lynch Pin

Part# 3290-234

OEM Warranty Repair Part for Toro

Currently unavailable

7-3812

31

Tab Lock out

Part# 7-3812

OEM Warranty Repair Part for Toro

Currently unavailable

32122-42

32

SCREW

Part# 32122-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.30

3217-5

33

NUT-HEX

Part# 3217-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.54

3253-3

34

WASHER-LOCK

Part# 3253-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.10

7-3354

35

Cushion Seat

Part# 7-3354

OEM Warranty Repair Part for Toro

Currently unavailable

304-92

36

Filter Gas Tank

Part# 304-92

OEM Warranty Repair Part for Toro

Currently unavailable
