555 (316-555-100) - Cub Cadet 24" Snow Thrower (1986) Snow Thrower Part 1 Parts Diagram

24" Snow Thrower

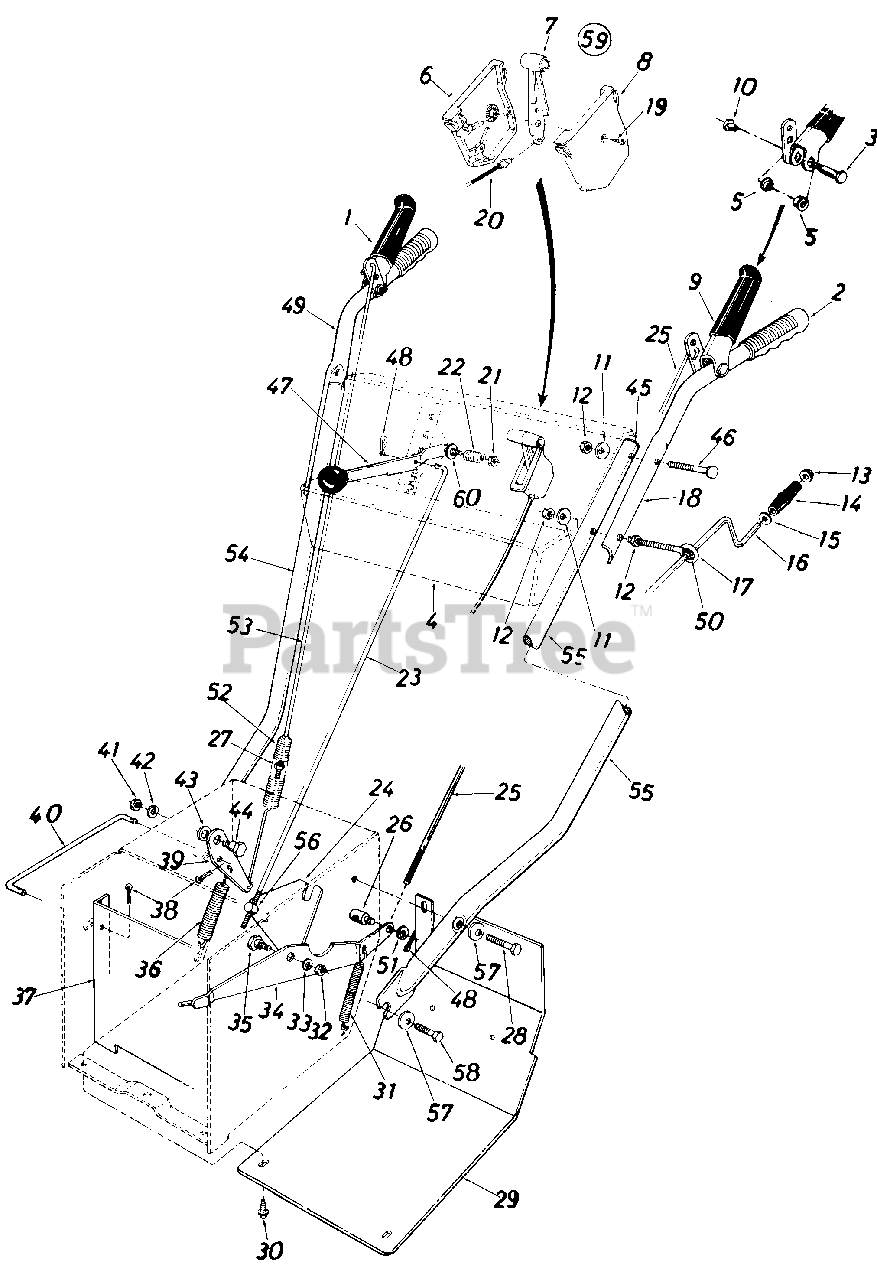

Snow Thrower Part 1 Parts Diagram

  • Title

1

Cub Cadet 05988

Clutch Grip Ass'y.-R.H.

$

$

Not available

2

Cub Cadet 720-0180

Grip
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

3

Cub Cadet 738-0560

Shoulder Bolt .374 Dia. x 1.53" Lg.
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

4

Cub Cadet 784-5000

Handle Panel Ass'y.

$

$

Currently unavailable

5

Cub Cadet 741-0402

Hex Flange Plastic Bearing .380" I.D.

$

$

Not available

6

Part of Ref. No. 59

$

$

Not available

7

Part of Ref. No. 59

$

$

Not available

8

Part of Ref. No. 59

$

$

Not available

9

Cub Cadet 05987

Clutch Grip Ass'y.-L.H.

$

$

Currently unavailable

10

Cub Cadet 738-0561

Shoulder Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet 720-0171

Knob 3/8" Rod
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0140

Fl-Wash. .40" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

16

Cub Cadet 05981

Chute Crank Ass'y.

$

$

Not available

17

Cub Cadet 747-0416

Eye Bolt 5/16-18 x 5.0" Lg.

$

$

Not available

18

Cub Cadet 749-0593

Upper Handle-L.H.

$

$

Not available

19

Part of Ref. No. 59

$

$

Not available

20

Cub Cadet 746-0500

Throttle Control Wire
(Superseded to 946-0500)

$14.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 732-0193

Compression Spring .50" O.D. x .88" Lg.

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 747-0356

Shifting Rod 5/16" x 32.50" Lg.

$

$

Not available

24

Cub Cadet 05898

Shifting Linkage Bracket

$

$

Not available

25

Cub Cadet 747-0452

Lockout Rod .214" Dia. x 36.0" Lg.

$

$

Not available

26

Cub Cadet 711-0736

Adjustment Ferrule 1/4-20

$13.99

$

In Stock, only 2 left!

0

27

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 05899

Frame Cover

$

$

Currently unavailable

30

Cub Cadet 710-0599

Hex Wash. Self-Tap Scr. 1/4 -20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-0320

Extension Spring .38" O.D. x 3.25" Lg.
(Superseded to 932-0320)

$9.99

$

In Stock, only 3 left!

0

32

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.*
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

34

Cub Cadet 784-5050

Auger Clutch Bracket Ass'y.

$

$

Not available

35

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170

$9.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-0121

Extension Spring .75" O.D. x 4.31 " Lg.
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

37

Cub Cadet 05878

Drive Pulley Support Brkt. Ass'y.

$

$

Currently unavailable

38

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 05501

Drive Clutch Bracket

$

$

Not available

40

Cub Cadet 10080

Drive Clutch Rod

$

$

Not available

41

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.*
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0264

Fl-Wash. .34" I.D. x .75" O.D.

$6.49

$

In Stock, only 1 left!

0

44

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170

$9.99

$

In Stock, only 1 left!

0

45

Cub Cadet 731-0496

Plastic Plug

$

$

Not available

46

Cub Cadet 710-0487

Carriage Bolt 5/16-18 x 2.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 05694

Shift Handle Ass'y.

$

$

Not available

48

Cub Cadet 714-0104

Int. Cotter Pin 5116" Dia.

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 749-0594

Upper Handle-R.H.

$

$

Not available

50

Cub Cadet 735-0218

Grommet
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0264

Fl-Wash. .28" I.D. x .62" O.D.

$6.49

$

In Stock, only 1 left!

0

52

Cub Cadet 732-0184

Extension Spring .75" O.D. x 5.00" Lg.

$23.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 747-0154

Lockout Rod .214" Dia. x 32" Lg.

$

$

Not available

54

Cub Cadet 749-0344

Lower Handle-R.H.

$

$

Not available

55

Cub Cadet 749-0343

Lower Handle-L.H.

$

$

Not available

56

Cub Cadet 711-0628

Adjustment Ferrule

$

$

Not available

57

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0623

Hex Wash. Self-Tap Scr. 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 12

0

59

Cub Cadet 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$20.99

$

In Stock, Qty 15

0

60

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0
