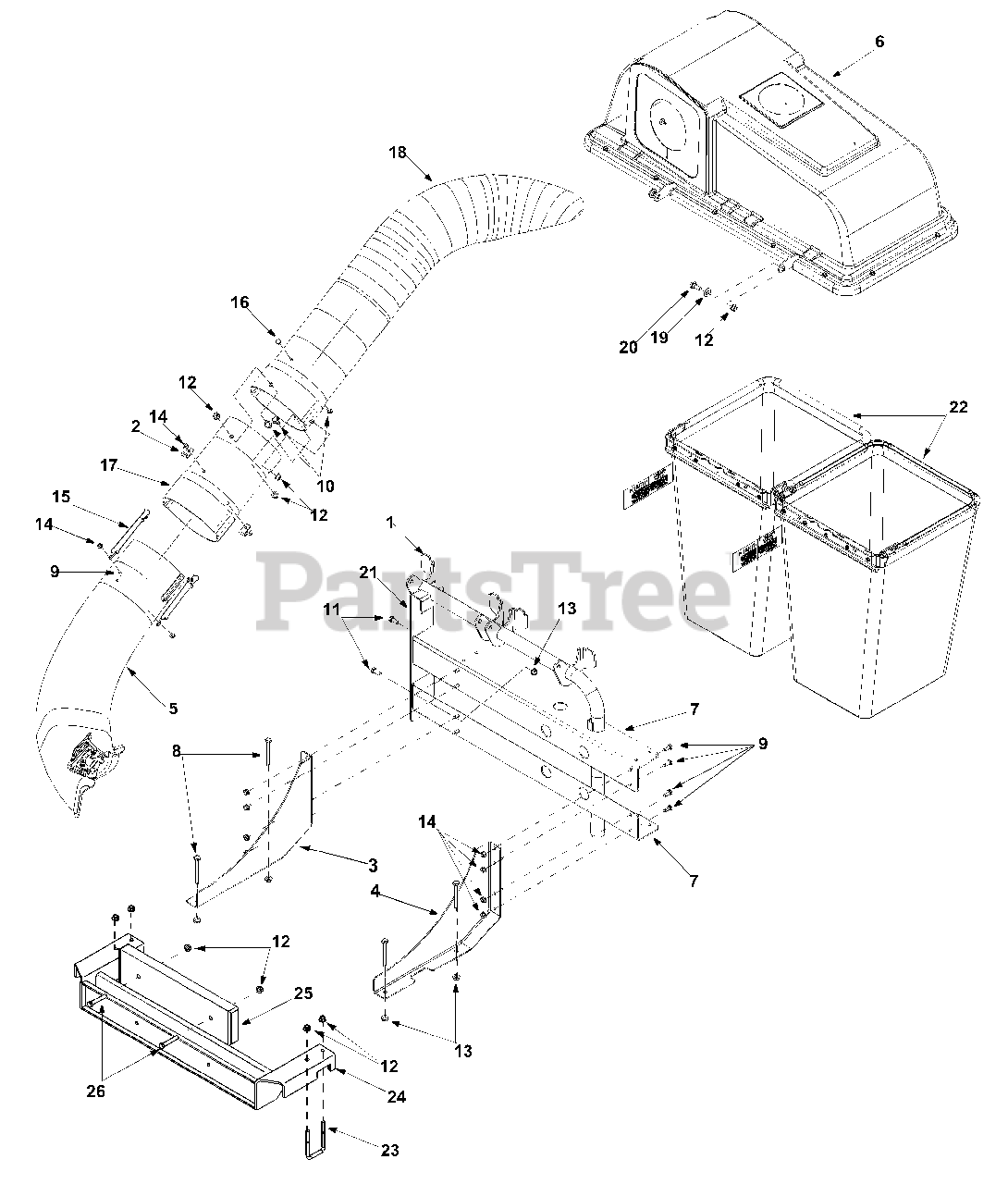

555 (590-555-100) - Cub Cadet Twin Bagger att Twin Grass Bag Assembly Parts Diagram

Twin Bagger

Twin Grass Bag Assembly Parts Diagram

  • Title
1

Cub Cadet 16592

Support Assembly: Grass Catcher Cover

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$157.23

$

Usually ships in 5-10 days

0

$

$

2

Cub Cadet 16606

Retainer Hook Bracket
(Superseded to 96606)

$6.13

$

In Stock, Qty 11

0

3

Cub Cadet 603-04082

Mounting Assembly: RH

Variations

Cub Cadet 603-04082-0637

SUPPORT-RH MOUNTIN - POWDER BLACK (0637)

$97.89

$

Usually ships in 5-10 days

0

$

$

4

Cub Cadet 603-04083

Mounting Assembly: LH

Variations

Cub Cadet 603-04083-0637

SUPPORT-LH MOUNTIN - POWDER BLACK (0637)

$97.89

$

Usually ships in 5-10 days

0

$

$

5

Cub Cadet 731-3319A

Discharge Chute
(Superseded to 731-3319B)

$114.49

$

Usually ships in 5-10 days

0

5

Cub Cadet 738-3174

Screw, Shoulder 3/8 x .625x x 5/16-18

Note: Not Shown, NOT included with 731-3319A

$13.44

$

In Stock, only 1 left!

0

5

Cub Cadet 736-0247

Washer, .410 x 1.255x x.162

Note: Not Shown, NOT included with 731-3319A

$8.05

$

In Stock, Qty 8

0

5

Cub Cadet 932-0334

Spring, Compression

Note: Not Shown, NOT included with 731-3319A

$3.11

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3004A

Nut, Hex Flange Lock

Note: Not Shown, NOT included with 731-3319A

$3.19

$

In Stock, Qty 20+

0

5

Cub Cadet 703-3604

Latch, Chute

Note: Not Shown, NOT included with 731-3319A

$25.44

$

In Stock, only 1 left!

0

5

Cub Cadet 703-3538

Bracket, Chute

Note: Not Shown, NOT included with 731-3319A

$62.16

$

In Stock, only 1 left!

0

6

Cub Cadet 664-04017

Grass Catcher Cover

$

$

Not available

7

Cub Cadet 703-05195

Hanger Bracket

Variations

Cub Cadet 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$101.17

$

Usually ships in 5-10 days

0

$

$

8

Cub Cadet 710-0176

Hex Bolt 5/16-118 x 2.75"

$3.58

$

In Stock, Qty 10

0

9

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .620"

$3.31

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0870

Washer Hd. Hex Bolt 3/8-16 x .625"

$5.02

$

In Stock, only 4 left!

0

11

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75"

$3.43

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$3.97

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.19

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Center Lock Flange Nut
(Superseded to 912-3027)

$3.51

$

In Stock, Qty 20+

0

15

Cub Cadet 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$12.63

$

In Stock, Qty 20+

0

16

$

$

Not available

17

Cub Cadet 731-04312

Discharge Chute

$

$

Not available

18

Cub Cadet 731-3338

Chute Tube

$

$

Not available

19

Cub Cadet 736-0253

Beleville Washer
(Superseded to 936-0253)

$3.27

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0380

Shoulder Screw
(Superseded to 738-0380)

$6.70

$

In Stock, Qty 20+

0

21

Cub Cadet 783-0601

Support Bracket

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$29.91

$

In Stock, only 1 left!

0

$

$

22

Grass Bag

$

$

Not available

22

Cub Cadet 16591A

Bag Frame Hanger Bracket

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$53.03

$

Usually ships in 5-10 days

0

$

$

22

Cub Cadet 710-0473

Screw, #10-24 x .5

$3.56

$

In Stock, Qty 9

0

22

Cub Cadet 712-0272

Hex Sems Nut, 10-24

$3.27

$

Usually ships in 5-10 days

0

22

Cub Cadet 764-0221

Bag
(Superseded to 964-0221)

$65.53

$

In Stock, Qty 20+

0

22

Cub Cadet 749-0701A

Frame Tube for Bag

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$52.76

$

Usually ships in 5-10 days

0

$

$

22

Cub Cadet 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$3.62

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04170

U Bolt 3/8-16 x 1.50"

$18.19

$

Usually ships in 5-10 days

0

24

Cub Cadet 603-04087

Weight Bar Bracket

Variations

Cub Cadet 603-04087-0637

BRACKET ASSY-WEIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 719-04069

Weight Bar
(Superseded to 02002426)

$146.39

$

Usually ships in 5-10 days

0

26

Cub Cadet 710-3011

Hex Bolt 3/8-16 x 2.25"

$5.91

$

In Stock, Qty 20+

0
