555 M (1690900) - Simplicity 22" Snow Thrower, 5hp Peerless Transmission - Model 794 Parts Diagram

22" Snow Thrower, 5hp

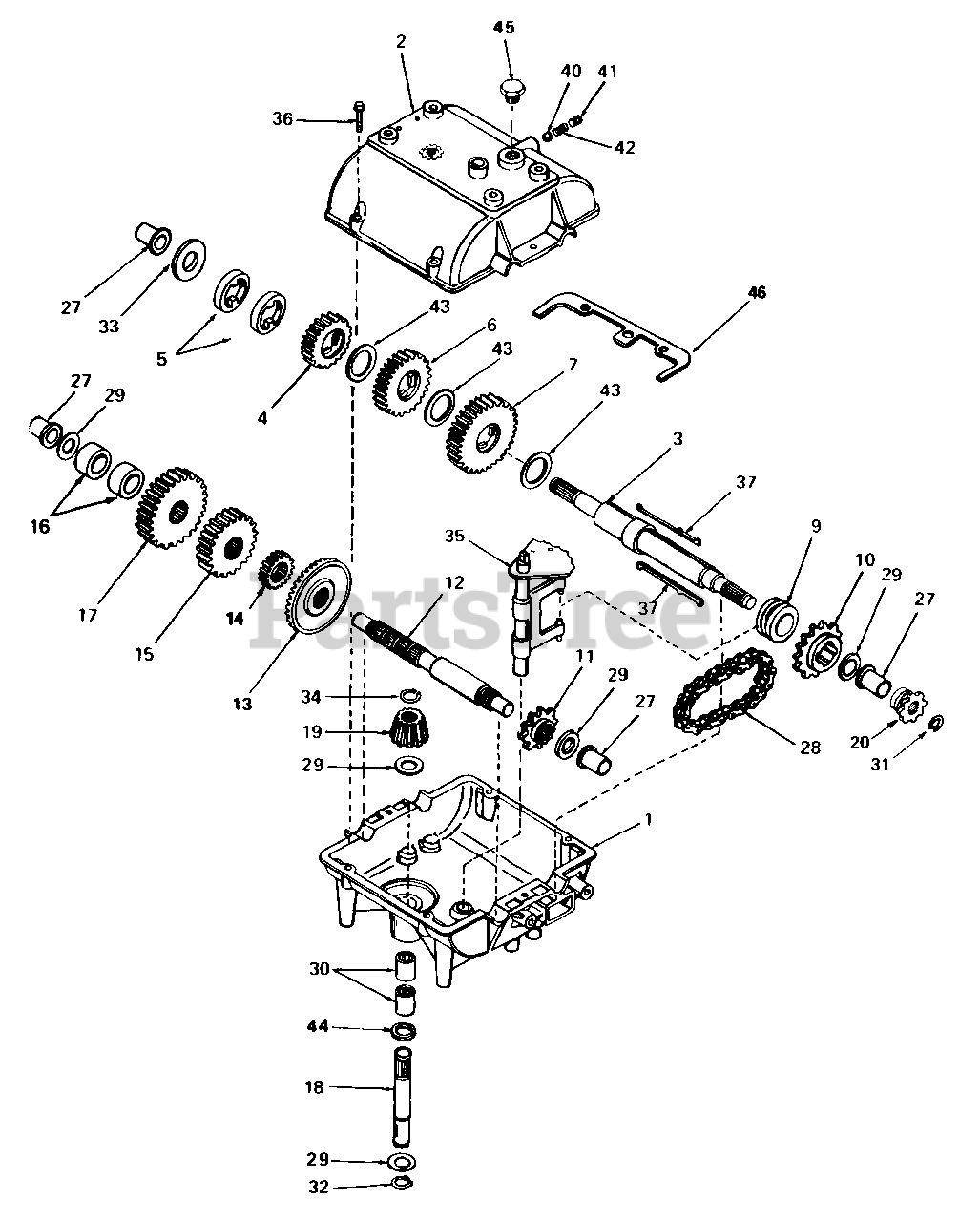

Peerless Transmission - Model 794 Parts Diagram

  • Title

1

Simplicity 770061

CASE, Transmission

$18.99

$

In Stock, only 1 left!

0

2

Simplicity 772083

COVER, Transmission

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 776161

SHAFT, Output & Brake

$453.99

$

Usually ships in 2-12 days

0

4

Simplicity 778123A

GEAR, Spur (25 Teeth)

$

$

Not available

5

Simplicity 786072

SPACER, (1-3/8" O.D. x 1-1/8" I.D. x 3/8" Thick)

$

$

Not available

6

Simplicity 778124A

GEAR, Spur (30 Teeth)

$

$

Not available

7

Simplicity 778146A

GEAR, Spur (37 Teeth)

$

$

Not available

9

Simplicity 784266

COLLAR, Shift

$

$

Not available

10

Simplicity 786060

SPROCKET, (14 Teeth)

$

$

Not available

11

Simplicity 786061

SPROCKET, (10 Teeth)

$

$

Not available

12

Simplicity 776134

SHAFT, Counter

$17.99

$

Usually ships in 2-12 days

0

13

Simplicity 778137A

GEAR, Bevel (42 Teeth)

$

$

Not available

14

Simplicity 778145

GEAR, Spur (12 Teeth)

$

$

Not available

15

Simplicity 778126A

GEAR, Spur (20 Teeth)

$

$

Not available

16

Simplicity 786071

SPACER, (1-1/8" O.D. x 3/4" I.D. x 3/8" Thick)

$

$

Not available

17

Simplicity 778127A

GEAR, Spur (25 Teeth)

$

$

Not available

18

Simplicity 776203

SHAFT, Input

$

$

Not available

19

Simplicity 778113A

BEVEL PINION, input

$

$

Not available

20

Simplicity 786049

SPROCKET (8 Teeth)

$

$

Not available

27

Simplicity 780105A

BUSHING, Flanged

$

$

Not available

28

Simplicity 786062

CHAIN, Roller (No. 41 ChaIN, 22 Links)

$

$

Not available

29

Simplicity 780072

RACE, Thrust

$

$

Not available

30

Simplicity 780086

BEARING, Needle

$

$

Not available

31

Simplicity 792072

RING, Retaining

$172.99

$

Usually ships in 2-12 days

0

32

Simplicity 792035

RING, Retaining

$

$

Not available

33

Simplicity 780139

WASHER

$1.99

$

Usually ships in 2-12 days

0

34

Simplicity 788040

RING, Retaining

$

$

Not available

35

Simplicity 784267

ROD & FORK ASSY., Shift

$

$

Not available

36

Simplicity 792073

SCREW, Hex Hd., Taptite, 1/4-20 x 1-1/4

$61.99

$

In Stock, Qty 7

0

37

Simplicity 792089A

KEY

$

$

Not available

40

Simplicity 792077

BALL, Steel, 5/16"

$

$

Not available

41

Simplicity 792078

SCREW, Set, 3/8-16 x 3/8

$

$

Not available

42

Simplicity 792079

SPRING

$

$

Not available

43

Simplicity 780108

WASHER, Thrust

$4.49

$

Usually ships in 2-12 days

0

44

Simplicity 792001

O RING

$

$

Not available

45

Simplicity 792074

PLUG

$

$

Not available

46

Simplicity 788054

GASKET

$

$

Not available
