555 RXT - Husqvarna Brush Cutter BEVEL GEAR Parts Diagram

Brush Cutter

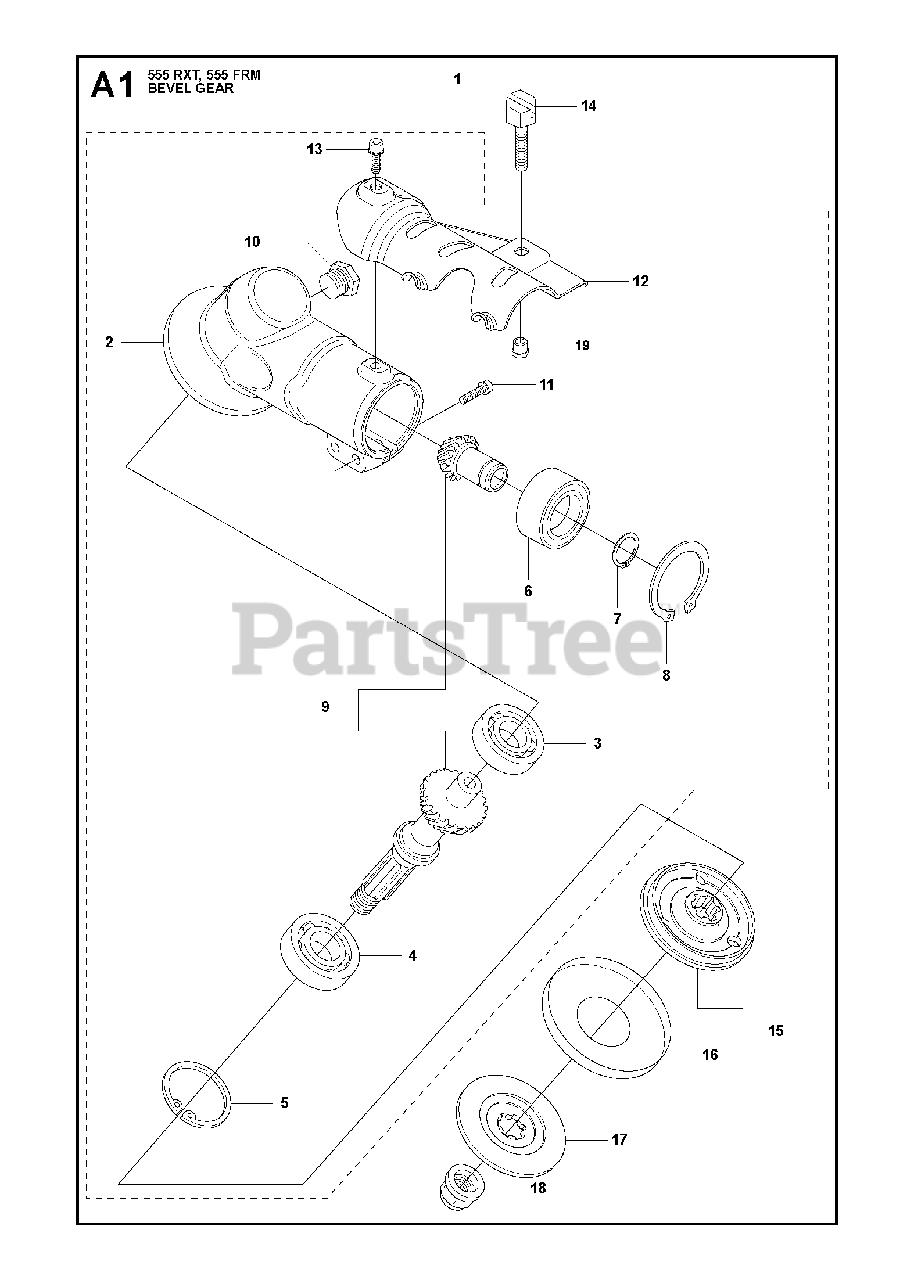

BEVEL GEAR Parts Diagram

  • Title

1

Husqvarna 537428405

BEVEL GEAR SPARE PART

Note: Incl Pos 2-13

$

$

Not available

2

Husqvarna 537428501

GEAR HOUSING
(Superseded to 537428403)

Note: . 1

$682.99

$

Usually ships in 3-10 days

0

3

Husqvarna 738210110

BALL BEARING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503252501

BALL BEARING

Note: . 1

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 735313310

RETAINING RING SGH 35

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503251801

BEARING

Note: . 1

$

$

Not available

7

Husqvarna 735311700

RETAINING RING SGA 15

Note: . 1

$5.99

$

In Stock, Qty 12

0

8

Husqvarna 735313110

RETAINING RING

Note: . 1

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 502434601

BEVEL GEAR
(Superseded to 537428403)

Note: Kit. 1

$682.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503201501

PLUG

Note: . 1

$9.99

$

In Stock, only 2 left!

0

11

Husqvarna 725537265

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501365901

ATTACHMENT PLATE UPPER ASSY

Note: . 1

$

$

Not available

13

Husqvarna 503200776

SCREW

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 537189501

SCREW

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 537351402

CARRIER

Note: Incl Pos 16

$53.99

$

In Stock, only 1 left!

0

16

Husqvarna 537240301

GRASS SEALING

Note: . 15

$21.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$26.99

$

In Stock, only 1 left!

0

18

Husqvarna 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, Qty 9

0

19

Husqvarna 576651801

SPACING SLEEVE
(Superseded to 574404401)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0
