55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) 38" Cutting Deck Assembly Parts Diagram

Lawn Tractor

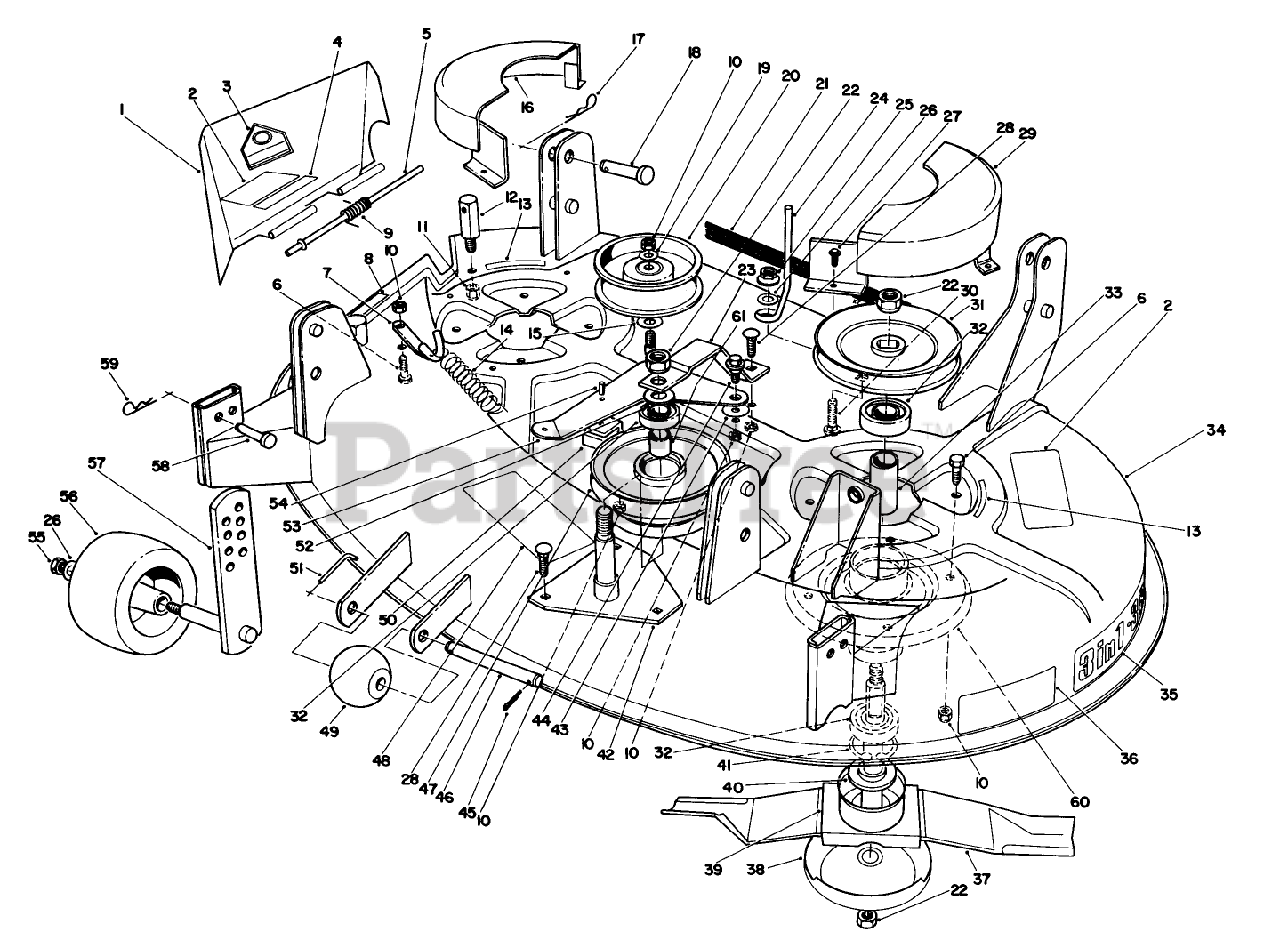

38" Cutting Deck Assembly Parts Diagram

  • Title
1

Toro 68-3320

DISCONTINUED

$

$

Not available

2

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

3

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

4

Toro 36-3400

See Supercession: 93-6687
(Superseded to 93-6687)

$18.99

$

Usually ships in 3-6 days

0

5

Toro 57-4380

ROD-HINGE DEFLECTOR

$42.99

$

Usually ships in 3-6 days

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 57-4510

SPRING ROD

$34.99

$

Usually ships in 3-6 days

0

8

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

9

Toro 57-6950

SPRING

$29.99

$

In Stock, only 2 left!

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

12

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

13

Toro 68-3660

DECAL-DANGER, SHIELD

$14.99

$

In Stock, only 1 left!

0

14

Toro 28-2340

DISCONTINUED

$

$

Not available

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 57-4590

DISCONTINUED

$

$

Not available

17

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

18

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

20

Toro 36-3220

PULLEY-IDLER

$37.99

$

Usually ships in 3-6 days

0

21

Toro 57-4740

V-BELT

$62.99

$

Usually ships in 3-6 days

0

22

Toro 17-0980

NUT-SPECIAL

$12.99

$

In Stock, only 2 left!

0

23

Toro 68-2750

DISCONTINUED

$

$

Not available

24

Toro 68-2380

DISCONTINUED

$

$

Not available

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 57-4600

DISCONTINUED

$

$

Not available

30

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

31

Toro 55-7690

DISCONTINUED

$

$

Not available

32

Toro 251-297

BEARING-BALL

$21.99

$

In Stock, only 4 left!

0

33

Toro 54-0210

See Supercession: 55-7680
(Superseded to 55-7680)

$

$

Not available

34

Toro 13-3919

DISCONTINUED

$

$

Not available

35

Toro 57-4860

DISCONTINUED

$

$

Not available

36

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$

$

Not available

37

Toro 57-4700

See Supercession: 57-4700-03
(Superseded to 57-4700-03)

$39.99

$

In Stock, only 2 left!

0

38

Toro 7-3522

See Supercession: 92-6313
(Superseded to 92-6313)

$56.99

$

In Stock, only 2 left!

0

39

Toro 47-0091

SPINDLE SHAFT WA

$

$

Not available

40

Toro 62-5430

IDLER SPACER

$

$

Not available

41

Toro 32120-11

See Supercession: 32151-75
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 12

0

42

Toro 68-2900

DISCONTINUED

$

$

Not available

43

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 8

0

44

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

45

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 7

0

46

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

47

Toro 68-2990

DISCONTINUED

$

$

Not available

48

Toro 57-7010

DISCONTINUED

$

$

Not available

49

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

50

Toro 57-4680

DISCONTINUED

$

$

Not available

51

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

52

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

53

Toro 68-2770

DISCONTINUED

$

$

Not available

54

Toro 32121-99

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

55

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

56

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

57

Toro 68-2350

GAGE-WHEEL

$

$

Not available

58

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

59

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

60

Toro 60-9670

See Supercession: 79-1050-03
(Superseded to 79-1050-03)

$

$

Not available

61

Toro 68-2740

DISCONTINUED

$

$

Not available
