55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) ENGINE BRIGGS & STRATTON MODEL 281707-0192-01 Parts Diagram

Lawn Tractor

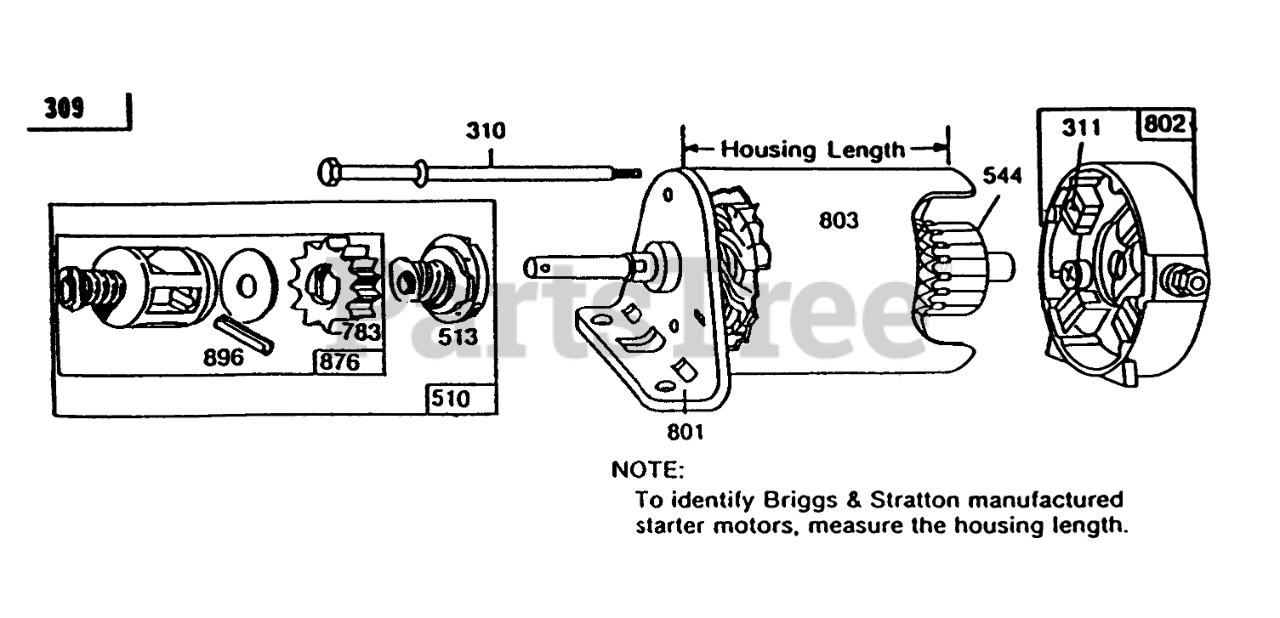

ENGINE BRIGGS & STRATTON MODEL 281707-0192-01 Parts Diagram

  • Title

309

Briggs & Stratton 490420

Starter Motor Ass-y
(Superseded to 795121)

$143.99

$

In Stock, Qty 18

0

310

Briggs & Stratton 94004

Bolt
(Superseded to 691263)

$3.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 490421

Drive Assy.
(Superseded to 696540)

$29.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 391160

Armature Assembly

$

$

Not available

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394857

Drive End Cap Assembly

$56.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$54.99

$

In Stock, only 1 left!

0

803

Briggs & Stratton 394544

Housing Assembly
(Superseded to 494205)

$73.99

$

In Stock, only 1 left!

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$21.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

836

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

876

Briggs & Stratton 490467

Gear Kit
(Superseded to 696540)

$29.99

$

In Stock, only 2 left!

0

896

Briggs & Stratton 94288

Gear
(Superseded to 691641)

$4.99

$

In Stock, only 1 left!

0
