55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) Seat Assembly Parts Diagram

Lawn Tractor

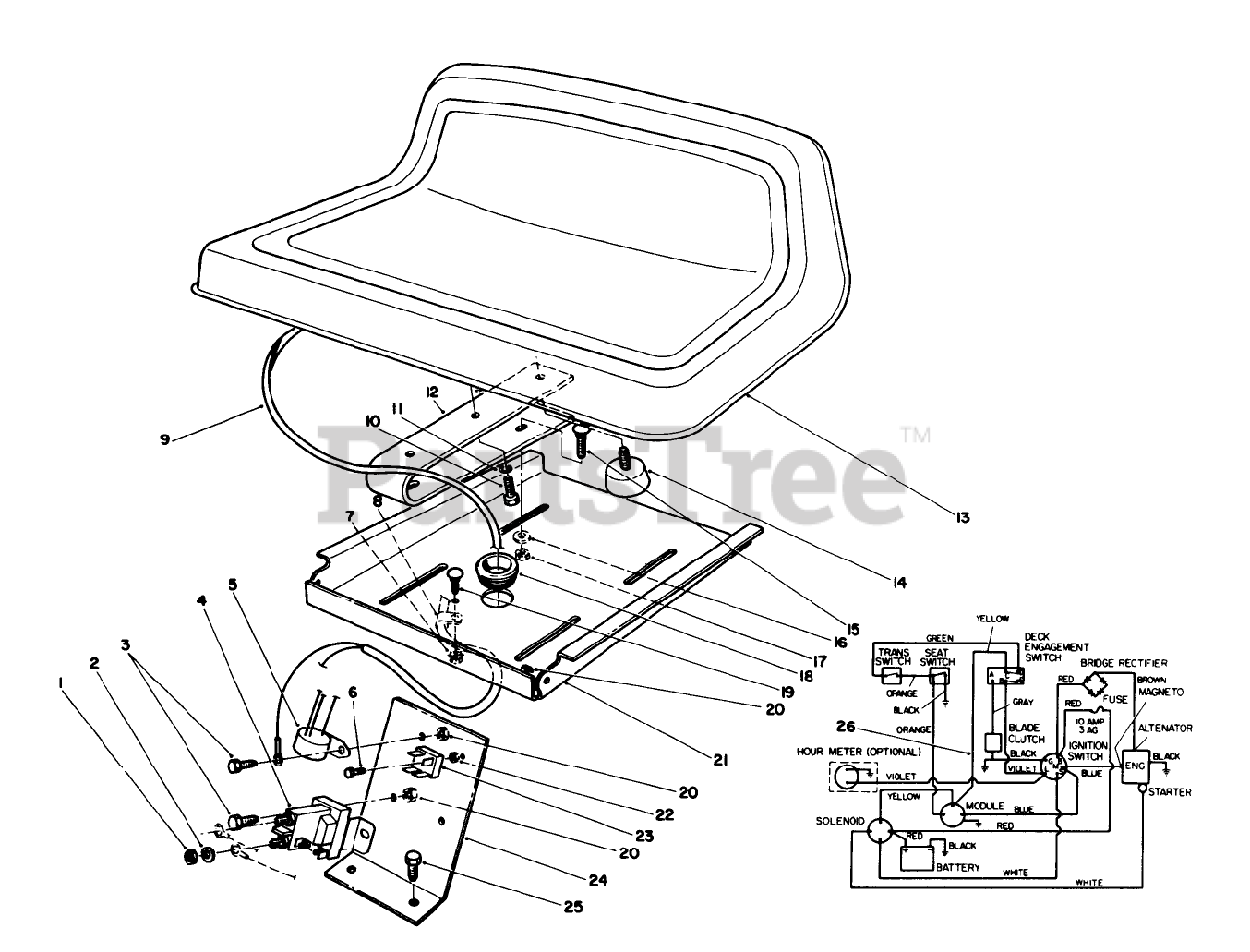

Seat Assembly Parts Diagram

  • Title

1

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-1910

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

5

Toro 68-2940

MODULE BRIGGS

$

$

Not available

6

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

9

Toro 38-1420

SWITCH-SEAT

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro 68-3280

See Supercession: 68-3280-01
(Superseded to 68-3280-01)

$

$

Not available

13

Toro 38-0840

SEAT

$

$

Not available

14

Toro 68-3270

BUMPER-RUBBER

$43.99

$

Usually ships in 3-6 days

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

19

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 68-1890

DISCONTINUED

$

$

Not available

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

23

Toro 37-7600

RECTIFIER-BRIDGE

$28.99

$

Usually ships in 3-6 days

0

24

Toro 68-2110

DISCONTINUED

$

$

Not available

25

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

26

Toro 68-3190

DISCONTINUED

$

$

Not available
