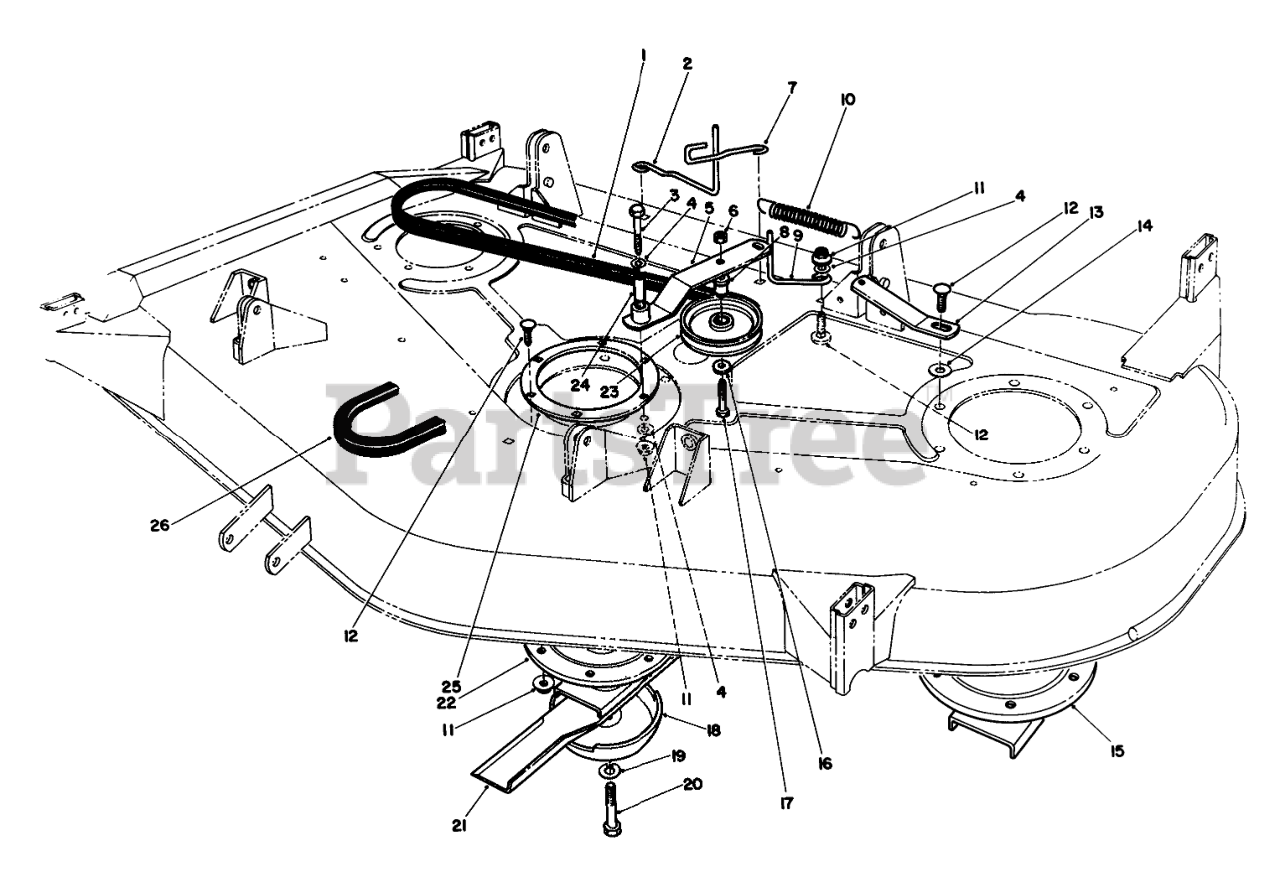

55660 - Toro 44" Side-Discharge Mower Deck (1990) 52" CUTTING DECK MODEL NO. 55670 (OPTIONAL) Parts Diagram

44" Side-Discharge Mower Deck

52" CUTTING DECK MODEL NO. 55670 (OPTIONAL) Parts Diagram

  • Title

1

Toro 27-1160

V-BELT

$59.99

$

In Stock, Qty 8

0

2

Toro 68-2390

BELT ROD

$

$

Not available

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 55-7640

Arm-Idler
(Superseded to 55-7640-03)

$135.99

$

In Stock, only 2 left!

0

6

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

7

Toro 55-7620

GUIDE-BELT

$

$

Not available

8

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 11

0

9

Toro 68-2380

BELT ROD

$

$

Not available

10

Toro 51-3650

SPRING-EXTENSION

$25.99

$

In Stock, Qty 5

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 55-7650

PLATE-SPRING

$25.99

$

In Stock, Qty 9

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 27-0870

SPINDLE ASM

$580.99

$

Usually ships in 3-6 days

0

16

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 10

0

17

Toro 55-7630

Bolt-Special
(Superseded to 321-18)

$2.49

$

In Stock, Qty 20+

0

18

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$44.99

$

In Stock, only 2 left!

0

19

Toro 3253-27

WASHER-LOCK

$3.49

$

In Stock, Qty 6

0

20

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, only 3 left!

0

21

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$21.99

$

In Stock, Qty 20+

0

22

Toro 54-7781

HOUSING - SPINDLE ASM

$1117.99

$

Usually ships in 3-6 days

0

23

Toro 65-5940

PULLEY-IDLER

$40.99

$

In Stock, only 3 left!

0

24

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

25

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$91.99

$

Usually ships in 3-6 days

0

26

Toro 68-2960

V-BELT, 52" DECK

$183.99

$

Usually ships in 3-6 days

0
