559 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

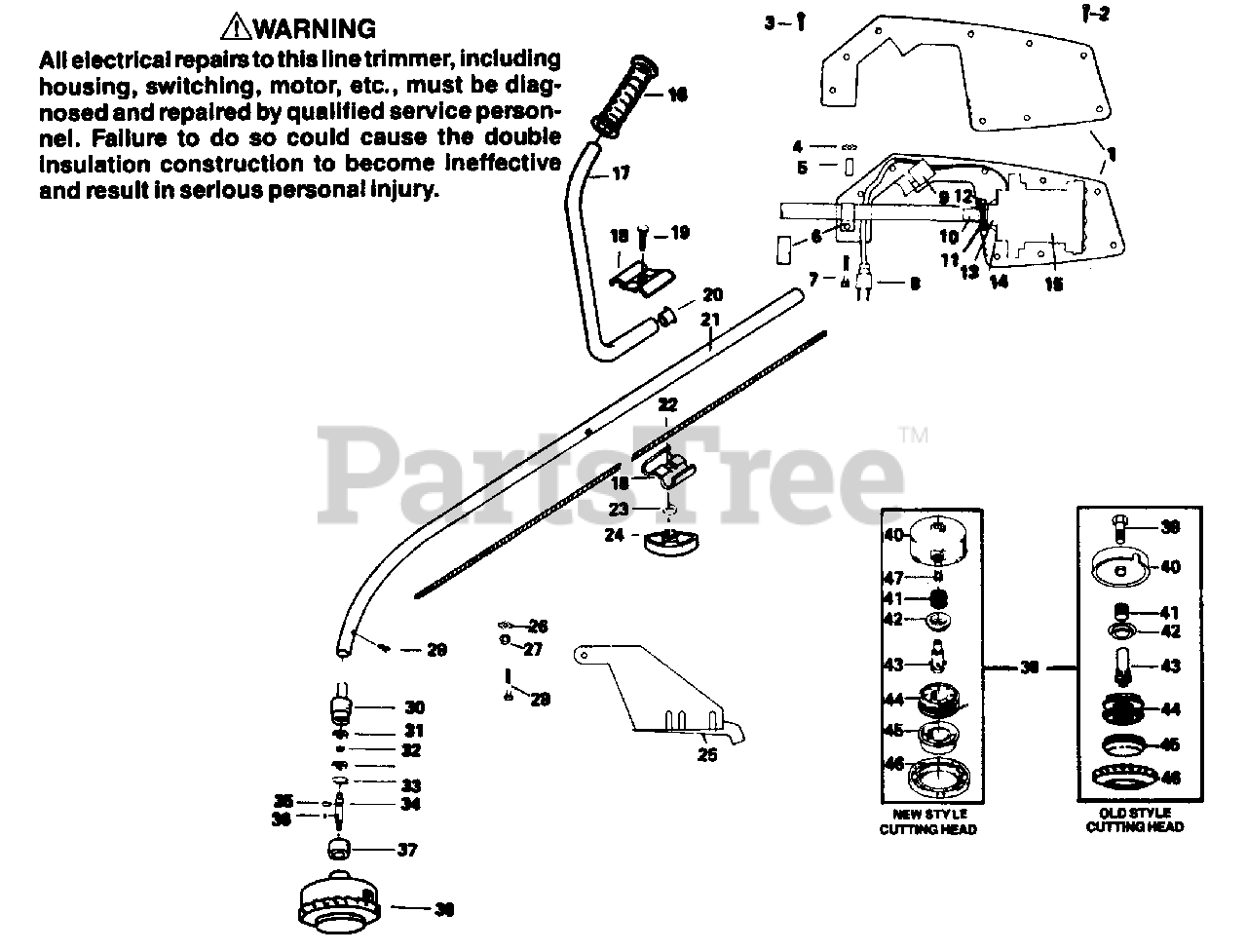

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530092678

Motor Housing Set

$

$

Not available

2

Poulan 530092679

Screw

$

$

Not available

3

Poulan 530090827

Screw

$

$

Not available

4

Poulan 530092049

Wing Nut

$

$

Not available

5

Poulan 530092681

Tube Clamp Bushing

$

$

Not available

6

Poulan 530092682

Clamp

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530092683

Screw

$

$

Not available

8

Poulan 530093856

Power Cord

$

$

Not available

9

Poulan 530090824

Switch

$

$

Not available

10

Poulan 530092684

Drive Coupling

$

$

Not available

11

Poulan 530092685

Collar

$

$

Not available

12

Poulan 530092686

Screw

$

$

Not available

13

Poulan 530092687

Lube Connector

$

$

Not available

14

Poulan 530092688

Screw

$

$

Not available

15

Poulan 530092689

Motor Assembly

$

$

Not available

16

Poulan 530091402

Grip

$

$

Not available

17

Poulan 530091802

Handle Bar

$

$

Not available

18

Poulan 530091338

Clamp

$

$

Not available

19

Poulan 530091342

Bolt

$

$

Not available

20

Poulan 530091816

Handle Bar Plug

$

$

Not available

21

Poulan 530091301

Drive Shaft Housing

$

$

Not available

22

Poulan 530092261

Drive Shaft

$24.99

$

Usually ships in 3-10 days

0

23

Poulan 530091341

Washer

$

$

Not available

24

Poulan 530091339

Knob

$

$

Not available

25

Poulan 530091979

Shield

$

$

Not available

26

Poulan 530092049

Wing Nut

$

$

Not available

27

Poulan 530092062

Flat Washer

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530092061

Bolt

$

$

Not available

29

Poulan 530015518

Screw

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530091315

Bearing Housing

$

$

Not available

31

Poulan 530091316

Bearing

$

$

Not available

32

Poulan 530091317

Spacer

$

$

Not available

33

Poulan 530092692

Retaining Ring

$

$

Not available

34

Poulan 530091319

Arbor Shaft

$

$

Not available

35

Poulan 530091318

Retaining Ring

$

$

Not available

36

Poulan 530091322

Woodruff Key

$

$

Not available

37

Poulan 530091323

Dust Cover

$

$

Not available

38

Poulan 530093894

Cutting Head Assembly New Style

$19.99

$

Usually ships in 3-10 days

0

38

Cutting Head Assembly Old Style

$

$

Not available

39

Poulan 530092064

Bolt - Drive Adaptor - Old Style

$10.99

$

Usually ships in 3-10 days

0

40

Poulan 530092131

Hub w/Line Savers - Old Style

$

$

Not available

40

Poulan 530093896

Hub w/Line Savers - New Style
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

41

Poulan 530092067

Coil Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530092068

Coil Spring Adaptor
(Superseded to 530328929)

$

$

Not available

43

Poulan 530092069

Drive Gear Old Style

$

$

Not available

43

Poulan 530093897

Drive Gear New Style

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 952701523

Spool, Wound

$

$

Not available

45

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

46

Poulan 530092133

Cover

$

$

Not available

47

Poulan 530093898

Line Saver - New Style only

$4.99

$

Usually ships in 3-10 days

0
