56 CS (954069001-A) - Husqvarna Walk-Behind Mower (1994-01) REPAIR PARTS Parts Diagram

Walk-Behind Mower

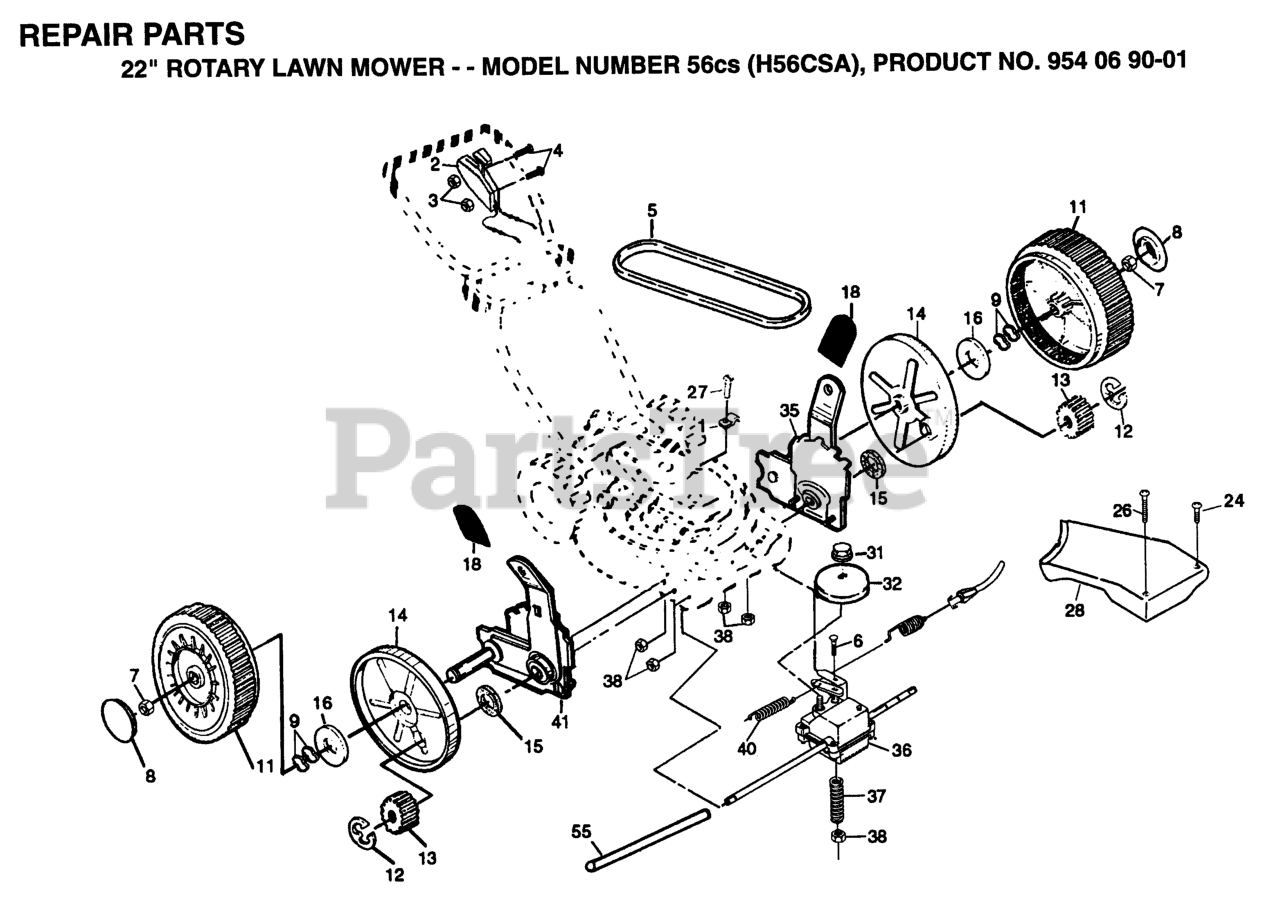

REPAIR PARTS Parts Diagram

  • Title

28

Husqvarna 532700599

DRIVE COVER

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532075192

SPRING

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532087866

SCREW PM

$

$

Not available

3

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532087930

GUIDE CLIP PM

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

38

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 532137054

PINION GEAR

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532077400

CAP.HUB.BLACK.WALK

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532136797

SCREW
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532137078

BELT DRIVE
(Superseded to 532157769)

$14.99

$

In Stock, Qty 7

0

15

Husqvarna 532088118

WASHER

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

11

Husqvarna 532143596

WHEEL ASSEMBLY

$35.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532085692

SCREW**
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532700875

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 532137052

PULLEY
(Superseded to 532194126)

$

$

Not available

14

Husqvarna 532088080

DUST SHROUD PM
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0
