56 DHS (954069101-A) - Husqvarna Walk-Behind Mower (1994-01) Gear Case Assembly P/N 532702510 - 53702511 Parts Diagram

Walk-Behind Mower

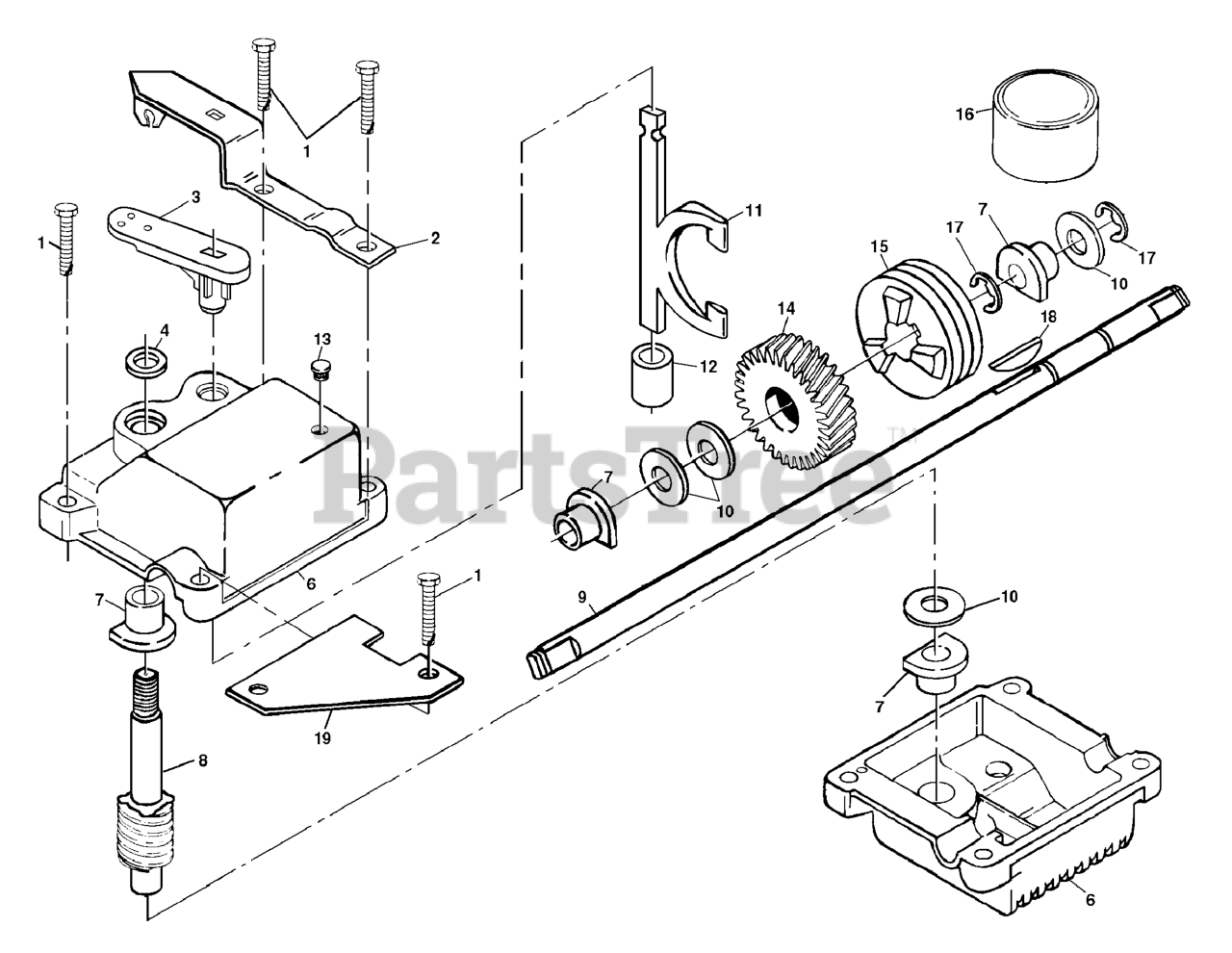

Gear Case Assembly P/N 532702510 - 53702511 Parts Diagram

  • Title

1

Husqvarna 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

2

Husqvarna 532140269

BRACKET
(Superseded to 532137055)

$

$

Not available

3

Husqvarna 532137053

SHIFTER

$

$

Not available

4

Husqvarna 532057072

SEAL

$

$

Not available

6

Husqvarna 532048373

GEAR CASE

Note: (Includes Key Nos. 4, and 7)

$

$

Not available

7

Husqvarna 532077881

BEARING

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532137051

WORM SHAFT
(Superseded to 532183863)

$

$

Not available

9

Husqvarna 532137074

DRIVE SHAFT, 20-5/8"

$

$

Not available

9

Husqvarna 532137077

DRIVE SHAFT, 21-1/16"

$

$

Not available

10

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 13

0

11

Husqvarna 532131484

YOKE.VIBRATORY FINISH.

$

$

Not available

12

Husqvarna 532700343

BUSHING

$

$

Not available

13

Husqvarna 532086447

PLUG.AUGER.GEAR.BOX.SNOW

$

$

Not available

14

Husqvarna 532137050

GEAR.HELICAL

$46.99

$

In Stock, only 2 left!

0

15

Husqvarna 532750436

CLUTCH JAW

$

$

Not available

16

Husqvarna 532750369

GREASE
(Superseded to 585517301)

$

$

Not available

17

Husqvarna 812000003

E-RING

$

$

Not available

18

Husqvarna 532850848

HI PRO KEY

$

$

Not available

19

Husqvarna 532125441

BRACKET SPRING

$

$

Not available

Husqvarna 532702510

KIT GEAR CASE .22SD

$

$

Not available

Husqvarna 537025110

Gear Case Assembly

$

$

Currently unavailable
