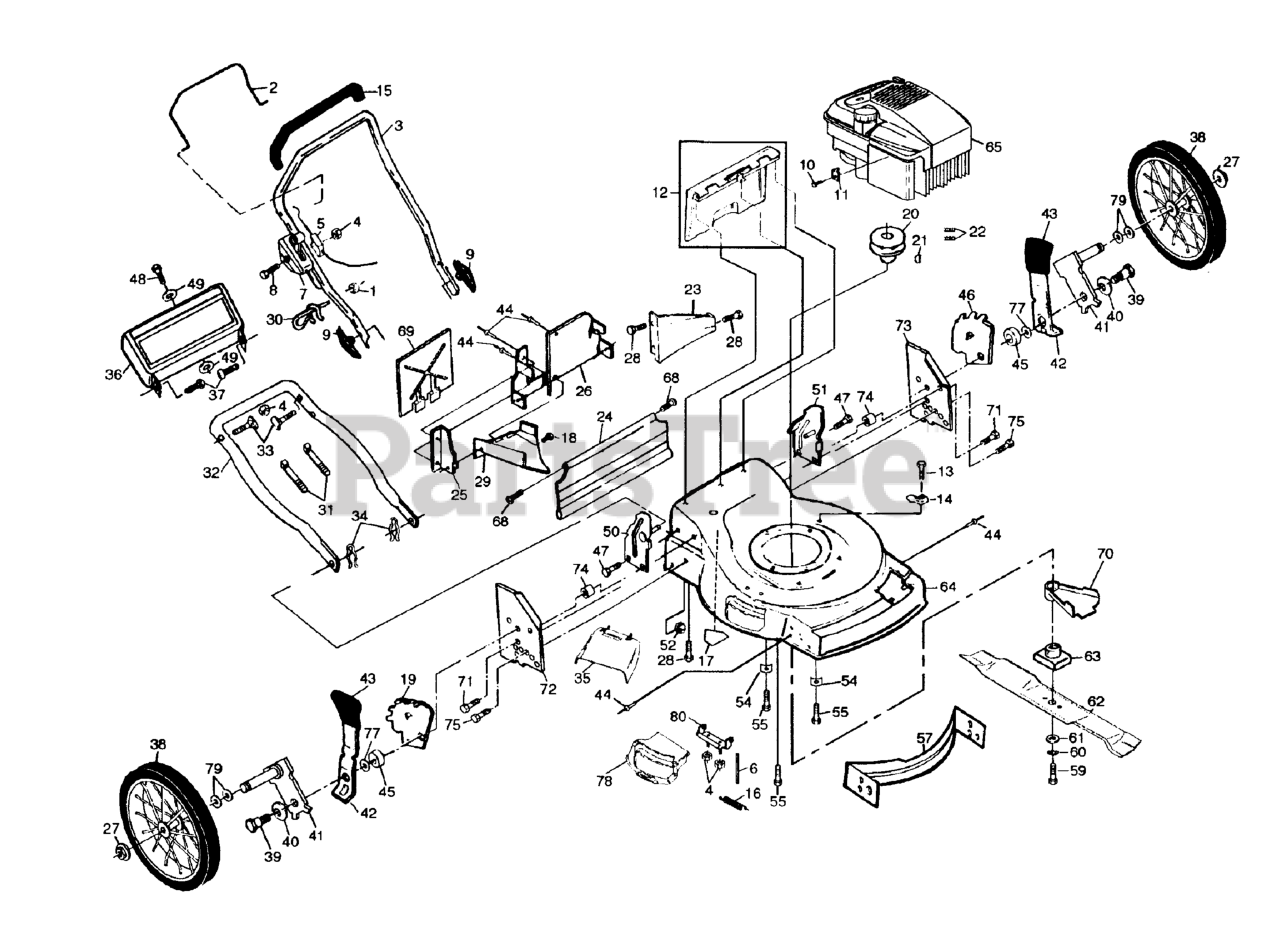

56 HS (954077201-A) - Husqvarna Walk-Behind Mower (1995-10) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532146900

BAIL.CONTROL.WIRE.STD.COMF.BLK

$

$

Not available

3

Husqvarna 532150041

UPPER HANDLE
(Superseded to 532166268)

$

$

Not available

4

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

6

Husqvarna 532147286

ROD.HINGE.COMBI-C

$9.49

$

In Stock, Qty 13

0

7

Husqvarna 532700417

THROTTLE CONTROL

$20.99

$

In Stock, only 2 left!

0

8

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

10

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

11

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

12

Husqvarna 532147612

REAR DOOR ASSEMBLY

$

$

Not available

13

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532087930

GUIDE CLIP PM

$

$

Not available

15

Husqvarna 532850724

HANDLE GRIP
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532145286

HINGE SPRING
(Superseded to 532152186)

$

$

Not available

17

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532142843

WHEEL ADJ BRKT RR-LF

$

$

Not available

20

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 1 left!

0

21

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

22

Husqvarna 532059708

SCREW

$

$

Not available

23

Husqvarna 532125348

REAR BAFFLE
(Superseded to 532133040)

$

$

Not available

24

Husqvarna 532140540

REAR SKIRT
(Superseded to 532413160)

$13.99

$

In Stock, Qty 9

0

25

Husqvarna 532138860

SIDE BAFFLE

$

$

Not available

26

Husqvarna 532139734

BACK PLATE
(Superseded to 532700360)

$

$

Not available

27

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

28

Husqvarna 532054583

SCREW

$

$

Not available

29

Husqvarna 532125376

DISCHARGE BAFFLE
(Superseded to 532133190)

$

$

Not available

30

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

31

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532125160

HANDLE.LOWER.STD.PNT.BLK
(Superseded to 532157081)

$

$

Not available

33

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

34

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

35

Husqvarna 532150653

CLIP-ON DISCHARGE
(Superseded to 532145285)

$

$

Not available

36

Husqvarna 532800547

TRIM PLATE

$

$

Not available

37

Husqvarna 532036953

SCREW

$

$

Not available

38

Husqvarna 532088017

WHEEL TIRE PM
(Superseded to 532752063)

$

$

Not available

39

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

40

Husqvarna 532061651

WASHER
(Superseded to 532401630)

$4.99

$

In Stock, Qty 8

0

41

Husqvarna 532125323

AXLE ARM ASSEMBLY (REAR)
(Superseded to 532751333)

$

$

Not available

42

Husqvarna 532125066

SELECTOR SPRING

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

44

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532142842

WHEEL ADJ BRKT RF-LR

$

$

Not available

47

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 532085436

SCREW
(Superseded to 874760424)

$

$

Not available

49

Husqvarna 532085723

WASHER PM

$

$

Not available

50

Husqvarna 532151943

HANDLE BRACKET(RIGHT)
(Superseded to 532150958)

$

$

Not available

51

Husqvarna 532151944

HANDLE BRACKET(LEFT)
(Superseded to 532150958)

$

$

Not available

52

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

54

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

55

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

57

Husqvarna 532125345

FRONT BAFFLE
(Superseded to 532170557)

$

$

Not available

59

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532141114

BLADE 22"

$28.99

$

In Stock, only 3 left!

0

63

Husqvarna 532851514

BLADE ADAPTOR

$20.99

$

In Stock, Qty 17

0

64

Husqvarna 532151008

HOUSING KIT, LAWNMOWER
(Superseded to 532170573)

$

$

Not available

65

Engine

Note: (See Breakdown)

$

$

Not available

68

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

69

Husqvarna 532125368

MULCHER PLATE
(Superseded to 532166649)

$

$

Not available

70

Husqvarna 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

71

Husqvarna 532149588

SCREW

$

$

Not available

72

Husqvarna 532151947

BRACKET.SUPPORT.RT.BLACK

$

$

Not available

73

Husqvarna 532151949

BRACKET SUPPORT LH
(Superseded to 532700172)

$

$

Not available

74

Husqvarna 532086969

SPACER

$

$

Not available

75

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 12

0

77

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 16

0

78

Husqvarna 532150654

COMBI-CUT DOOR

$

$

Not available

79

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$5.99

$

In Stock, only 2 left!

0

80

Husqvarna 532147775

BRACKET.HINGE ASM.W/FIN

$

$

Not available

Husqvarna 532151007

OPER MANUAL 56HS NLA

$

$

Not available

Husqvarna 532150993

DECAL (HOUSING)

$

$

Not available

Husqvarna 532150992

DECAL (COMBI-CUT DOOR)

$

$

Not available

Husqvarna 532150321

NAMEPLATE HUSQVARNA

$

$

Not available
