56 HS (954140039-A) - Husqvarna Walk-Behind Mower (1996-10) Repair Parts (B) Parts Diagram

Walk-Behind Mower

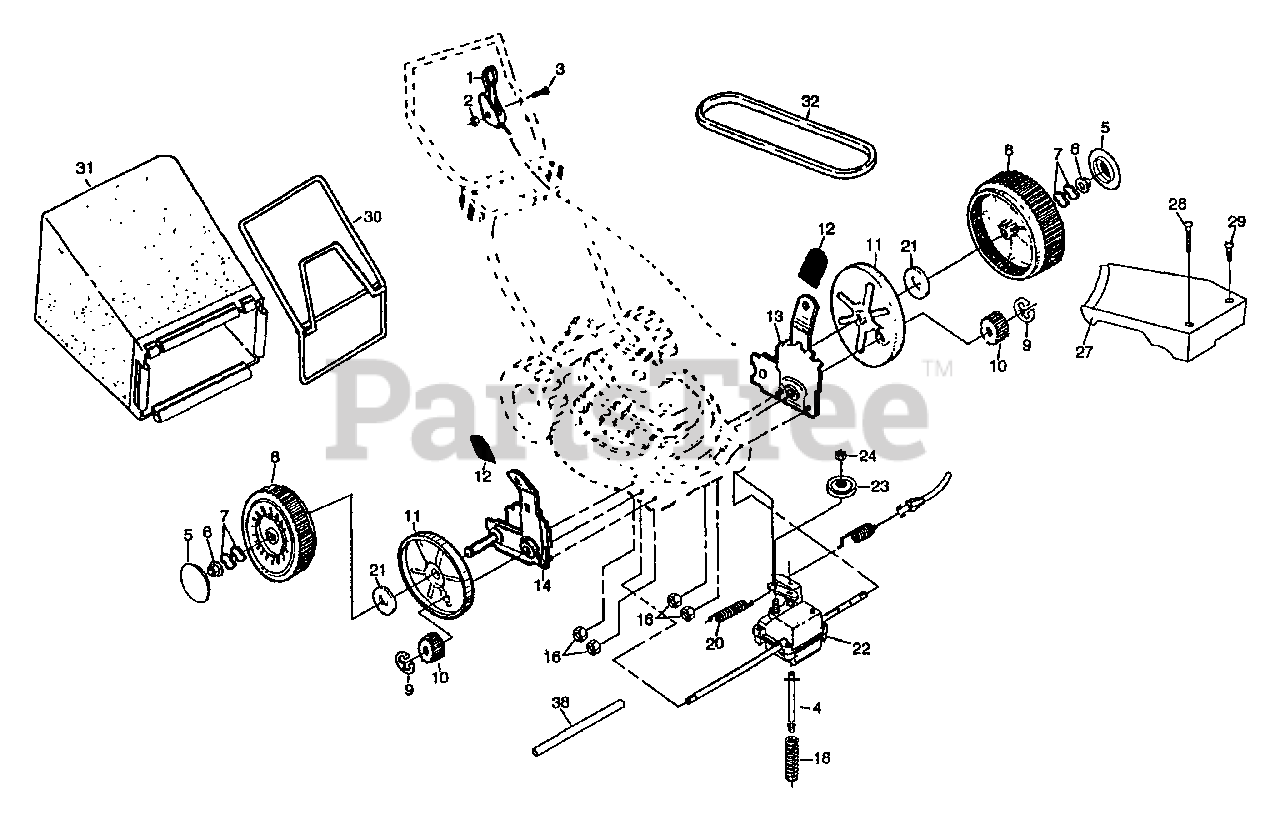

Repair Parts (B) Parts Diagram

  • Title

1

Husqvarna 532146323

Drive Control
(Superseded to 532184588)

$53.99

$

In Stock, only 2 left!

0

2

Husqvarna 532063601

Locknut #10-24
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532144929

Pan Head Machine Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

4

Husqvarna 532150495

Spring Retainer

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532157008

Hubcap

$

$

Not available

6

Husqvarna 532145212

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532801156

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

9

Husqvarna 812000058

E-ring

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532137054

Pinion

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532088080

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532151009

Wheel Adjuster Assembly (Left)

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532151010

Wheel Adjuster Assembly (Right)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532063601

Locknut
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532137090

Spring

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532702511

Gear Case Assembly
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137052

Drive Pulley
(Superseded to 532194126)

$

$

Not available

24

Husqvarna 532132010

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532700479

Drive Cover

$

$

Not available

28

Husqvarna 512146072

Pan Head Tapping Screw #10-24 x 2-3/4

$

$

Currently unavailable

29

Husqvarna 532149746

Pan Head Tapping Screw #10-24 x 1-3/4

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 532088614

Catcher Frame

$54.99

$

In Stock, only 1 left!

0

31

Husqvarna 532800386

Grass Bag
(Superseded to 532134048)

$

$

Not available

32

Husqvarna 532146527

V-Belt
(Superseded to 532157769)

$14.99

$

In Stock, Qty 7

0

38

Husqvarna 532086012

Drive Shaft Cover

$

$

Not available

Husqvarna 532150994

Drive Cover Decal

$

$

Not available
