56 SF (954050821-C) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View A) Parts Diagram

Walk-Behind Mower

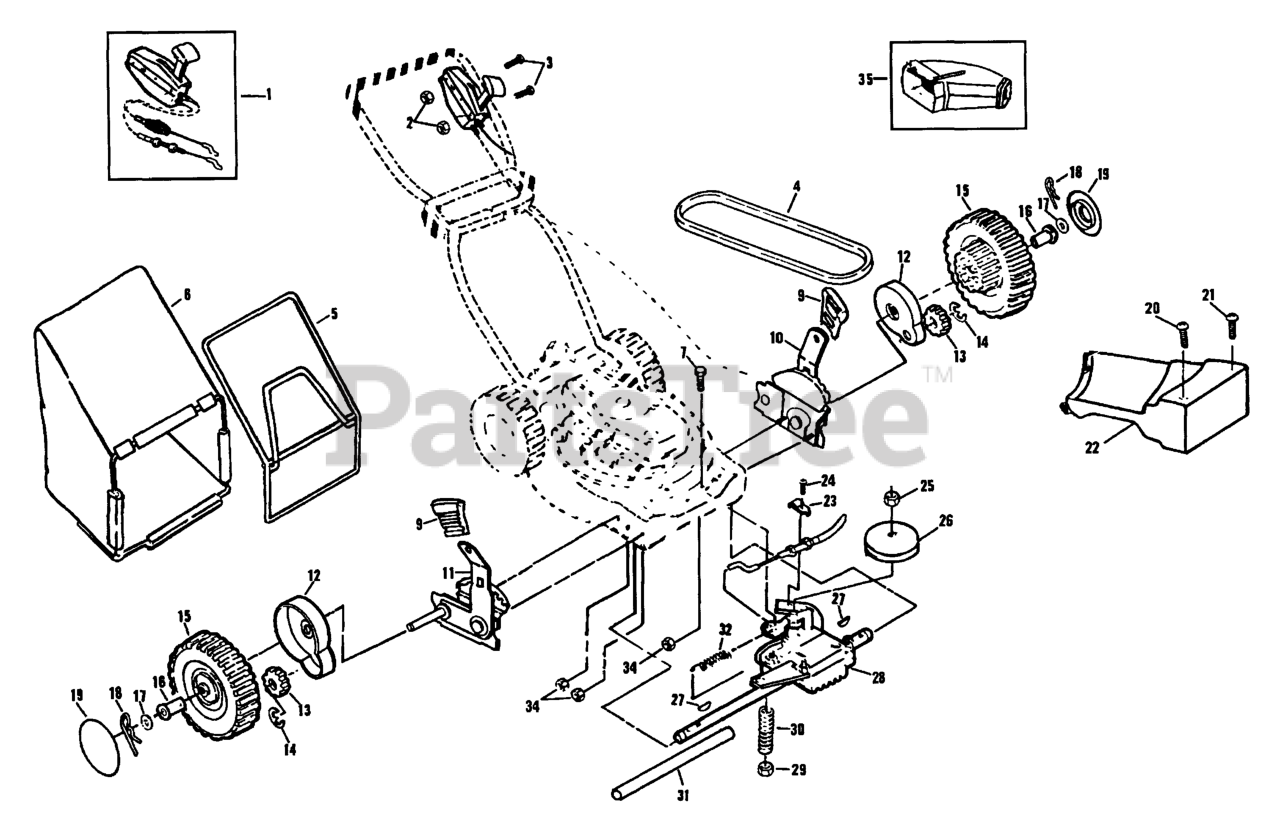

22" Rotary Lawn Mower (View A) Parts Diagram

  • Title

1

Husqvarna 532133046

CONTROL.DRIVE.DUAL.HEAD.BOWDEN

$

$

Not available

2

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532085692

SCREW**
(Superseded to 874250434)

$

$

Not available

4

Husqvarna 532083691

V BELT

$

$

Not available

5

Husqvarna 532800393

CATCHER FRAME
(Superseded to 532088614)

$

$

Not available

6

Husqvarna 532800386

GRASS BAG
(Superseded to 532134048)

$

$

Not available

7

Husqvarna 874760444

REPL BY 874 78 04-44
(Superseded to 874780444)

$

$

Not available

9

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 532800363

WHL ADI LH

$

$

Not available

11

Husqvarna 532800366

WHL ADJ RH

$

$

Not available

12

Husqvarna 532076401

DUST COVER

$

$

Not available

13

Husqvarna 532074507

PINION.10.TEETH

$

$

Not available

14

Husqvarna 812000003

E-RING

$

$

Not available

15

Husqvarna 532086954

WHEEL TIRE PM
(Superseded to 532702236)

$

$

Not available

16

Husqvarna 532086960

BUSHING.1.860 X .505.

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

18

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

19

Husqvarna 532850844

HUBCAP

$

$

Not available

20

Husqvarna 532075725

SCREW

$

$

Not available

21

Husqvarna 874981028

Pan Head Machine Screw #10-24 x 1-3/4

$

$

Not available

22

Husqvarna 532135503

DRIVE COVER
(Superseded to 532700479)

$

$

Not available

23

Husqvarna 532083700

CABLE CLAMP

$

$

Not available

24

Husqvarna 532750108

SCREW WASHER HD

$

$

Not available

25

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

26

Husqvarna 532131482

DRIVE PULLEY

$

$

Not available

27

Husqvarna 532065692

WOODRUFF KEY

$

$

Not available

28

Husqvarna 532132232

GEARCASE KIT
(Superseded to 532048281)

$

$

Not available

29

Husqvarna 532068038

NUT **
(Superseded to 873850400)

$

$

Not available

30

Husqvarna 532083632

SPRING
(Superseded to 532137090)

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

32

Husqvarna 532075192

SPRING

$

$

Not available

34

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

35

(MA35) Clipping Deflector

Note: (Not Included with Lawn Mower)

$

$

Not available

Husqvarna 532131841

DECAL (DRIVE COVER)

$

$

Not available
