56 SF (954050821-C) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View B) Parts Diagram

Walk-Behind Mower

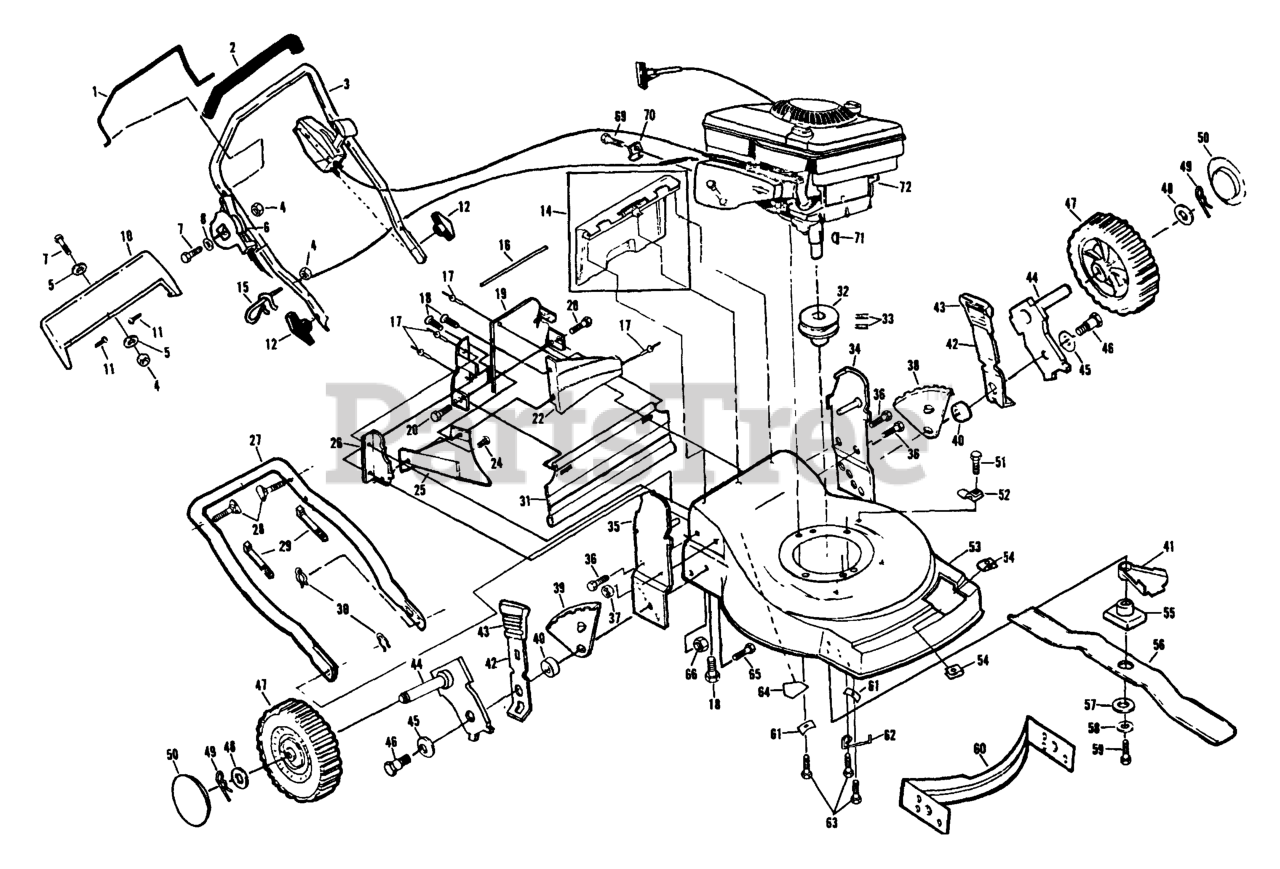

22" Rotary Lawn Mower (View B) Parts Diagram

  • Title

1

Husqvarna 532131095

CONTROL BAR
(Superseded to 532131094)

$

$

Not available

2

Husqvarna 532850724

HANDLE GRIP
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532125294

UPPER HANDLE
(Superseded to 532800327)

$

$

Not available

4

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$9.99

$

In Stock, Qty 9

0

6

Husqvarna 532132536

THROTTLE CONTROL
(Superseded to 532700417)

$20.99

$

In Stock, only 2 left!

0

7

Husqvarna 532085436

SCREW
(Superseded to 874760424)

$

$

Not available

8

Husqvarna 532085723

WASHER PM

$

$

Not available

10

Husqvarna 532800547

TRIM PLATE

$

$

Not available

11

Husqvarna 532036953

SCREW

$

$

Not available

12

Husqvarna 532063688

KNOB HANDLE
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532129460

REAR DOOR ASM (INCL KEY #16)

Note: (Includes Key. No. 16)

$

$

Not available

15

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

16

Husqvarna 532750328

HINGE ROD

$

$

Not available

17

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532054583

SCREW

$

$

Not available

19

Husqvarna 532125362

BACK PLATE

$

$

Not available

20

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

22

Husqvarna 532125348

REAR BAFFLE
(Superseded to 532133040)

$

$

Not available

24

Husqvarna 532086344

SCREW PM

$

$

Not available

25

Husqvarna 532125346

BACK PLATE

$

$

Not available

26

Husqvarna 532125347

SIDE BAFFLE

$

$

Not available

27

Husqvarna 532125293

HANDLE, LOWER PM
(Superseded to 532157081)

$

$

Not available

28

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

29

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

31

Husqvarna 532128796

REAR DEFLECTOR
(Superseded to 532413160)

$13.99

$

In Stock, Qty 9

0

32

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 1 left!

0

33

Husqvarna 532059708

SCREW

$

$

Not available

34

Husqvarna 532125186

BRACKET HANDLE LH

$

$

Not available

35

Husqvarna 532125187

BRACKET HANDLE RH

$

$

Not available

36

Husqvarna 532055187

SCREW
(Superseded to 817000512)

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

38

Husqvarna 532800370

WHL ADJ BRKT RF/LR
(Superseded to 532140058)

$

$

Not available

39

Husqvarna 532800368

WHL ADJ BRKT LF/RR

$

$

Not available

40

Husqvarna 532084920

SPACER PM
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

42

Husqvarna 532125066

SELECTOR SPRING

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

44

Husqvarna 532125061

AXLE ARM ASSY FT
(Superseded to 532800754)

$

$

Not available

45

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$

$

Not available

46

Husqvarna 532084921

SHOULDER BOLT PM
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

47

Husqvarna 532850847

WHEEL & TIRE ASSY 9.0X2.0 NLA

$

$

Not available

48

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

49

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

50

Husqvarna 532850845

HUB CAP

$

$

Not available

51

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 532087930

GUIDE CLIP PM

$

$

Not available

53

Husqvarna 532135294

HOUSING ASSY

Note: (Includes Key No. 64)

$

$

Not available

54

Husqvarna 532075449

SPEED NUT U-TYPE

$

$

Not available

55

Husqvarna 532851514

BLADE ADAPTOR

$20.99

$

In Stock, Qty 17

0

56

Husqvarna 532850973

22" Blade
(Superseded to 532406713)

$28.99

$

In Stock, Qty 20+

0

57

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532125345

FRONT BAFFLE
(Superseded to 532170557)

$

$

Not available

61

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

62

Husqvarna 532135030

RETAINER RING DEBRIS SHIELD

$

$

Not available

63

Husqvarna 532850998

BOLT
(Superseded to 532150406)

$5.99

$

In Stock, Qty 12

0

64

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

65

Husqvarna 872070505

Carriage Bolt 5/16-18 x 5/8

$

$

Not available

66

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

69

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

70

Husqvarna 532213146

WASHER
(Superseded to 532125078)

Note: This part must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

71

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

72

Engine

Note: Briggs & Stratton, Model No. 124702. This part must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532135268

Operator's Manual (English)

$

$

Currently unavailable

Husqvarna 532135269

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

ENG DECAL NLA

$

$

Not available

Husqvarna 532850795

HSG STRIPE DECAL NLA

$

$

Not available

Husqvarna 532850788

DECAL,TRIMPLATE

$

$

Not available
