56 SFE (954050901-B) - Husqvarna Walk-Behind Mower (1999-12) 22" Rotary Lawn Mower (Part 1) Parts Diagram

Walk-Behind Mower

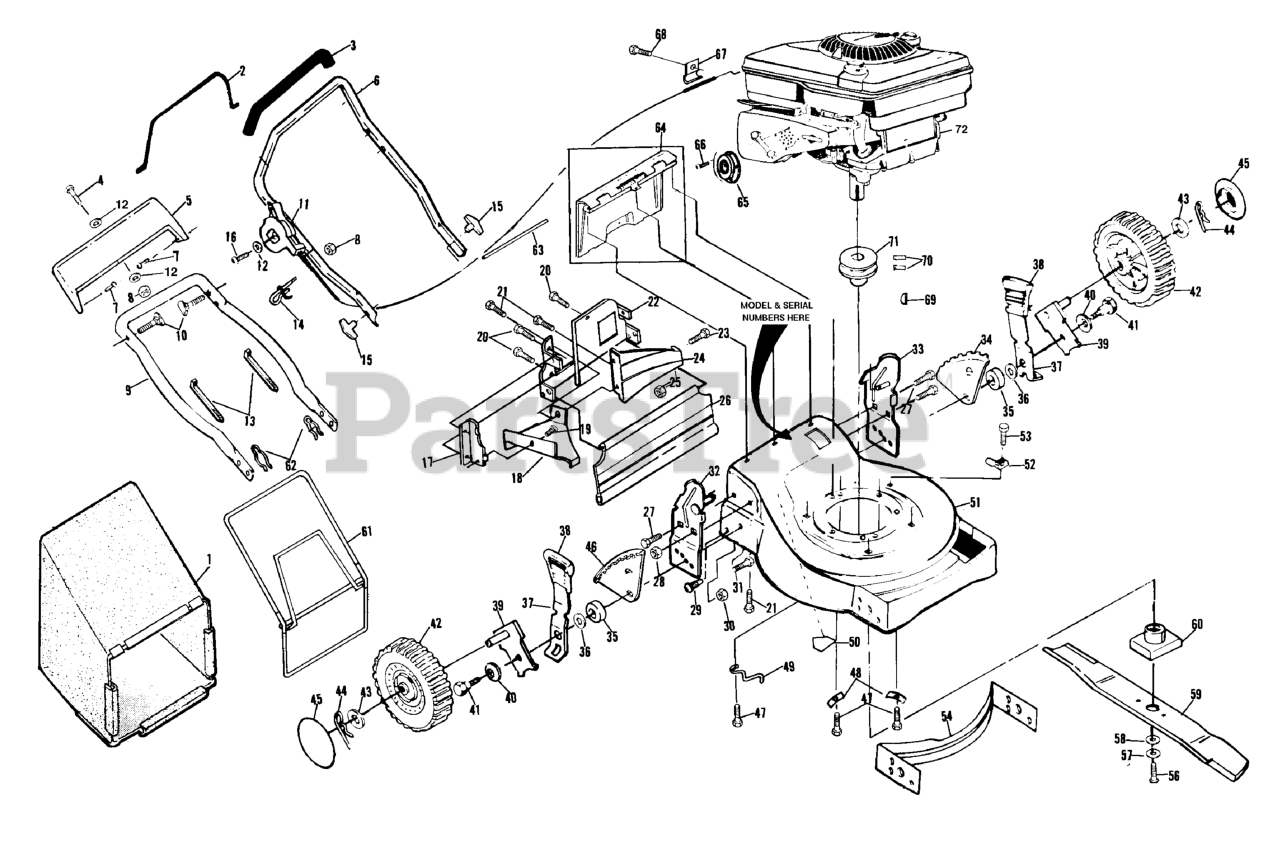

22" Rotary Lawn Mower (Part 1) Parts Diagram

  • Title

1

Husqvarna 532800386

GRASS BAG
(Superseded to 532134048)

$

$

Not available

2

Husqvarna 532800746

CONTROL BAR

$

$

Not available

3

Husqvarna 532850724

HANDLE GRIP
(Superseded to 585161003)

$

$

Not available

4

Husqvarna 532085436

SCREW
(Superseded to 874760424)

$

$

Not available

5

Husqvarna 532800547

TRIM PLATE

$

$

Not available

6

Husqvarna 532125071

REPL BY 532 12 52-94
(Superseded to 532167122)

$

$

Not available

7

Husqvarna 532036953

SCREW

$

$

Not available

8

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532125173

HANDLE LOWER PM
(Superseded to 532157081)

$

$

Not available

10

Husqvarna 532058714

HANDL BOLT
(Superseded to 532183724)

$

$

Not available

11

Husqvarna 532851464

THROTTLE CONTROL
(Superseded to 532851461)

$

$

Not available

12

Husqvarna 532085723

WASHER PM

$

$

Not available

13

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532800357

ROPE GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

15

Husqvarna 532063688

KNOB HANDLE
(Superseded to 532183724)

$

$

Not available

16

Husqvarna 532851185

SCREW
(Superseded to 532128889)

$

$

Not available

17

Husqvarna 532125076

Side Baffle

$

$

Currently unavailable

18

Husqvarna 532125075

Discharge Baffle

$

$

Currently unavailable

19

Husqvarna 532086344

SCREW PM

$

$

Not available

20

Husqvarna 532081283

SCREW

$

$

Not available

21

Husqvarna 532054583

SCREW

$

$

Not available

22

Husqvarna 532125219

Back Plate

$

$

Currently unavailable

23

Husqvarna 532041945

SCREW
(Superseded to 871191008)

$

$

Not available

24

Husqvarna 532125073

Rear Baffle

$

$

Currently unavailable

25

Husqvarna 532069180

LOCKNUT

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532751083

REAR SKIRT
(Superseded to 532413160)

$13.99

$

In Stock, Qty 9

0

27

Husqvarna 532055187

SCREW
(Superseded to 817000512)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

29

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

30

Husqvarna 532074400

NUT
(Superseded to 873610600)

$

$

Not available

31

Husqvarna 532066238

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532125038

Handle Bracket Assembly (Right)

$

$

Currently unavailable

33

Husqvarna 532125040

Handle Bracket Assembly (Left)

$

$

Currently unavailable

34

Husqvarna 532800370

WHL ADJ BRKT RF/LR
(Superseded to 532140058)

$

$

Not available

35

Husqvarna 532084920

SPACER PM
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 16

0

37

Husqvarna 532125066

SELECTOR SPRING

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532077865

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

39

Husqvarna 532125079

SHAFT

$

$

Not available

40

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$

$

Not available

41

Husqvarna 532084921

SHOULDER BOLT PM
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

42

Husqvarna 532086943

WHEEL & TIRE PM
(Superseded to 532150341)

$37.99

$

In Stock, only 1 left!

0

43

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

44

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

45

Husqvarna 532850845

HUB CAP

$

$

Not available

46

Husqvarna 532800368

WHL ADJ BRKT LF/RR

$

$

Not available

47

Husqvarna 532850998

BOLT
(Superseded to 532150406)

$5.99

$

In Stock, Qty 12

0

48

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

49

Husqvarna 532851000

BELT SNUBBER

$

$

Not available

50

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532801014

HOUSING NLA

Note: (Includes Key No. 50)

$

$

Not available

52

Husqvarna 532087930

GUIDE CLIP PM

$

$

Not available

53

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 532125081

Front Baffle

$

$

Currently unavailable

56

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532850973

22" Blade
(Superseded to 532406713)

$28.99

$

In Stock, Qty 20+

0

60

Husqvarna 532851514

BLADE ADAPTOR

$20.99

$

In Stock, Qty 17

0

61

Husqvarna 532800393

CATCHER FRAME
(Superseded to 532088614)

$

$

Not available

62

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

63

Husqvarna 532750328

HINGE ROD

$

$

Not available

64

Husqvarna 532125080

Rear Door

$

$

Currently unavailable

65

Husqvarna 532103251

DEFLECTOR

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

66

Husqvarna 532093705

SCREW
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

67

Husqvarna 532213146

WASHER
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

68

Husqvarna 532107488

SCREW

$

$

Not available

69

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

70

Husqvarna 532059708

SCREW

$

$

Not available

71

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 1 left!

0

72

Engine - Briggs & Stratton Model No. 124707 Type No. 3120-01

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532801679

Operator's Manual (English)

$

$

Not available

Husqvarna 532128435

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

ENG DECAL NLA

$

$

Not available

Husqvarna 532850795

HSG STRIPE DECAL NLA

$

$

Not available

Husqvarna 532850788

DECAL,TRIMPLATE

$

$

Not available
