56 SFE (954050901-B) - Husqvarna Walk-Behind Mower (1999-12) 22" Rotary Lawn Mower (Part 2) Parts Diagram

Walk-Behind Mower

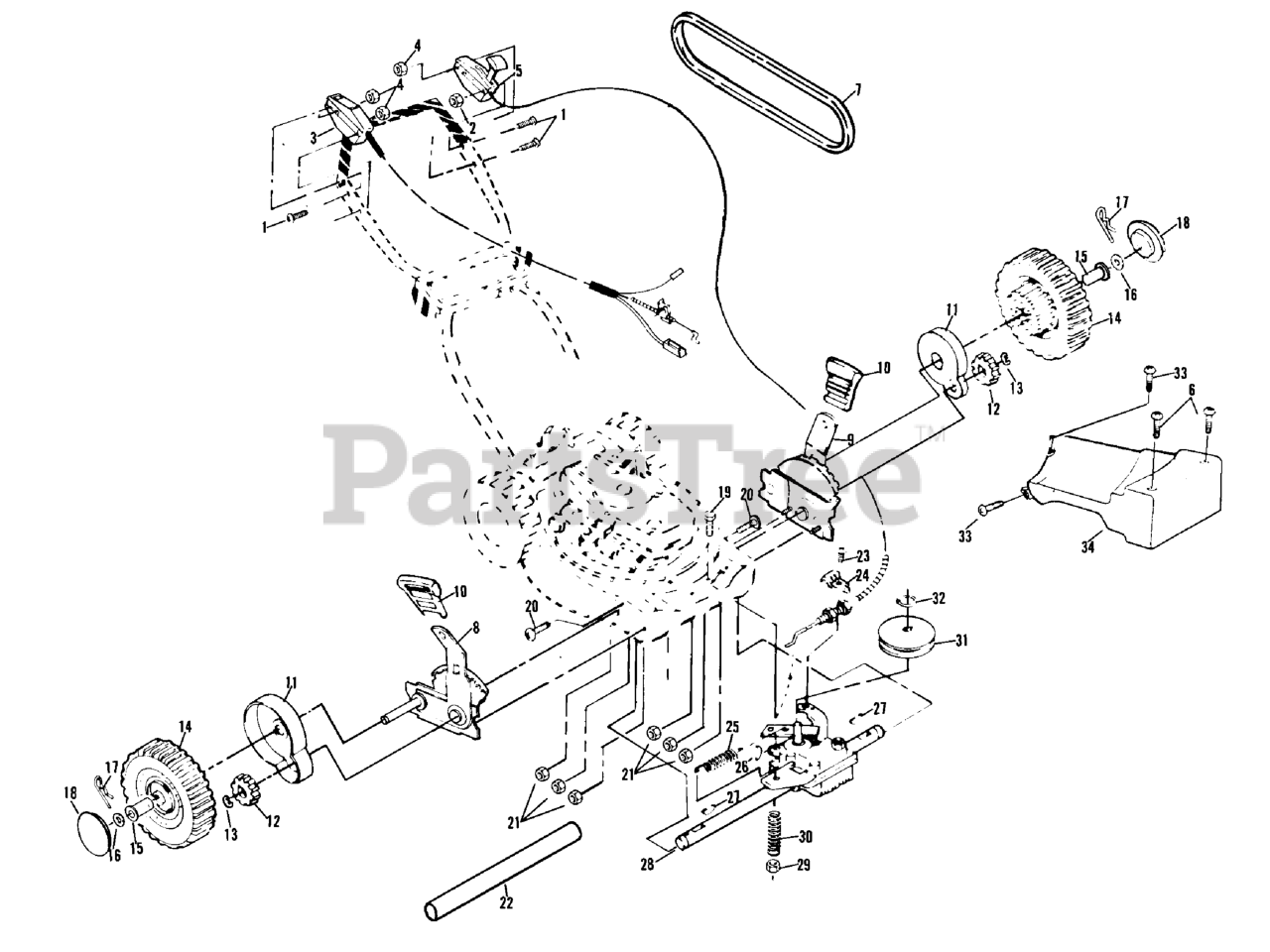

22" Rotary Lawn Mower (Part 2) Parts Diagram

  • Title

1

Husqvarna 532085692

SCREW**
(Superseded to 874250434)

$

$

Not available

2

Husqvarna 532053490

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532801633

CABLE

$

$

Not available

4

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532851097

DRIVE CONTROL
(Superseded to 532133053)

$

$

Not available

6

Husqvarna 532087666

Self-tapping Screw #10-24 x 2-3/4

$

$

Currently unavailable

7

Husqvarna 532083691

V BELT

$

$

Not available

8

Husqvarna 532800366

WHL ADJ RH

$

$

Not available

9

Husqvarna 532800363

WHL ADI LH

$

$

Not available

10

Husqvarna 532077865

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

11

Husqvarna 532076401

DUST COVER

$

$

Not available

12

Husqvarna 532074507

PINION.10.TEETH

$

$

Not available

13

Husqvarna 532053753

E-RING
(Superseded to 812000003)

$

$

Not available

14

Husqvarna 532086954

WHEEL TIRE PM
(Superseded to 532702236)

$

$

Not available

15

Husqvarna 532086960

BUSHING.1.860 X .505.

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 14

0

17

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

18

Husqvarna 532850844

HUBCAP

$

$

Not available

19

Husqvarna 532054338

BOLT PM

$

$

Not available

20

Husqvarna 532061528

SCREW
(Superseded to 874100412)

$

$

Not available

21

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

23

Husqvarna 532750108

SCREW WASHER HD

$

$

Not available

24

Husqvarna 532083700

CABLE CLAMP

$

$

Not available

25

Husqvarna 532075192

SPRING

$

$

Not available

26

Husqvarna 532057076

WOODRUFF KEY

$

$

Not available

27

Husqvarna 532065692

WOODRUFF KEY

$

$

Not available

28

Husqvarna 532751001

GEARCASE
(Superseded to 532048281)

$

$

Not available

29

Husqvarna 532068038

NUT **
(Superseded to 873850400)

$

$

Not available

30

Husqvarna 532083632

SPRING
(Superseded to 532137090)

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 532083681

DRIVE PULLEY
(Superseded to 532154753)

$

$

Not available

32

Husqvarna 532074976

RETAINER RING

$

$

Not available

33

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532850825

DRIVE COVER

$

$

Not available

Husqvarna 532800575

DR CVR DECAL

$

$

Not available
