56 SFE (954050901-B) - Husqvarna Walk-Behind Mower (1999-12) 22" Rotary Lawn Mower (Part 2) Parts Diagram

Walk-Behind Mower

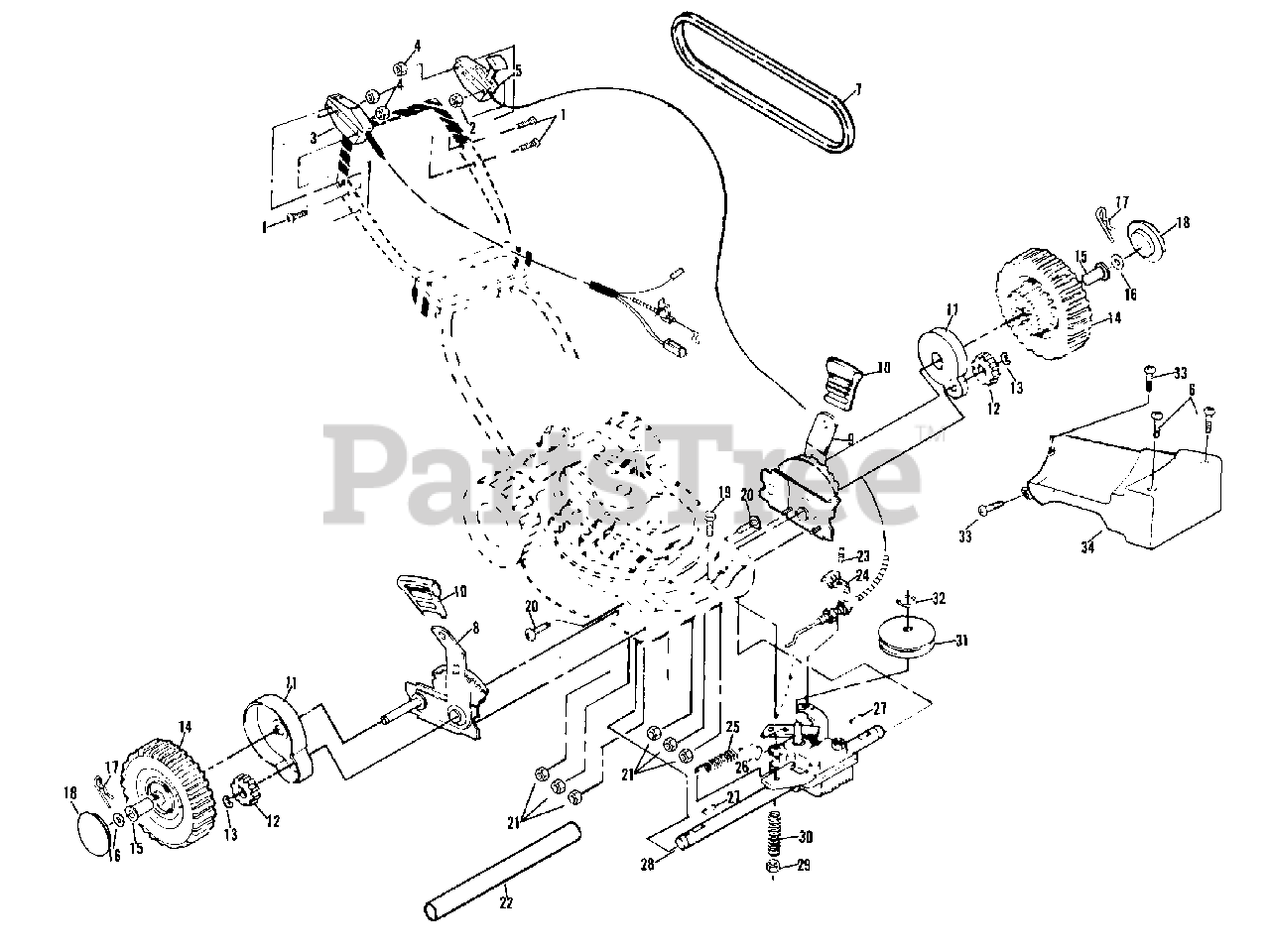

22" Rotary Lawn Mower (Part 2) Parts Diagram

  • Title

1

Husqvarna 532085692

Machine Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532053490

Locknut 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532801633

Engine Zone Control Cable

$

$

Not available

4

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532851097

Drive Control
(Superseded to 532133053)

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532087666

Self-tapping Screw #10-24 x 2-3/4

$

$

Currently unavailable

7

Husqvarna 532083691

V-Belt

$

$

Not available

8

Husqvarna 532800366

Wheel Adjuster Assembly (Right)

$

$

Not available

9

Husqvarna 532800363

Wheel Adjuster Assembly (Left)

$

$

Not available

10

Husqvarna 532077865

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532076401

Dust Cover

$

$

Not available

12

Husqvarna 532074507

Pinion

$

$

Not available

13

Husqvarna 532053753

E-Ring
(Superseded to 812000003)

$

$

Not available

14

Husqvarna 532086954

Wheel & Tire Assembly 8.0 x 2.0
(Superseded to 532702236)

$

$

Not available

15

Husqvarna 532086960

Wheel Bushing

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532052160

Washer

$

$

Not available

17

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532850844

Hubcap

$

$

Not available

19

Husqvarna 532054338

Hex Head Bolt 1/4-20 x 2-3/4

$

$

Not available

20

Husqvarna 532061528

Flat Head Machine Screw 1/4-20 x 3/4
(Superseded to 874100412)

$

$

Not available

21

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532086012

Drive Shaft Cover

$

$

Not available

23

Husqvarna 532750108

Hex Washer Head Tapping Screw #10-24 x 3/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532083700

Cable Clamp

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532057076

Woodruff Key #213

$

$

Not available

27

Husqvarna 532065692

Woodruff Key #3

$

$

Not available

28

Husqvarna 532751001

Gear Case Assembly
(Superseded to 532048281)

$

$

Not available

29

Husqvarna 532068038

Locknut
(Superseded to 873850400)

$

$

Not available

30

Husqvarna 532083632

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532083681

Drive Pulley
(Superseded to 532154753)

$

$

Not available

32

Husqvarna 532074976

Retaining Ring

$

$

Not available

33

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532850825

Drive Cover

$

$

Not available

Husqvarna 532800575

Decal (Drive Cover)

$

$

Not available
