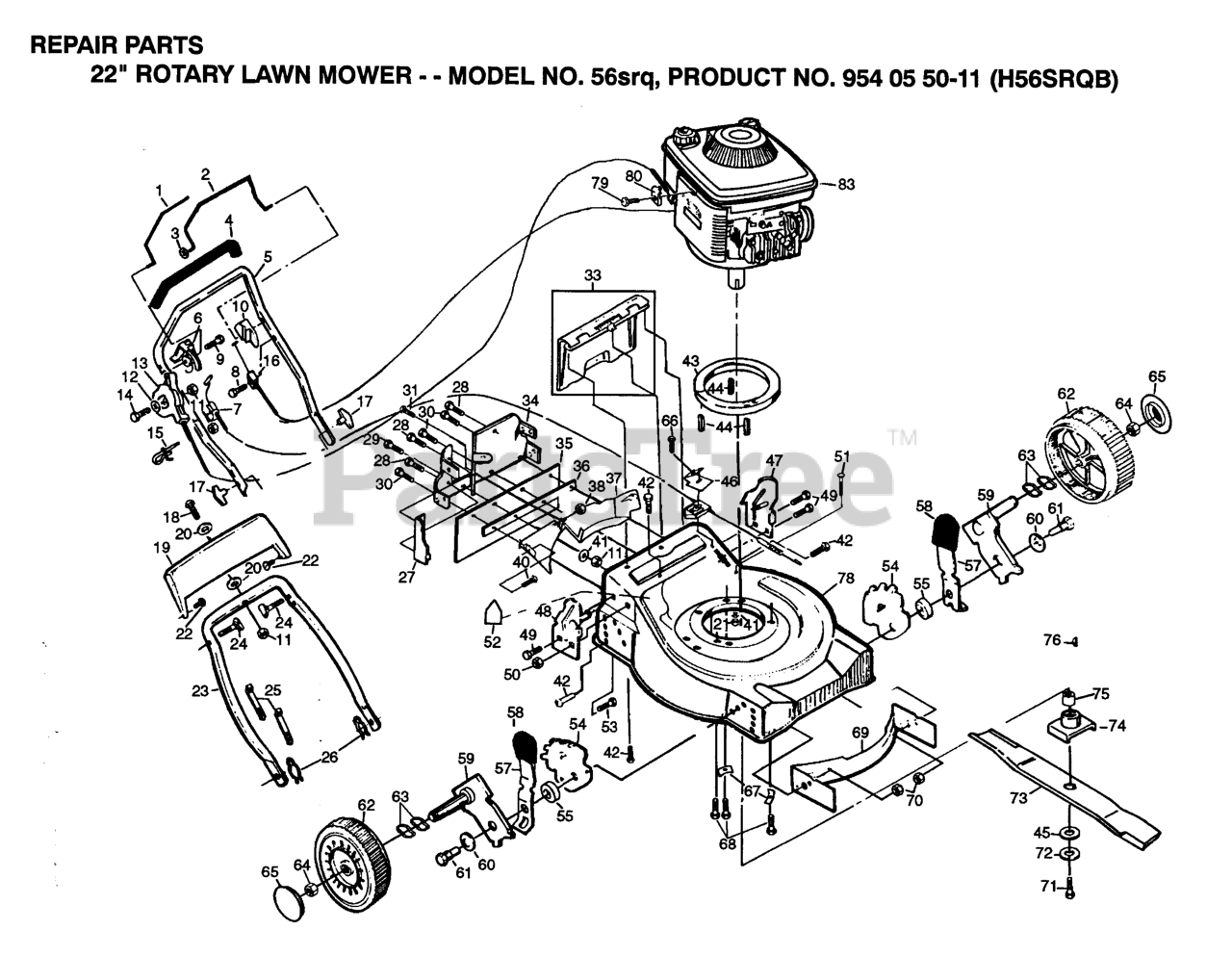

56 SRQ (954055011-B) - Husqvarna Walk-Behind Mower (1992) REPAIR PARTS 2 Parts Diagram

Walk-Behind Mower

REPAIR PARTS 2 Parts Diagram

  • Title

6

Husqvarna 532850042

DR CONT ACTUATOR

$

$

Not available

13

Husqvarna 532132536

THROTTLE CONTROL
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

46

Husqvarna 532750346

CVR BRKT

$

$

Not available

67

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

75

Husqvarna 532103113

SPACER PM

$

$

Not available

45

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532085692

SCREW**
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532125295

UPPER HANDLE
(Superseded to 532166268)

$

$

Not available

30

Husqvarna 532054583

SCREW

$

$

Not available

28

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532074189

NUT

$

$

Not available

33

Husqvarna 532801097

REAR DOOR KIT

$

$

Not available

22

Husqvarna 532036953

SCREW

$

$

Not available

63

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

64

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 3 left!

0

19

Husqvarna 532800547

TRIM PLATE

$

$

Not available

79

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

35

Husqvarna 532130444

SKIRT REAR

$

$

Not available

3

Husqvarna 532050806

WASHER
(Superseded to 819101216)

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 532085723

WASHER PM

$2.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

SCREW

$

$

Not available

12

Husqvarna 532085723

WASHER PM

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532850041

ZONE CONT ACTUATO

$

$

Not available

55

Husqvarna 532084920

SPACER PM
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

54

Husqvarna 532850904

WHL ADJ BRKT
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532850845

HUB CAP

$

$

Not available

52

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532125168

SELECTOR SPRING
(Superseded to 532850856)

$4.99

$

In Stock, Qty 11

0

44

Husqvarna 532850987

ENGINE SPACER
(Superseded to 532850988)

$

$

Not available

43

Husqvarna 532850988

ENGINE SPACER

$

$

Not available

25

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532103524

BLADE 22" PM

$

$

Not available

9

Husqvarna 532851552

SELF-TAPPING SCREW

$

$

Not available

29

Husqvarna 532086779

HEX SCREW

$

$

Not available

- -

Husqvarna 532850788

DECAL,TRIMPLATE

$

$

Not available

66

Husqvarna 532085768

SCREW, HEX PM

$

$

Not available

48

Husqvarna 532125187

BRACKET HANDLE RH

$

$

Not available

62

Husqvarna 532800333

WHL & TIRE ASSEMBLY
(Superseded to 532435276)

$

$

Not available

59

Husqvarna 532125169

AXLE ARM AS PM
(Superseded to 532750610)

$

$

Not available

68

Husqvarna 532850999

SCREW

$7.49

$

In Stock, only 3 left!

0

24

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

- -

Husqvarna 532800569

ENG DECAL NLA

$

$

Not available

49

Husqvarna 532055187

SCREW
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$

$

Not available

11

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532850724

HANDLE GRIP
(Superseded to 585161003)

$

$

Not available

47

Husqvarna 532125186

BRACKET HANDLE LH

$

$

Not available

50

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532084921

SHOULDER BOLT PM
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

60

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532850061

BAFFLE NLA

$

$

Not available

21

Husqvarna 532053490

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 872070505

Carriage Bolt 5/16-18 x 5/8

$

$

Not available

17

Husqvarna 532063688

KNOB HANDLE
(Superseded to 532183724)

$

$

Not available

74

Husqvarna 532125030

ADAPTER, BLADE

$

$

Not available

18

Husqvarna 532085436

SCREW
(Superseded to 874760424)

$

$

Not available

23

Husqvarna 532125293

HANDLE, LOWER PM
(Superseded to 532157081)

$

$

Not available

31

Husqvarna 532081276

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

76

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

8

Husqvarna 532085768

SCREW, HEX PM

$

$

Not available
