56 SRQ (954055011-C) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View B) Parts Diagram

Walk-Behind Mower

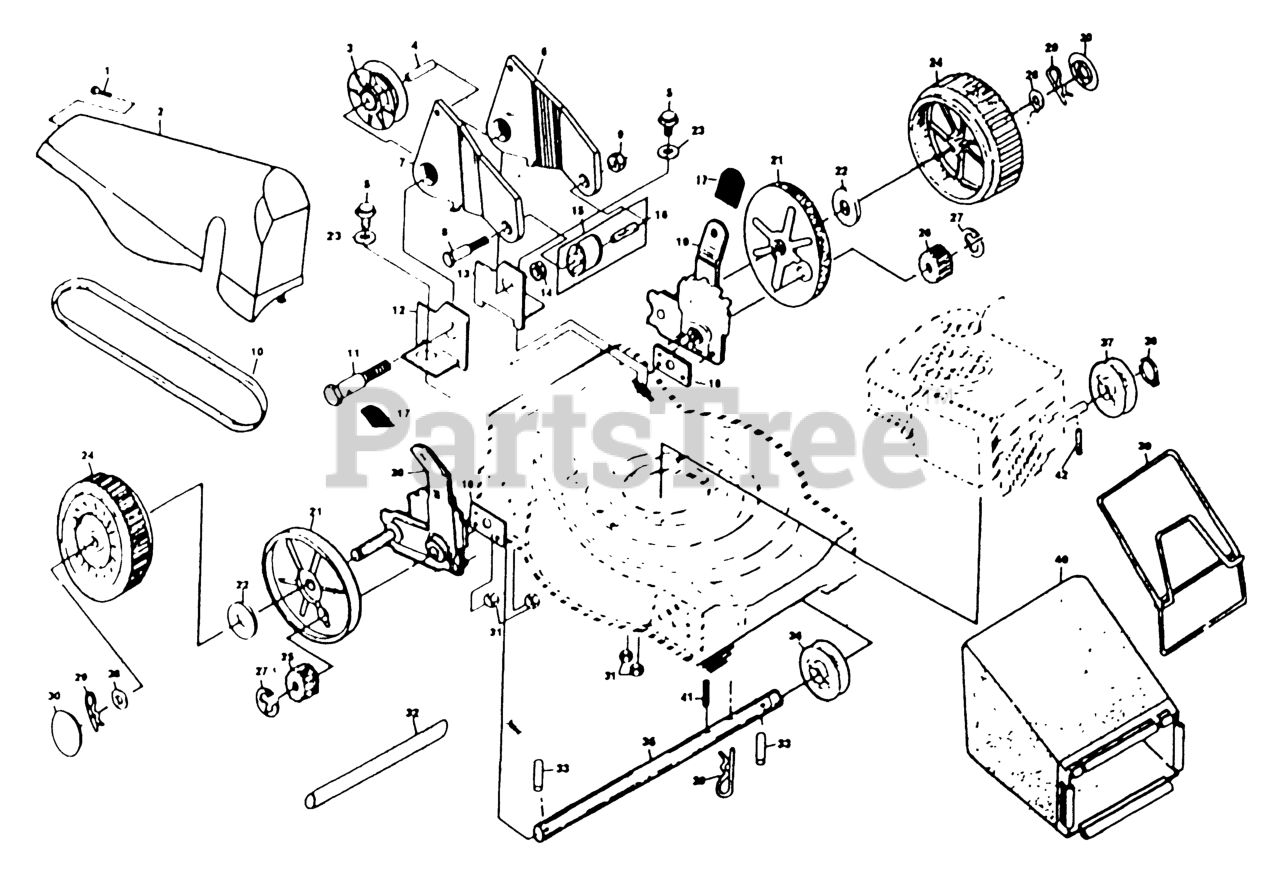

22" Rotary Lawn Mower (View B) Parts Diagram

  • Title

1

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532850833

DRIVE COVER

$

$

Not available

3

Husqvarna 532128829

IDLER PULLEY
(Superseded to 532088516)

$

$

Not available

4

Husqvarna 532850037

PULLEY SPACER

$

$

Not available

5

Husqvarna 532086779

HEX SCREW

$

$

Not available

6

Husqvarna 532125226

IDLER BRACKET (LEFT)

$

$

Not available

7

Husqvarna 532125227

IDLER BRACKET RIGHT
(Superseded to 532138853)

$

$

Not available

8

Husqvarna 874760424

Hex Head Bolt 1/4-20 x 1-1/2

$

$

Not available

9

Husqvarna 532050962

LOCKNUT

$

$

Not available

10

Husqvarna 532850028

DR BELT

$

$

Not available

11

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532125228

PIVOT BRACKET RIGHT

$

$

Not available

13

Husqvarna 532125229

PIVOT BRACKET LEFT

$

$

Not available

14

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

15

Husqvarna 532129275

KIT, IDLER ASSY

Note: (Includes Key No. 16)

$

$

Not available

16

Husqvarna 532088576

IDLER SPACER

$

$

Not available

17

Husqvarna 532087877

KNOB

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532125230

SPACER PLATE

$

$

Not available

19

Husqvarna 532128701

SELECTOR ASSY NLA

$

$

Not available

20

Husqvarna 532128700

SELECTOR ASSY

$

$

Not available

21

Husqvarna 532088080

DUST SHROUD PM
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 11

0

23

Husqvarna 532070543

FLAT WASHER

$

$

Not available

24

Husqvarna 532800334

WHEEL&TIRE ASS'Y
(Superseded to 532193139)

$56.99

$

In Stock, only 2 left!

0

25

Husqvarna 532850016

DR PINION RH
(Superseded to 532165096)

$

$

Not available

26

Husqvarna 532850017

DR PINION LH
(Superseded to 532165097)

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 812000003

E-RING

$

$

Not available

28

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

29

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

30

Husqvarna 532850845

HUB CAP

$

$

Not available

31

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 532850373

DR SHAFT CVR NLA

$

$

Not available

33

Husqvarna 532851980

DRIVE PAWL
(Superseded to 532164795)

$

$

Not available

35

Husqvarna 532128488

DRIVE SHAFT

$

$

Not available

36

Husqvarna 532088082

DRIVE PULLEY PM

$

$

Not available

37

Husqvarna 532850027

DR PULLEY

$

$

Not available

38

Husqvarna 812000030

RETAINING RING ST

$

$

Not available

39

Husqvarna 532800393

CATCHER FRAME
(Superseded to 532088614)

$

$

Not available

40

Husqvarna 532800386

GRASS BAG
(Superseded to 532134048)

$

$

Not available

41

Husqvarna 532088028

ROLL PIN PM
(Superseded to 532851980)

$

$

Not available

42

Husqvarna 532128489

DOWEL PIN
(Superseded to 532851980)

$

$

Not available
