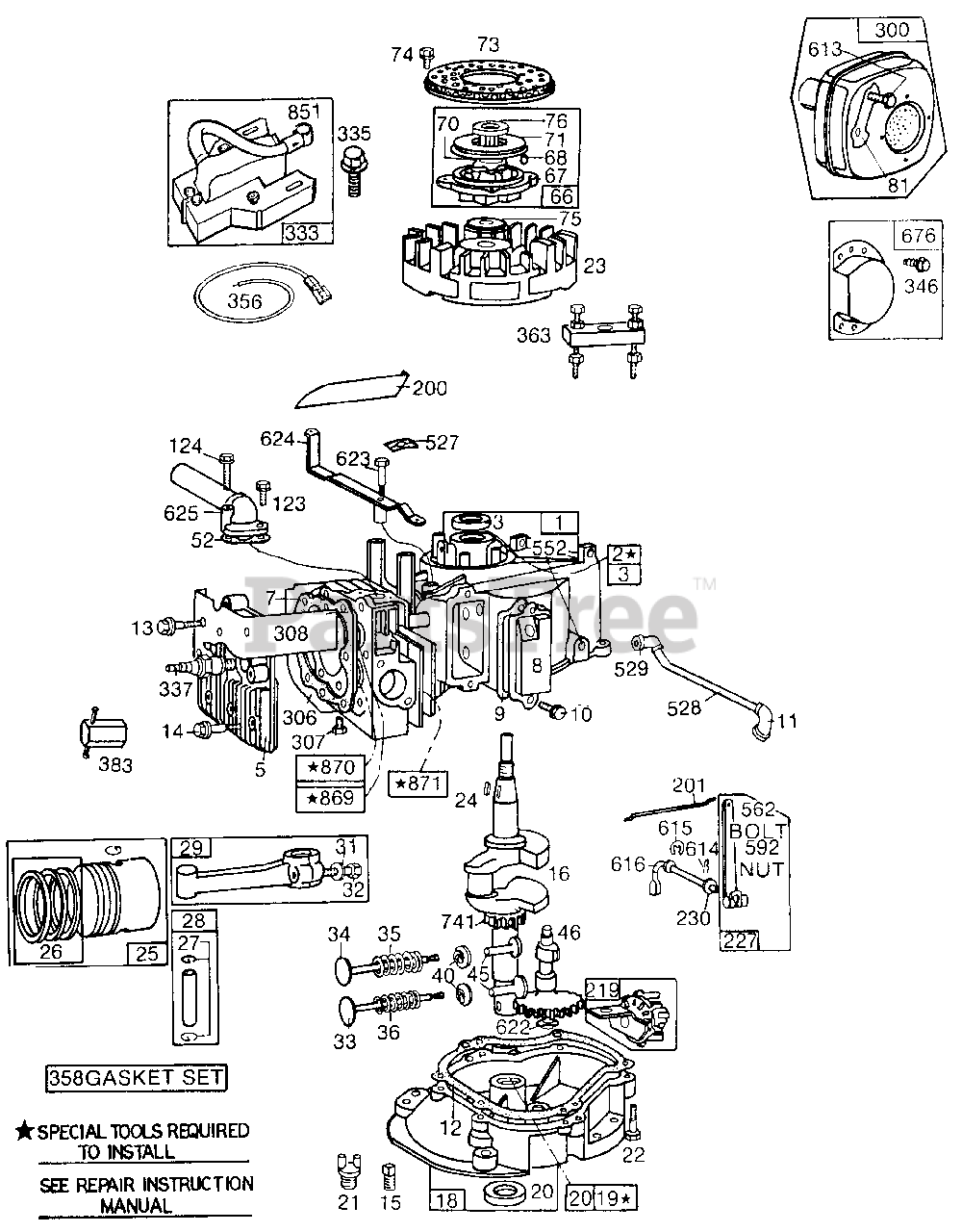

560 (127-560-100) - Cub Cadet Walk-Behind Mower Engine (1987) B&S 5.0 HP-130902-1224-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

B&S 5.0 HP-130902-1224-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-396006

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-211542

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-270383

Gasket-Cylinder Head

Note: (Included in Gasket Set-Part No. 297616)

$

$

Not available

8

Cub Cadet BS-297261

Breather-Valve Chamber

$

$

Not available

9

Cub Cadet BS-27549

Gasket-Valve Cover

Note: (Included in Gasket Set-Part No. 297616)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather Mounting Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-67738

Grommet-Breather

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-270069

Gasket-Crankcase-.015" Thick (Standard)

Note: (Included in Gasket Set-Part No. 297616)

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270122

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set-Part No. 297616)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270123

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set-Part No. 297616)

$

$

Currently unavailable

13

Cub Cadet BS-93368

Screw-Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 1 left!

0

14

Cub Cadet BS-93369

Screw-Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-397107

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-297587

Sump-Oil

$

$

Currently unavailable

19

Cub Cadet BS-297604

Bushing-Oil-Sump

$

$

Currently unavailable

20

Cub Cadet BS-391485

Seal-Oil

$9.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-93032

Screw-Sump Mounting Sem

$

$

Not available

23

Cub Cadet BS-297229

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-298904

Piston Assembly-Standard

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assembly-.010" O.S.

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assembly-.020" O.S.

$95.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298907

Piston Assembly-.030" O.S.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Standard Piston

$48.99

$

In Stock, Qty 11

0

Cub Cadet BS-298983

Ring Set-.010" O.S. Piston

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298984

Ring Set-.020" O.S. Piston

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-.030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assembly-Piston- Standard

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Pin Assembly-Piston- .005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299429

Rod Assembly-Connecting

$27.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222282

Washer-Flat (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-92296

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-211119

Valve-Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve-Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, Qty 5

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-260642

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-211117

Gear-Cam

$

$

Not available

52

Cub Cadet BS-270070

Gasket-Intake Elbow Mounting

Note: (Included in Gasket Set-Part No. 297616)

$

$

Currently unavailable

66

Cub Cadet BS-394558

Clutch Assembly-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 15

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Clutch Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221923

Screen-Rewind Starter

$29.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-93490

Screw-Rotating Screen Mounting Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

81

Cub Cadet BS-222263

Lock-Muffler Screw

$

$

Not available

123

Cub Cadet BS-93512

Screw-Intake Elbow Mounting

$

$

Currently unavailable

124

Cub Cadet BS-93367

Screw-Intake Elbow Mounting

$

$

Currently unavailable

200

Cub Cadet BS-221480

Guide-Air

$

$

Not available

201

Cub Cadet BS-260649

Link-Governor

$9.99

$

Usually ships in 2-12 days

0

219

Cub Cadet BS-297249

Oil Slinger Gear, Governor and Bracket

$

$

Currently unavailable

227

Cub Cadet BS-391967

Lever Assembly-Governor

$

$

Currently unavailable

230

Cub Cadet BS-222450

Washer-Governor Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

300

Cub Cadet BS-393615

Muffler-Exhaust (Lo-Tone)
(Superseded to BS-494585)

$23.99

$

In Stock, Qty 10

0

306

Cub Cadet BS-221484

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93042

Screw-Sem

$

$

Currently unavailable

308

Cub Cadet BS-221452

Cover-Cylinder Head

$

$

Currently unavailable

333

Cub Cadet BS-397358

Armature Group

$53.99

$

In Stock, only 2 left!

0

335

Cub Cadet BS-93414

Screw-Armature Mounting Sem

$

$

Not available

337

Cub Cadet BS-298809

Plug-Spark (1-1/2" High- 37-44 MM)

$

$

Currently unavailable

346

Cub Cadet BS-93705

Screw-Hex Hd.
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-297616

Gasket Set

$

$

Not available

363

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

527

Cub Cadet BS-93376

Clip-Breather Pipe

$

$

Currently unavailable

528

Cub Cadet BS-230717

Tube-Breather

$

$

Not available

529

Cub Cadet BS-67608

Grommet-Breather Tube

$

$

Not available

552

Cub Cadet BS-231078

Bushing-Governor Shaft

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex 10-24

$

$

Not available

613

Cub Cadet BS-93935

Shoulder Screw-Hex Hd.
(Superseded to BS-691413)

$5.99

$

In Stock, only 2 left!

0

614

Cub Cadet BS-93306

Cotter-Hair Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 4 left!

0

616

Cub Cadet BS-231076

Crank-Governor

$

$

Not available

622

Cub Cadet BS-260676

Washer-Spring

$

$

Currently unavailable

623

Cub Cadet BS-93838

Screw-Shoulder

$

$

Not available

624

Cub Cadet BS-297252

Lever-Linkage

$

$

Currently unavailable

625

Cub Cadet BS-297254

Elbow and Tube-Intake

$

$

Currently unavailable

676

Cub Cadet BS-393757

Deflector-Exhaust (Side Outlet)
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-261696

Gear-Timing (Plain Bearing)

$52.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Cable Terminal-Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-211787

Seat-Intake Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211172

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0
