560 (25A-560A190) - White Outdoor Edger (1998)

Edger

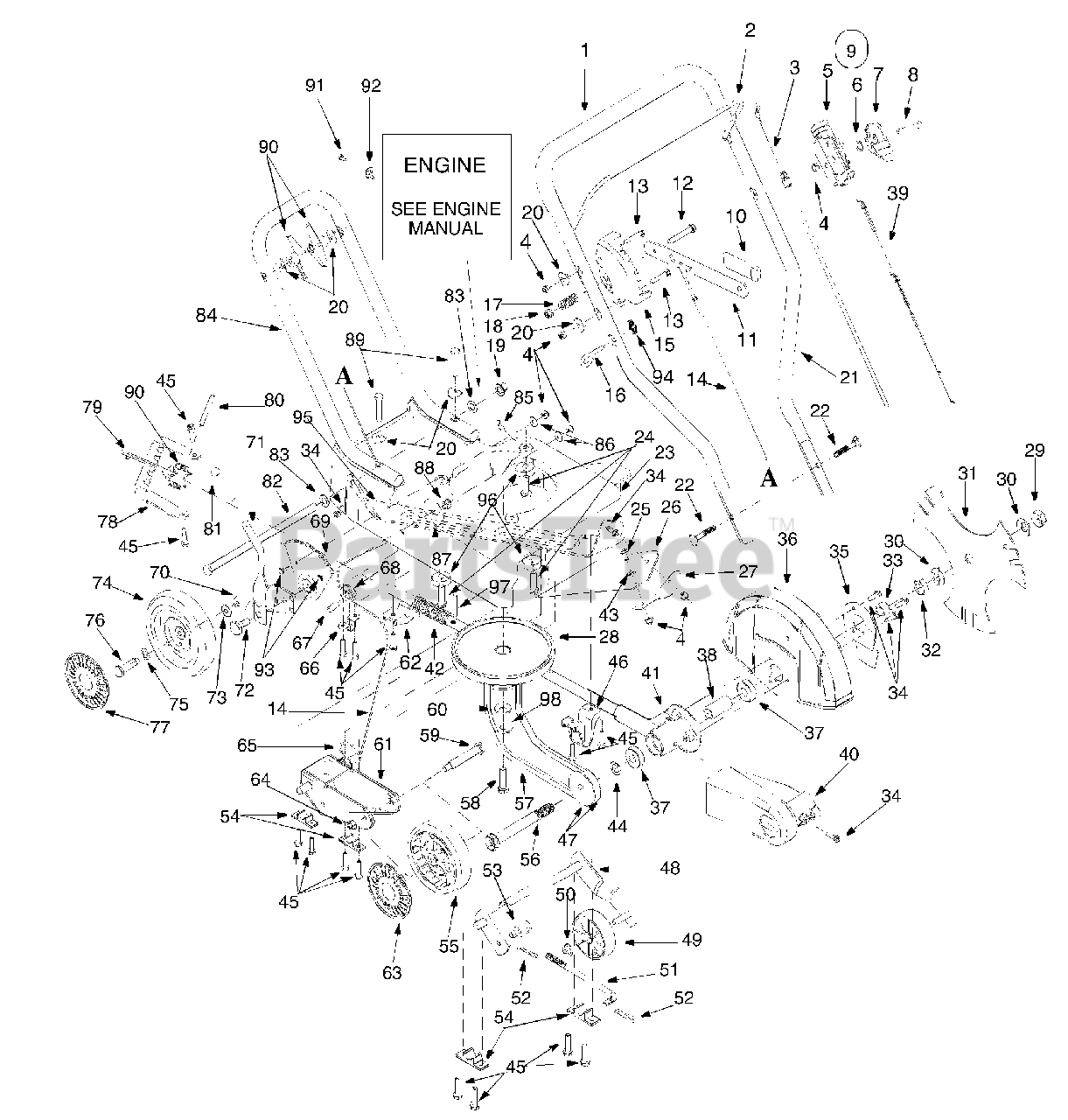

560 (25A-560A190) - White Outdoor Edger (1998) > Parts Diagrams (2) > Complete Assembly

  • Title
720-0297

1

Foam Grip

Part# 720-0297

OEM Warranty Repair Part for White Outdoor

Not available

747-0976

2

Bail

Part# 747-0976

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Blade Control Bail

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.19

746-0966

3

Control Cable

Part# 746-0966

OEM Warranty Repair Part for White Outdoor

Not available

712-0324

4

Hex Lock Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

646-0875

5

Throttle Hsg.

Part# 646-0875 (Superseded to 946-0875)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.99

736-0501

6

Curved Washer .663 x .980 x .014

Part# 736-0501 (Superseded to 936-0501)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

746-0876

7

Throttle Lever

Part# 746-0876 (Superseded to 946-0876)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.97

710-0605

8

Screw Oval C-Sunk 1/4-20 x 1.81 Lg.

Part# 710-0605

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

811-00185

9

Throttle Comp.

Part# 811-00185 (Superseded to 811-0185)

Note: (Inc. Ref. 4, 5, 6, 7, 8)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $27.13

720-0142

10

Grip - Black

Part# 720-0142

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

781-0742

11

Depth Lever

Part# 781-0742

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.02

Variations

POWDER BLACK (0637)

LEVER DEPTH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.02

710-0116

12

Hex Screw 5/16-18 x 2.0 Lg.

Part# 710-0116 (Superseded to 710-3103)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0111

13

Carriage Bolt 1/4-20 x 1.50 Lg.

Part# 710-0111

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.55

746-0955

14

Depth Cable

Part# 746-0955

OEM Warranty Repair Part for White Outdoor

Not available

781-0741

15

Depth Bracket

Part# 781-0741

OEM Warranty Repair Part for White Outdoor

Not available

710-1205

16

Eye Bolt 1/4-20

Part# 710-1205

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

732-0369

17

Compression Spring .550 O.D. x 1.3

Part# 732-0369 (Superseded to 932-0369)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.10

712-0429

18

Hex Lock Nut 5/16-18

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

726-0299

19

Push Cap x 1/2 Rod

Part# 726-0299

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.63

736-0451

20

Washer .320 ID x .93 O.D.

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

749-1079

21

Upper Handle

Part# 749-1079

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-1174

22

Carriage Bolt 5/16-18 x 2.0 Lg.

Part# 710-1174

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.03

631-0079

23

Edger Base Ass'y

Part# 631-0079

OEM Warranty Repair Part for White Outdoor

Not available

710-0502A

24

Tapp Screw w/Hex Lock Wash 3/8-16

Part# 710-0502A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.58

710-3013

25

Hex Screw 1/4-20 x .50 Lg.

Part# 710-3013

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

731-1935

26

Discharge Shield Deflector

Part# 731-1935

OEM Warranty Repair Part for White Outdoor

Not available

781-0746

27

Deflector Keeper

Part# 781-0746

OEM Warranty Repair Part for White Outdoor

Not available

756-1150

28

Engine Pulley

Part# 756-1150 (Superseded to 756-1150A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $115.47

712-0413

29

Hex Jam Nut 5/8-18

Part# 712-0413 (Superseded to 912-0413)

OEM Warranty Repair Part for White Outdoor

Not available

736-0317

30

Bell Washer .63 I.D. x 1.25 O.D. x .18

Part# 736-0317

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.60

781-0748

31

Star Blade

Part# 781-0748

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.63

Variations

POWDER BLACK (0637)

Tri-Cut Edger Blade, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.63

712-0318

32

Hex Jam Nut 5/8-18

Part# 712-0318

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

750-1163

33

Spacer .628 x .875 x .545 Lg.

Part# 750-1163

OEM Warranty Repair Part for White Outdoor

Not available

710-0642

34

Hx Scr. w/Wash.: TT: 1/4-20 x .750 Lg.

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

781-0740

35

Blade Guide

Part# 781-0740

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available GUIDE BLADE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-1942

36

Blade Guard

Part# 731-1942

OEM Warranty Repair Part for White Outdoor

Not available

741-0155

37

Ball Bearing .62 I.D. x 1.38 O.D. x .4

Part# 741-0155 (Superseded to 941-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.54

750-1158

38

Spacer .628 x .875 x 1.818 Lg.

Part# 750-1158

OEM Warranty Repair Part for White Outdoor

Not available

746-0845

39

Throttle Cable

Part# 746-0845 (Superseded to 946-1115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.74

731-1939

40

Belt Guard

Part# 731-1939

OEM Warranty Repair Part for White Outdoor

Not available

719-0387

41

Spindle w/Insert

Part# 719-0387

Not available

732-0862

42

Compression Spring: Arbor

Part# 732-0862

OEM Warranty Repair Part for White Outdoor

Not available

736-0342

43

Flat Washer .283 I.D x .75 O.D. x .030

Part# 736-0342

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

736-0116

44

Flat Washer .635 I.D. x .93 O.D. x .06

Part# 736-0116 (Superseded to 936-0116)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-1241

45

Hex Screw w/Wash 1/4

Part# 710-1241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.63

731-1929

46

Front Rod Handler

Part# 731-1929

OEM Warranty Repair Part for White Outdoor

Not available

756-0449

47

Pulley

Part# 756-0449 (Superseded to 956-0449)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.50

681-0140

48

Curb Whl Bracket Ass'y

Part# 681-0140

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET ASM. CURB

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-1932

49

Curb Roller

Part# 731-1932

OEM Warranty Repair Part for White Outdoor

Not available

726-0100

50

Push Cap x 3/8 Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for White Outdoor

Not available

747-0991

51

Rod 5/16-24

Part# 747-0991

OEM Warranty Repair Part for White Outdoor

Not available

714-0104

52

Cotter Pin .072 x 1.12

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

711-1171

53

Ferrule 5/16-24 x .312

Part# 711-1171

OEM Warranty Repair Part for White Outdoor

Not available

731-1931

54

Black Bushing .515 Dia x .62

Part# 731-1931

OEM Warranty Repair Part for White Outdoor

Not available

734-1869

55

Wheel 7" x 2" Link w/BB

Part# 734-1869

OEM Warranty Repair Part for White Outdoor

Not available

741-0484

Bearing

Part# 741-0484 (Superseded to 941-0484)

Note: (2 per wheel - Incl. w/No. 55) N/I

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.46

710-1627

56

Hex Bolt 5/8-18 x 5.25 Lg.

Part# 710-1627

OEM Warranty Repair Part for White Outdoor

Not available

754-0142

57

V-Belt

Part# 754-0142 (Superseded to 954-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.24

710-0191

58

Hex Screw: 3/8-24 x 1.50 Lg.

Part# 710-0191

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

738-0481

59

Shoulder Screw .500 x 2.62: 3/8-16

Part# 738-0481 (Superseded to 938-0481A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.00

736-0452

60

Bell Wash. .396 I.D. x 1.140 O.D. x .095

Part# 736-0452 (Superseded to 936-0452)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

681-0141

61

Front Wheel Brkt Ass'y.

Part# 681-0141

OEM Warranty Repair Part for White Outdoor

Not available

731-1930

62

Rear Rod Handler

Part# 731-1930

OEM Warranty Repair Part for White Outdoor

Not available

731-1887

63

Hubcap: Spoke w/Hole Grey

Part# 731-1887

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.21

712-3020

64

Jam Lock Nut 3/8-16

Part# 712-3020 (Superseded to 912-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

732-0867

65

Torsion Spring

Part# 732-0867

OEM Warranty Repair Part for White Outdoor

Not available

781-0747

66

Cable Keeper

Part# 781-0747

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

KEEPER CABLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

747-0993

67

Idler Rod

Part# 747-0993

OEM Warranty Repair Part for White Outdoor

Not available

756-0625

68

Cable Roller Pulley

Part# 756-0625

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.90

781-0745

69

Index Plate

Part# 781-0745 (Superseded to 781-0783)

OEM Warranty Repair Part for White Outdoor

Not available

781-0744

70

Pivot Arm

Part# 781-0744

OEM Warranty Repair Part for White Outdoor

Not available

732-0806

71

Spring Lever

Part# 732-0806

OEM Warranty Repair Part for White Outdoor

Not available

738-0507B

72

Shoulder Bolt .500 x .434 Lg.

Part# 738-0507B (Superseded to 938-0507B)

OEM Warranty Repair Part for White Outdoor

Not available

736-0105

73

Bell Wash. .401 I.D. x .870 O.D. x .063

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

734-1819

74

Wheel - 8" x 2" Link Grey w/BB

Part# 734-1819 (Superseded to 734-1978)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.17

741-0484

Bearing

Part# 741-0484 (Superseded to 941-0484)

Note: (2 per wheel - Incl. w/No. 74). N/I

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.46

736-0504

75

Wave Washer .510 I.D. x .750 O.D.

Part# 736-0504 (Superseded to 936-0504)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

738-0102

76

Shoulder Bolt .498 x 1.445: 3/8-16

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.32

731-0981A

77

Hubcap: Radial Spoke Grey

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.40

781-0749

78

Tilt Bracket

Part# 781-0749

OEM Warranty Repair Part for White Outdoor

Not available

681-0139

79

Adj. Lever Ass'y

Part# 681-0139

OEM Warranty Repair Part for White Outdoor

Not available

715-0121

80

Pin 1/4 x 2.0" Lg.

Part# 715-0121

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.77

720-0230

81

Foam Grip

Part# 720-0230

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.19

711-1278

82

Curb Axle

Part# 711-1278

OEM Warranty Repair Part for White Outdoor

Not available

736-3068

83

Flat Wash. .531 I.D. x .875 O.D. x .06

Part# 736-3068

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.74

749-1078

84

Lower Handle

Part# 749-1078

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available HANDLE LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0134

85

Carriage Screw 1/4-20 x .62

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

736-0211

86

Flat Wash. .285 I.D. x 1.25 O.D. x .06

Part# 736-0211 (Superseded to 936-0211)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-3040

87

Flat Wash. .406 I.D. x 1.92 O.D. x .06

Part# 736-3040

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

712-0130

88

Hex Lock Nut 3/8-16

Part# 712-0130

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-3180

89

Hex Screw 5/16-18 x 1.75 Lg.

Part# 710-3180

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.92

732-0188A

90

Torsion Spring

Part# 732-0188A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.35

720-0241

90

Wing Knob Nut 5/16-18

Part# 720-0241 (Superseded to 720-04072A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-1237

91

Hex Scr. w/Wash. :T: #10-32 x .625 Lg.

Part# 710-1237

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

751B213146

92

Clamp B&S Throttle

Part# 751B213146 (Superseded to BS-690798)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.35

710-1637

93

Screw Std. 1/4-20 x .75 Lg.

Part# 710-1637

OEM Warranty Repair Part for White Outdoor

Not available

720-0279

94

Handle Knob

Part# 720-0279

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

781-0758

95

Base Support

Part# 781-0758

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available SUPPORT EDGER BASE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0258

96

Flat Washer .385 x 1.0 x .135

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

715-0143

97

Roll Pin

Part# 715-0143 (Superseded to 915-0143)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

736-0320

98

Flat Washer .38 ID x 1.38 OD x .125

Part# 736-0320

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81
