560 B (120-560B100) - Cub Cadet Walk-Behind Mower (1990) Hi-Wheel Self-Propelled Mower Part 3 Parts Diagram

Walk-Behind Mower

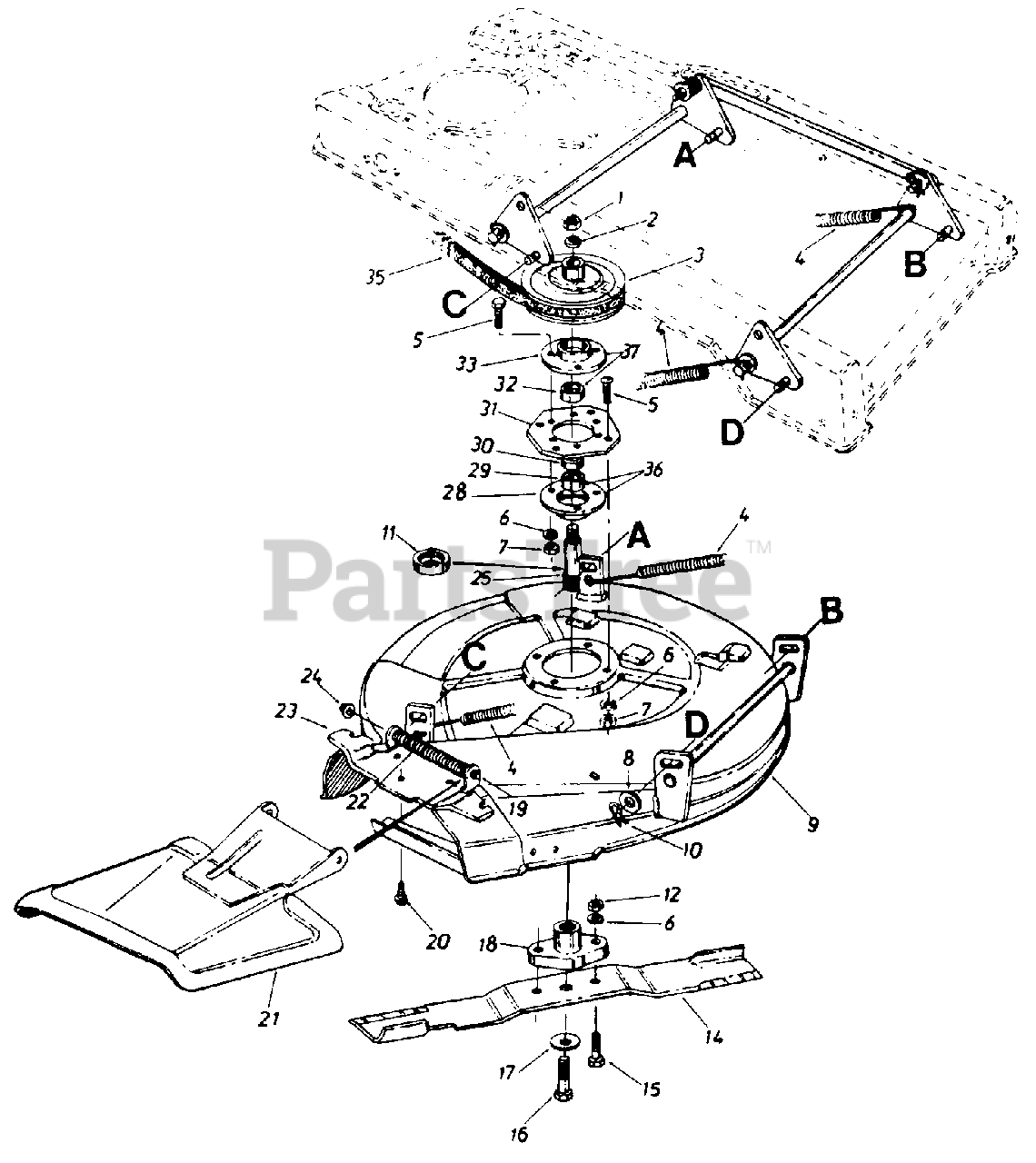

Hi-Wheel Self-Propelled Mower Part 3 Parts Diagram

  • Title

1

Cub Cadet 712-0318

NUT-HEX JAM 5/8-18

$3.49

$

In Stock, Qty 13

0

2

Cub Cadet 736-0317

WASHER-BELL

$7.49

$

In Stock, Qty 20+

0

3

Cub Cadet 756-0484

PULLEY

$

$

Currently unavailable

4

Cub Cadet 732-0529

SPRING-EXTENSION

$

$

Not available

5

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0272

WASHER-FL .510 X .995 X .060

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 16499

DECK ASSEMBLY-26IN

$

$

Currently unavailable

10

Cub Cadet 714-0101

PIN-INTERN COT-1/2 DIA

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

12

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

14

Cub Cadet 742-0147

BLADE-26IN
(Superseded to 942-0147)

$

$

Not available

15

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

$3.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

18

Cub Cadet 748-0300

ADAPTER-BLADE

$12.99

$

In Stock, Qty 15

0

19

Cub Cadet 711-0571

PIN-HINGE

$

$

Not available

20

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 11571

COVER-CHUTE-COMP

$

$

Not available

22

Cub Cadet 732-0261

SPRING-TORSION

$

$

Not available

23

Cub Cadet 11396

ADAPTER

$

$

Not available

24

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 738-0578

SPINDLE-BLADE

$

$

Not available

28

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

29

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0456

SPACER

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 16490

PLATE-SPINDLE MTG

$

$

Not available

32

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

33

Cub Cadet 15296

HOUSING-BRG
(Superseded to 15296A)

$7.99

$

In Stock, only 1 left!

0

35

Cub Cadet 754-0326

BELT-V 1/2 X 62
(Superseded to 954-0326)

$56.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 741-0163

HOUSING ASSY-BRG
(Superseded to 741-0163A)

$45.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 15297

HOUSING ASSY-BRG
(Superseded to 15297A)

$64.99

$

Usually ships in 3-6 days

0
