560 B (121-560B100) - Cub Cadet Walk-Behind Mower (1991) Hi-Wheel Self-Propelled Mower Part 4 Parts Diagram

Walk-Behind Mower

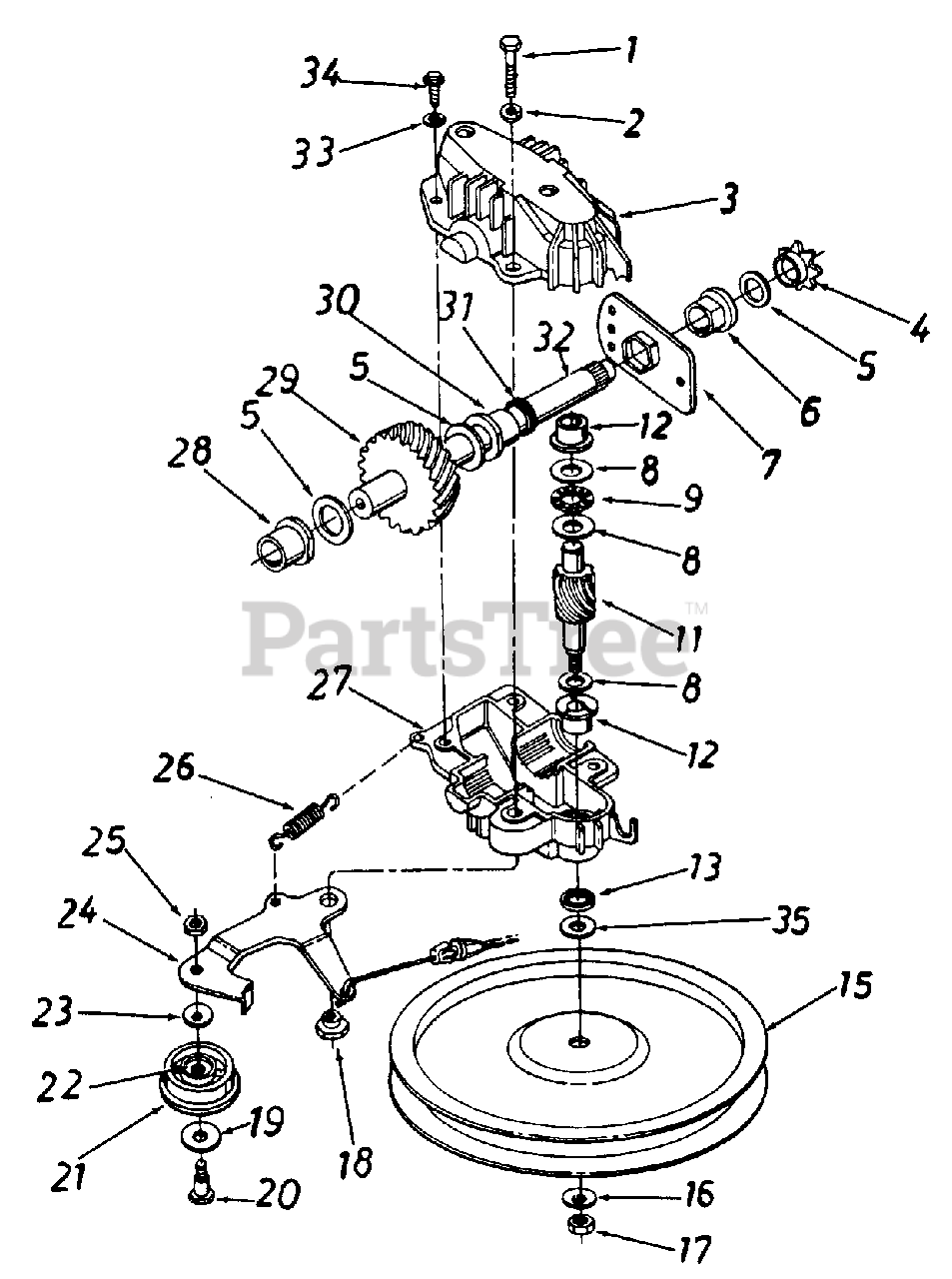

Hi-Wheel Self-Propelled Mower Part 4 Parts Diagram

  • Title

1

Cub Cadet 710-1062

SCREW-HEX

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

3

Cub Cadet 717-0418A

HOUSING HALF-UPPER

$

$

Not available

4

Cub Cadet 713-0400

SPROCKET-7T

$

$

Not available

5

Cub Cadet 736-0336

WASHER-FL
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 741-0413

BEARING-HEX FLANGE

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500A

BEARING-CUP HEX
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

WASHER-THRUST.382 X .684

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

BEARING-THRUST

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-1216

SHAFT-PINION 11 T
(Superseded to 917-1216)

$

$

Not available

12

Cub Cadet 748-0208A

BEARING-FLANGE

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

SEAL-OIL-.375 ID

$

$

Not available

15

Cub Cadet 756-0330A

PULLEY

$

$

Not available

16

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 10

0

17

Cub Cadet 712-0351

NUT-LH THD-1/4 X 28
(Superseded to 712-04326)

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-0440

SPACER-SHLD

$5.49

$

In Stock, Qty 6

0

19

Cub Cadet 736-0344

WASHER-FL .995 X .032

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0691

SCREW-SHLD
(Superseded to 938-0691)

$

$

Not available

21

Cub Cadet 756-0447

KIT-PULLEY
(Superseded to 753-0518)

$25.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 741-0482

BEARING-NEEDLE
(Superseded to 741-0875)

$

$

Not available

23

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 10

0

24

Cub Cadet 16502

BRACKET ASSY-IDLER

$

$

Not available

25

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet 717-0419A

HOUSING HALF-LOWER

$

$

Not available

28

Cub Cadet 741-0415

BEARING-FLANGE
(Superseded to 941-0415)

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0422

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

30

Cub Cadet 741-0414

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0213

SEAL-OIL

$9.99

$

In Stock, Qty 9

0

32

Cub Cadet 738-0607

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

33

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

WASHER-HEX
(Superseded to 936-0410)

$

$

Not available

Cub Cadet 717-0417B

TRANSMISSION-COMP
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
