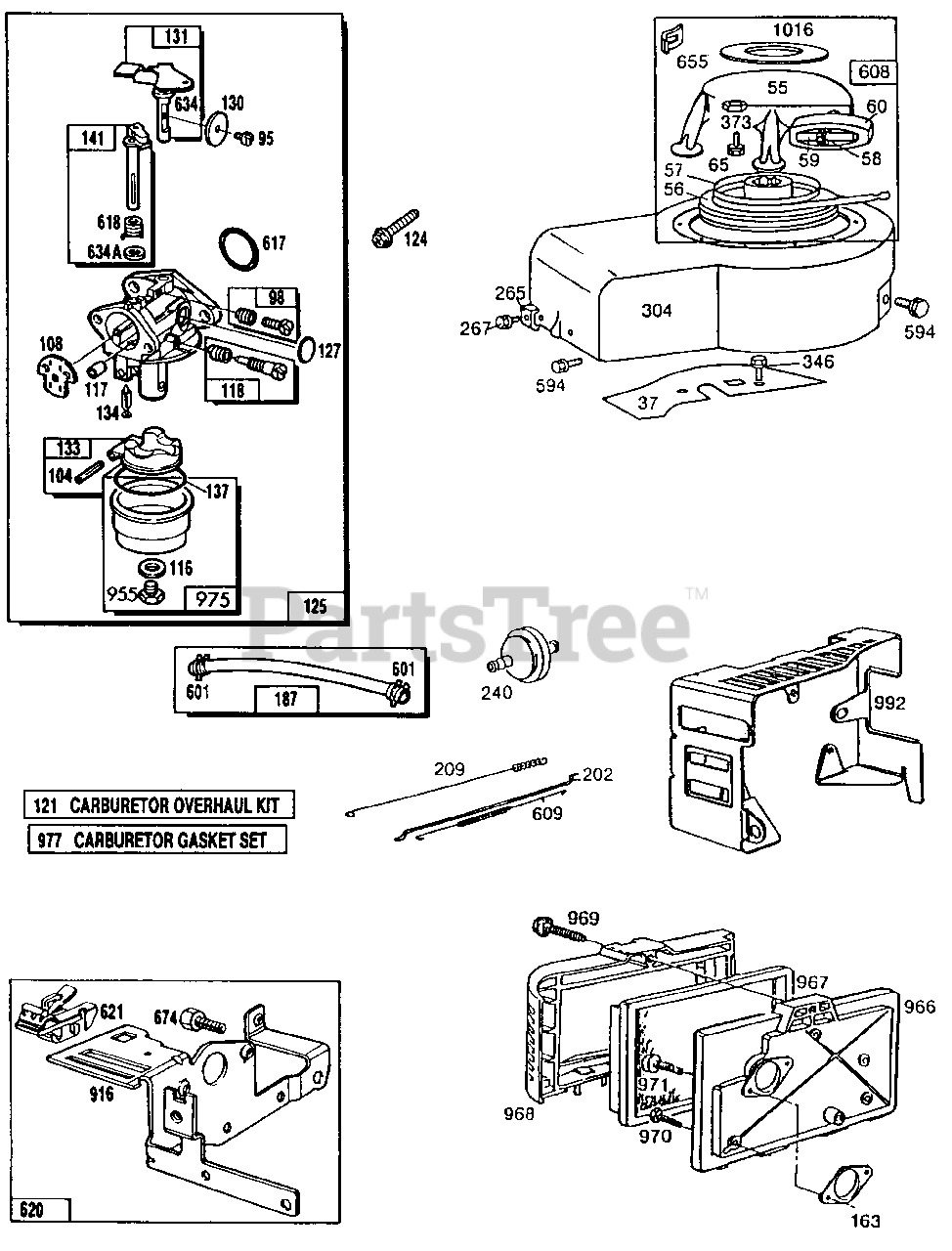

560 B (128-560B100) - Cub Cadet Walk-Behind Mower Engine (1988) B&S 5.0 HP-130702-0131-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

B&S 5.0 HP-130702-0131-01 Part 2 Parts Diagram

  • Title

37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley-Rewind Starter

$15.99

$

In Stock, Qty 13

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$16.99

$

In Stock, Qty 13

0

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.99

$

In Stock, Qty 6

0

59

Cub Cadet BS-230228

Pin-Starter Flope

$

$

Not available

60

Cub Cadet BS-66728

Grip-Starter Rope
(Superseded to BS-490652)

$6.49

$

In Stock, Qty 14

0

65

Cub Cadet BS-94128

Screw-Stamped Steel Rewind Starter Housing Mounting
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 11

0

95

Cub Cadet BS-94098

Screw-Throttle Valve to Shaft Sem
(Superseded to BS-691636)

$4.49

$

In Stock, Qty 12

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$8.49

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.49

$

In Stock, Qty 6

0

108

Cub Cadet BS-223471

Valve-Choke
(Superseded to BS-691182)

$10.99

$

Usually ships in 2-12 days

0

116

Gasket-Sealing (Available in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

117

Jet (Available in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

118

Cub Cadet BS-398670

Valve and Spring-Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

121

Cub Cadet BS-490931

Carburetor Overhaul Kit Mtg.
(Superseded to BS-494349)

$21.99

$

In Stock, only 1 left!

0

124

Cub Cadet BS-94119

Screw-Intake Elbow

$

$

Currently unavailable

125

Cub Cadet BS-490886

Carburetor Assembly

$

$

Not available

127

Plug-Welch (Available in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-398184

Shaft and Lever-Throttle

$

$

Not available

133

Cub Cadet BS-398187

Float Assembly-Carburetor

$10.99

$

In Stock, Qty 8

0

134

Cub Cadet BS-398188

Valve-Inlet (Includes Seat)

$6.99

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Available in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

141

Cub Cadet BS-398186

Shaft-Choke

$10.99

$

In Stock, only 1 left!

0

163

Cub Cadet BS-271840

Gasket-Air Cleaner

$

$

Not available

187

Cub Cadet BS-393815

Pipe-Fuel (Flexible)

$

$

Not available

202

Cub Cadet BS-262273

Link-Throttle

$

$

Currently unavailable

209

Cub Cadet BS-260711

Spring-Governor

$12.99

$

In Stock, only 2 left!

0

240

Cub Cadet BS-298090

Filter-Fuel (In Fuel Pipe)
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

265

Cub Cadet BS-221535

Clamp-Casing
(Superseded to BS-691024)

$3.99

$

In Stock, only 1 left!

0

267

Cub Cadet BS-93686

Screw-Clamp Mounting

$

$

Currently unavailable

304

Cub Cadet BS-490887

Housing-Blower

$

$

Not available

346

Cub Cadet BS-93705

Screw-Hex. Hd.
(Superseded to BS-690661)

$3.49

$

In Stock, only 2 left!

0

373

Cub Cadet BS-92987

Nut-Hex.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

594

Cub Cadet BS-93559

Screw-Blower Housing Mounting Sem

$

$

Not available

601

Cub Cadet BS-93053

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-390463

Starter Assembly-Rewind

$

$

Not available

609

Cub Cadet BS-260029

Spring-Throttle Link

$12.99

$

In Stock, only 4 left!

0

617

Cub Cadet BS-270344

Seal-Intake Elbow Tube
(Superseded to BS-270344S)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 6

0

618

Cub Cadet BS-262035

Spring-Choke Return

$7.49

$

Usually ships in 2-12 days

0

620

Cub Cadet BS-490195

Plate Assembly-Remote Carburetor Control

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$6.49

$

In Stock, Qty 18

0

634

Washer-Throttle Shaft (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

634A

Seal-Choke (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

674

Cub Cadet BS-94117

Screw-Bracket Mounting

$

$

Not available

916

Cub Cadet BS-280522

Rack-Gear

$9.49

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw-Bowl Mounting

$

$

Currently unavailable

966

Cub Cadet BS-399038

Base-Air Cleaner

$

$

Not available

967

Cub Cadet BS-397795

Filter-Air

$

$

Not available

968

Cub Cadet BS-280501

Cover-Air Cleaner

$25.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94120

Screw-Cover Mounting
(Superseded to BS-690670)

$6.49

$

In Stock, Qty 15

0

970

Cub Cadet BS-94118

Screw-Hex Head

$

$

Not available

971

Cub Cadet BS-94121

Screw-Air Cleaner
(Superseded to BS-692523)

$7.99

$

In Stock, only 4 left!

0

975

Cub Cadet BS-398191

Bowl Assembly-Carburetor

$

$

Not available

977

Cub Cadet BS-398183

Gasket Set-Carburetor
(Superseded to BS-498260)

$18.99

$

In Stock, Qty 20+

0

992

Cub Cadet BS-223801

Shroud-Air Cleaner

$

$

Currently unavailable

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, Qty 7
