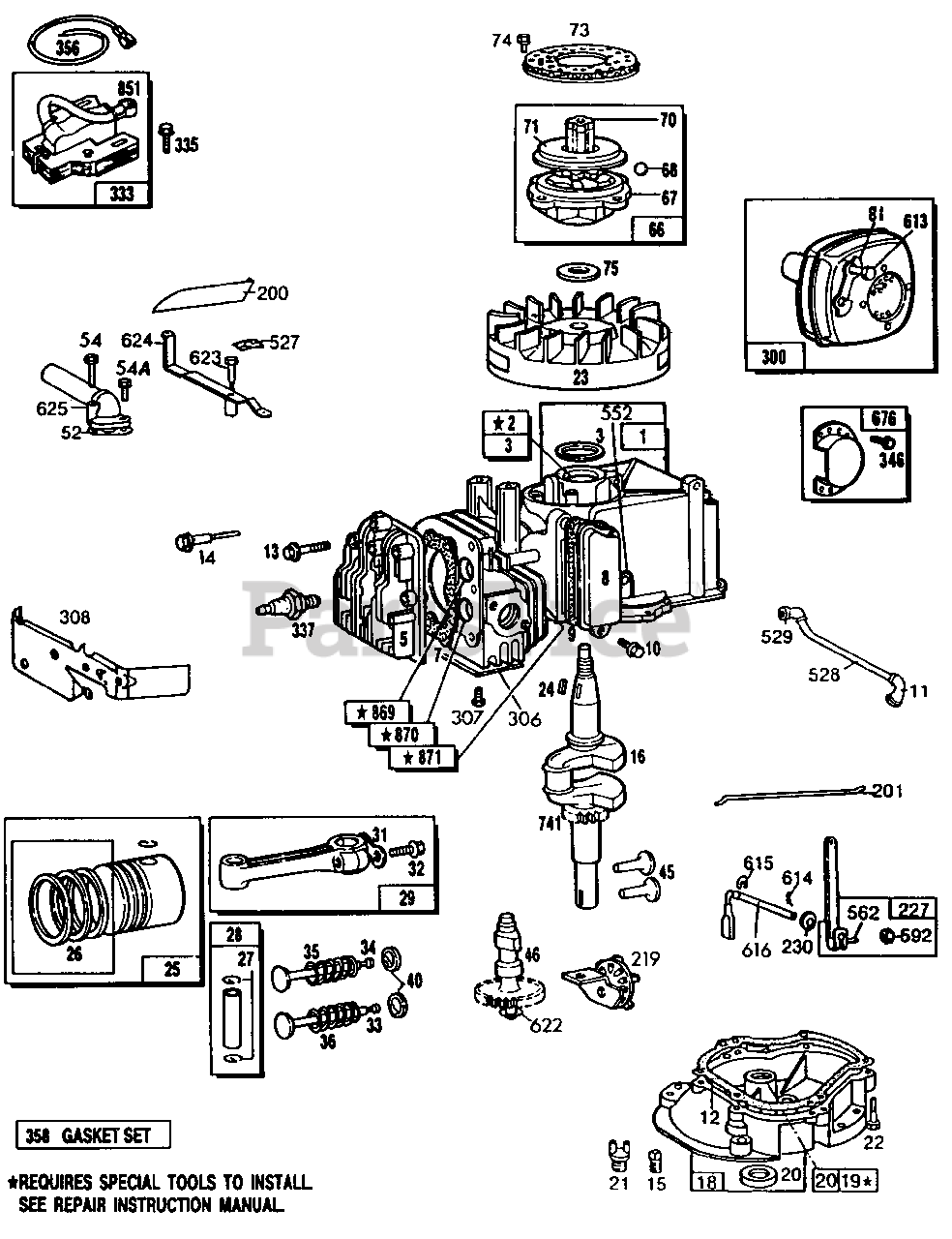

560 B (129-560B100) - Cub Cadet Walk-Behind Mower Engine (1989) B&S 5 HP 130702-0131-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

B&S 5 HP 130702-0131-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-398209

Cylinder Assembly

$167.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399268

Bushing Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-299819

Seal Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-211542

Head Cylinder

$

$

Not available

7

Cub Cadet BS-270383

Gasket Cylinder Head

Note: (Included in Gasket Set-Part No. 297616)

$

$

Not available

8

Cub Cadet BS-297261

Breather Valve Chamber

$

$

Not available

9

Cub Cadet BS-27549

Gasket Valve Cover

Note: (Included in Gasket Set-Part No. 297616)

$

$

Not available

10

Cub Cadet BS-93394

Screw Breather
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-67738

Grommet Breather

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-270069

Gasket Crankcase .015" Thick

Note: (Standard)

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270122

Gasket Crankcase .005" Thick

Note: (Included in Gasket Set-Part No. 297616)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270123

Gasket Crankcase .009" Thick

Note: (Included in Gasket Set-Part No. 297616)

$

$

Currently unavailable

13

Cub Cadet BS-93368

Screw Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 1 left!

0

14

Cub Cadet BS-93369

Screw Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-490852

Crankshaft

$

$

Not available

18

Cub Cadet BS-297587

Base Engine

$

$

Currently unavailable

19

Cub Cadet BS-297604

Bushing Oil Base

$

$

Currently unavailable

20

Cub Cadet BS-391485

Seal Oil

$9.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-66768

Plug Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-93032

Screw Base Mtg. Sem

$

$

Not available

23

Cub Cadet BS-399673

Flywheel Magneto

$76.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-393819

Piston Ass'y. Standard

$

$

Not available

Cub Cadet BS-393820

Piston Ass'y. .010" O.S.

$

$

Currently unavailable

Cub Cadet BS-393821

Piston Ass'y. .020" O.S.

$

$

Currently unavailable

Cub Cadet BS-393822

Piston Ass'y. .030" O.S.

$

$

Currently unavailable

26

PISTON RING SETS:

$

$

Not available

Cub Cadet BS-399067

Ring Set Std. Piston

$83.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-399014

Ring Set .010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-399015

Ring Set .020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-399016

Ring Set .030" O.S. Piston

$

$

Currently unavailable

27

Cub Cadet BS-26026

Lock Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y. Piston Standard

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Pin Ass'y. Piston .005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299429

Rod Ass'y. Connecting

$27.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-221876

Lock Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-92296

Screw Connecting Rod

$

$

Not available

33

Cub Cadet BS-260860

Valve Exhaust

$

$

Not available

34

Cub Cadet BS-261044

Valve Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26826

Spring Exhaust Valve

$7.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-93312

Retainer Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

Cub Cadet BS-230126

Pin Exhaust Valve Rotocap Retainer

$

$

Currently unavailable

Cub Cadet BS-231027

Retainer Exhaust Valve Rotocap

$

$

Currently unavailable

45

Cub Cadet BS-260642

Tappet Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear Cam

$

$

Not available

52

Cub Cadet BS-270070

Gasket - Intake Elbow Mounting

Note: (Included in Gasket Set-Part No. 297616)

$

$

Currently unavailable

54

Cub Cadet BS-93367

Screw Intake Elbow Mounting (8-32 x 1-1/8)

$

$

Currently unavailable

54A

Cub Cadet BS-93512

Screw Intake Elbow Mounting (8-32 x 53/64)

$

$

Currently unavailable

66

Cub Cadet BS-399671

Clutch Assembly Rewind Starter

$34.99

$

In Stock, Qty 15

0

67

Cub Cadet BS-394897

Housing Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer Clutch Retainer

$

$

Not available

73

Cub Cadet BS-221923

Screen Rewind Starter

$29.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-93490

Screw Rotating Screen Mtg. Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet BS-220865

Washer Spring

$

$

Currently unavailable

81

Cub Cadet BS-222263

Lock Muffler Screw

$

$

Not available

200

Cub Cadet BS-223886

Guide Air

$

$

Not available

201

Cub Cadet BS-260649

Link Governor

$9.99

$

Usually ships in 2-12 days

0

219

Cub Cadet BS-297249

Oil Slinger Gear, Governor and Bracket

$

$

Currently unavailable

227

Cub Cadet BS-391967

Lever Ass'y. Governor

$

$

Currently unavailable

230

Cub Cadet BS-222450

Washer Governor Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

300

Cub Cadet BS-393615

Muffler Exhaust
(Superseded to BS-494585)

$23.99

$

In Stock, Qty 10

0

306

Cub Cadet BS-223804

Shield Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93490

Screw Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

308

Cub Cadet BS-223803

Cover Cylinder Head

$

$

Currently unavailable

333

Cub Cadet BS-397358

Armature Magneto

$53.99

$

In Stock, only 2 left!

0

335

Cub Cadet BS-93414

Screw Armature Mtg. Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug Spark (1-1/2" High 37-42 mm)

$3.99

$

In Stock, only 1 left!

0

346

Cub Cadet BS-93705

Screw Hex. Hd.
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-398808

Wire Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-297616

Gasket Set

$

$

Not available

527

Cub Cadet BS-93376

Clip Breather Pipe

$

$

Currently unavailable

528

Cub Cadet BS-231497

Tube Breather

$

$

Currently unavailable

529

Cub Cadet BS-67608

Grommet Breather Tube

$

$

Not available

552

Cub Cadet BS-231078

Bushing Governor Shaft

$

$

Not available

562

Cub Cadet BS-92613

Bolt Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut Hex 10-24

$

$

Not available

613

Cub Cadet BS-93935

Shoulder Screw Hex Hd.
(Superseded to BS-691413)

$5.99

$

In Stock, only 2 left!

0

614

Cub Cadet BS-93306

Cotter Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer E-Ring

$5.99

$

In Stock, only 4 left!

0

616

Cub Cadet BS-231076

Crank Governor

$

$

Not available

622

Cub Cadet BS-260676

Washer Spring

Note: (Used between cam gear boss and oil slinger bracket)

$

$

Currently unavailable

623

Cub Cadet BS-93838

Screw Shoulder

$

$

Not available

624

Cub Cadet BS-297252

Lever Linkage

$

$

Currently unavailable

625

Cub Cadet BS-490193

Elbow and Tube Intake

$

$

Currently unavailable

676

Cub Cadet BS-393757

Deflector Exhaust (Side Outlet)
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-261696

Gear Timing (Plain Bearing)

$52.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Cable Terminal Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-211787

Seat Intake Valve

Note: (Standard)

$

$

Not available

870

Cub Cadet BS-211436

Seat Exhaust Valve (Cobalite)

$

$

Currently unavailable

871

Cub Cadet BS-262001

Guide Exhaust Valve (Brass)

$13.99

$

Usually ships in 2-12 days

0
