560 HH (954140056-A) - Husqvarna Walk-Behind Mower (1998-02) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

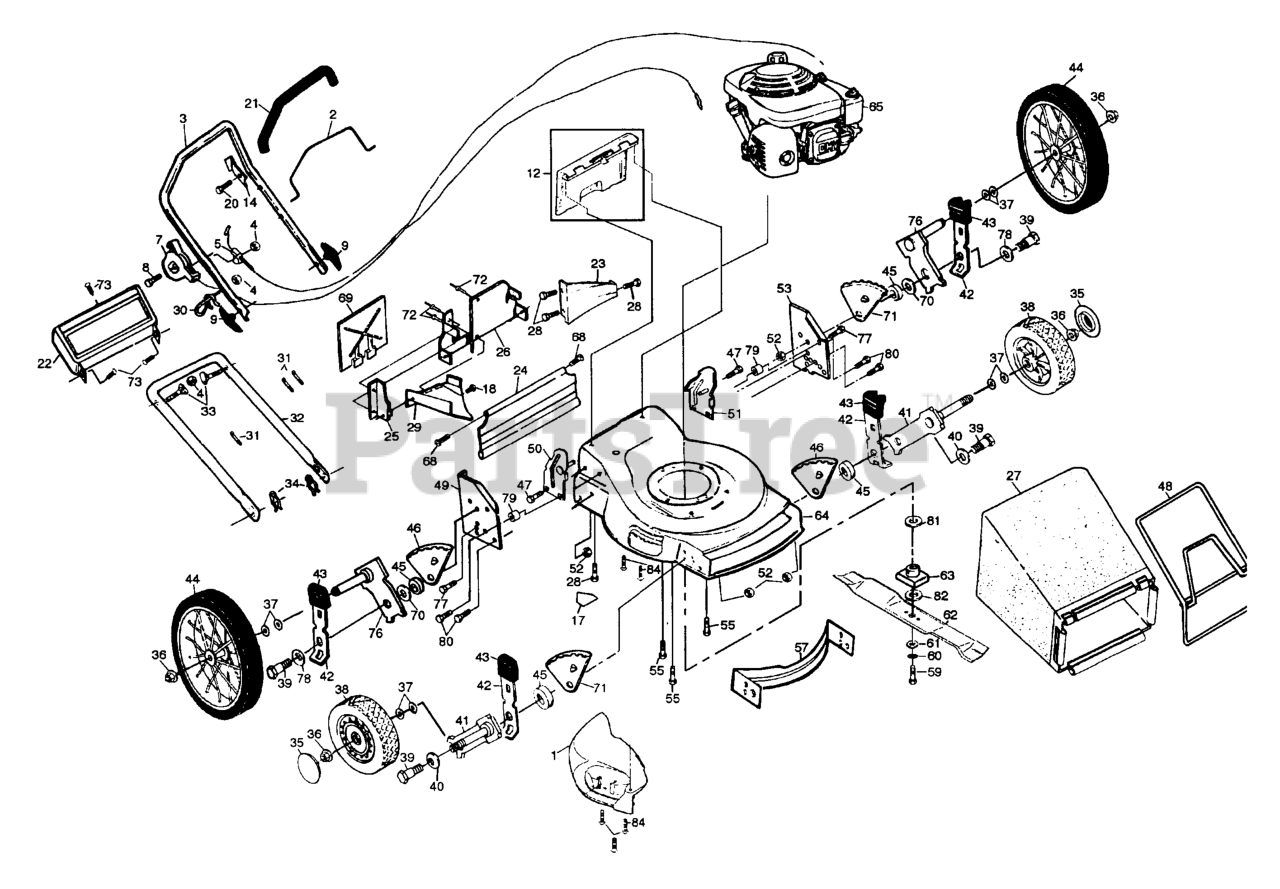

Rotary Lawn Mower Parts Diagram

  • Title

1

Husqvarna 532162358

QUICK TRIM DOOR

$

$

Not available

2

Husqvarna 532850735

CONTROL BAR/BLACK

$

$

Not available

3

Husqvarna 532131815

UPPER HANDLE
(Superseded to 532166267)

$

$

Not available

4

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

7

Husqvarna 532163340

THROTTLE CONTROL
(Superseded to 532147758)

$

$

Not available

8

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

12

Husqvarna 532151023

KIT.DOOR.REAR.22.STEEL.BLACK

$

$

Not available

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 17

0

21

Husqvarna 532155890

FOAM GRIP
(Superseded to 585161003)

$

$

Not available

22

Husqvarna 532157070

TRIM PLATE

$

$

Not available

23

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

24

Husqvarna 532140540

REAR SKIRT
(Superseded to 532413160)

$14.99

$

In Stock, Qty 6

0

25

Husqvarna 532138860

SIDE BAFFLE

$

$

Not available

26

Husqvarna 532162337

BACK PLATE
(Superseded to 532156374)

$

$

Not available

27

Husqvarna 532800386

GRASS BAG
(Superseded to 532134048)

$

$

Not available

28

Husqvarna 532054583

SCREW

$

$

Not available

29

Husqvarna 532125376

DISCHARGE BAFFLE
(Superseded to 532133190)

$

$

Not available

30

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

31

Husqvarna 532066246

Wire Tie Cable Clips

$

$

Currently unavailable

32

Husqvarna 532157082

HANDLE, LOWER
(Superseded to 532157081)

$

$

Not available

33

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

34

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

35

Husqvarna 532157008

HUBCAP.8".GREY

$

$

Not available

36

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

37

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$5.99

$

In Stock, only 2 left!

0

38

Husqvarna 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$

$

Not available

39

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

40

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$

$

Not available

41

Husqvarna 532151254

AXLE ARM
(Superseded to 532145937)

$9.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532125066

SELECTOR SPRING

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

44

Husqvarna 532088017

WHEEL TIRE PM
(Superseded to 532752063)

$

$

Not available

45

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532800368

WHL ADJ BRKT LF/RR

$

$

Not available

47

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 532088614

CATCHER.FRAME.WALK

$

$

Not available

49

Husqvarna 532151947

BRACKET.SUPPORT.RT.BLACK

$

$

Not available

50

Husqvarna 532153404

HANDLE BRACKET (RIGHT)

$

$

Not available

51

Husqvarna 532153405

HANDLE BRACKET (LEFT)

$

$

Not available

52

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

53

Husqvarna 532154687

SUPPORT BRACKET (LH)
(Superseded to 532700172)

$

$

Not available

55

Husqvarna 532146653

Hex Head Thread Rolling Screw 3/8-16 x 1

$2.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532138871

BAFFLE
(Superseded to 532170031)

$

$

Not available

59

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

60

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532141114

BLADE 22"

$29.99

$

In Stock, only 2 left!

0

63

Husqvarna 532144331

BLADE ADAPTER
(Superseded to 532144229)

$

$

Not available

64

Husqvarna 532150982

DECK ASSEMBLY
(Superseded to 532170609)

Note: (Includes Key No. 17)

$

$

Not available

65

Engine - Honda

Note: Model No. GXV140

$

$

Not available

68

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

69

Husqvarna 532125368

MULCHER PLATE
(Superseded to 532166649)

$

$

Not available

70

Husqvarna 532088348

WASHER.FLAT.1/2

$3.99

$

In Stock, Qty 16

0

71

Husqvarna 532800370

WHL ADJ BRKT RF/LR
(Superseded to 532140058)

$

$

Not available

72

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532701477

FASTENER

$

$

Not available

76

Husqvarna 532125323

AXLE ARM ASSEMBLY (REAR)
(Superseded to 532751333)

$

$

Not available

77

Husqvarna 532149588

SCREW

$

$

Not available

78

Husqvarna 532061651

WASHER
(Superseded to 532401630)

$4.99

$

In Stock, Qty 6

0

79

Husqvarna 532086969

SPACER

$

$

Not available

80

Husqvarna 874760612

BOLT

$3.99

$

In Stock, Qty 8

0

81

Husqvarna 532067510

WASHER
(Superseded to 819131016)

$3.49

$

In Stock, only 4 left!

0

82

Husqvarna 532148353

WASHER

$

$

Not available

84

UNKNOWN

$

$

Not available

85

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

Husqvarna 532162333

Owner's Manual

$

$

Not available
