560 XP - Husqvarna Chainsaw (2011-06) HEATED HANDLES Parts Diagram

Chainsaw

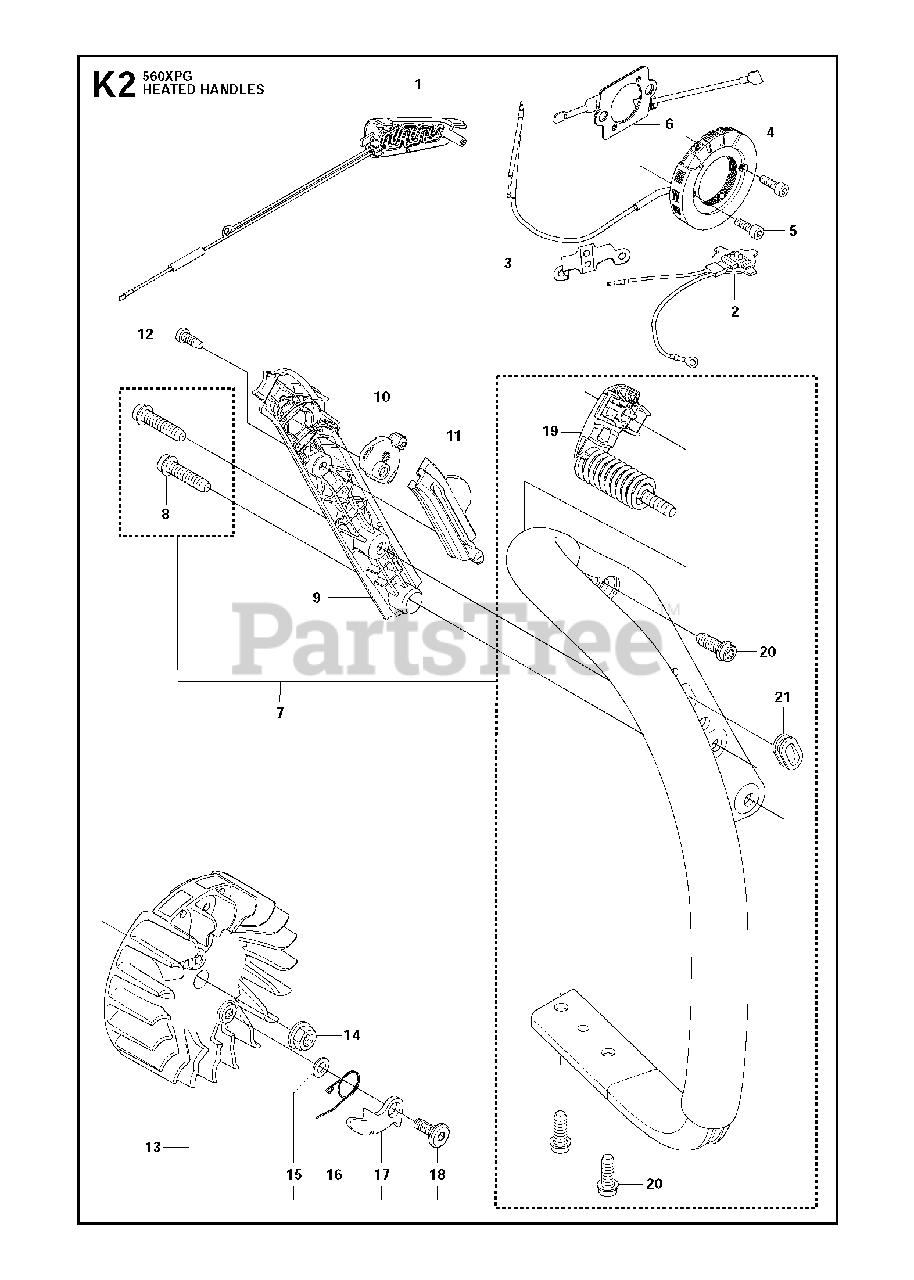

HEATED HANDLES Parts Diagram

  • Title

1

Husqvarna 522741901

HANDLE INSERT

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522665801

THERMOSTAT ASSY

$113.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537210801

HOLDER

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 522611401

GENERATOR STATOR
(Superseded to 587056601)

$182.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544444301

SCREW

$

$

Not available

6

Husqvarna 522630101

FOIL ELEMENT

$

$

Not available

7

Husqvarna 575388902

FRONT HANDLE
(Superseded to 575388904)

$136.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503218876

SCREW

Note: . 7

$5.99

$

In Stock, Qty 7

0

9

Husqvarna 505157401

COVER

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 510097801

CONTACT PLATE

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537252501

HANDLE

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503212813

SCREW

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 504872402

FLYWHEEL ASSY

$148.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 6

0

15

Husqvarna 503230042

WASHER

Note: . 13

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna 501673501

SPRING

Note: . 13

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 501673201

PAWL

Note: . 13

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 501819901

SCREW M5X14

Note: . 13

$5.49

$

In Stock, Qty 5

0

19

Husqvarna 505129701

ANTIVIBRATION ELEMENT
(Superseded to 505129705)

Note: . 7

$28.99

$

In Stock, only 2 left!

0

20

Husqvarna 503218872

SCREW IHSCFT

Note: . 7

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 537088301

GROMMET

Note: . 7

$5.99

$

Usually ships in 3-10 days

0
