560 XP - Husqvarna Chainsaw (2013-01) CRANKCASE Parts Diagram

Chainsaw

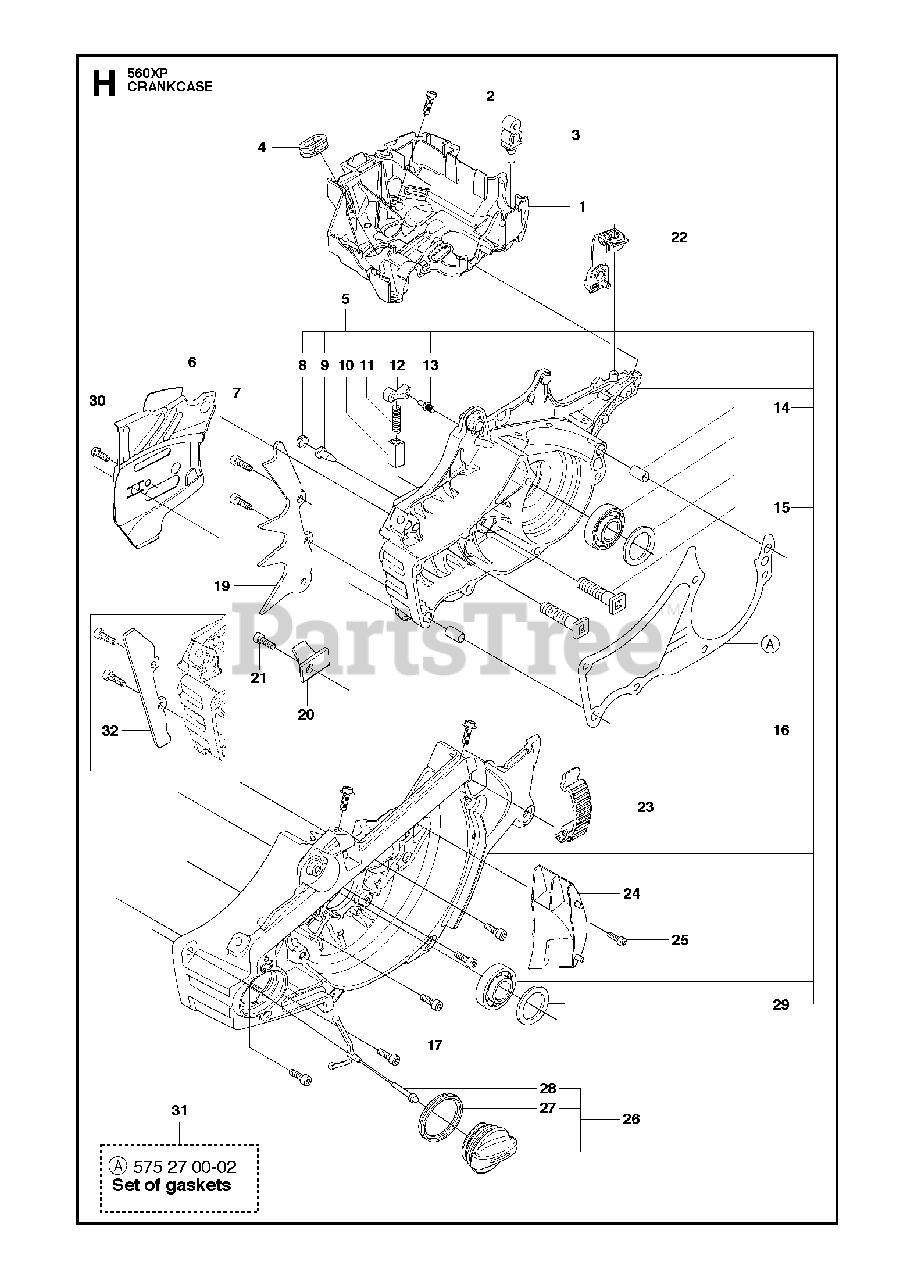

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 505158601

CARBURETTOR AREA BASE

$13.84

$

Usually ships in 3-10 days

0

2

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna 537088301

GROMMET

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 575380201

CRANKCASE ASSY

$239.24

$

Usually ships in 3-10 days

0

6

Husqvarna 505201101

CHAIN GUIDE PLATE

$15.99

$

In Stock, only 1 left!

0

7

Husqvarna 503212616

SCREW

$6.49

$

In Stock, Qty 9

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

Note: . 5

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: . 5

$4.49

$

In Stock, Qty 14

0

10

Husqvarna 537210701

GUIDE

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

12

Husqvarna 505201201

CATCH

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503751801

PIN

Note: . 5

$7.99

$

In Stock, Qty 8

0

14

Husqvarna 501270801

SLEEVE

Note: . 5

$8.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505217301

BAR BOLT

Note: . 5

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505111501

SCREW IHSCM

Note: . 5

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 503200803

SCREW IHSCM

$5.99

$

In Stock, only 3 left!

0

19

Husqvarna 577935201

SPIKES

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 537377902

CHAIN CATCHER

$9.49

$

In Stock, Qty 19

0

21

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 505125801

DEFLECTION LIMITER

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503894703

CLIP GRAY

$11.99

$

In Stock, Qty 14

0

24

Husqvarna 520291201

AIR NOZZLE
(Superseded to 588065501)

$11.99

$

In Stock, only 1 left!

0

25

Husqvarna 510020601

SCREW IHSCM
(Superseded to 526818101)

$6.49

$

In Stock, only 3 left!

0

26

Husqvarna 544111201

TANK CAP ASSY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 537215001

SEALING

Note: . 26

$8.99

$

In Stock, Qty 17

0

28

Husqvarna 503578903

HOLDER
(Superseded to 503578901)

Note: . 26

$9.99

$

In Stock, Qty 15

0

29

Husqvarna 525391201

RADIAL SEAL

Note: . 5

$20.99

$

In Stock, only 2 left!

0

30

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 575270002

GASKET KIT
(Superseded to 575270003)

Note: A set of gaskets

$21.99

$

In Stock, only 1 left!

0

32

Husqvarna 574889801

RP ENCLOSED KIT
(Superseded to 525347601)

$10.99

$

Usually ships in 3-10 days

0
