5600002 - Snapper 48" Fast Vac Twin Grass Catcher (SN: 2014749759 & Below) Blower Group Parts Diagram

48" Fast Vac Twin Grass Catcher

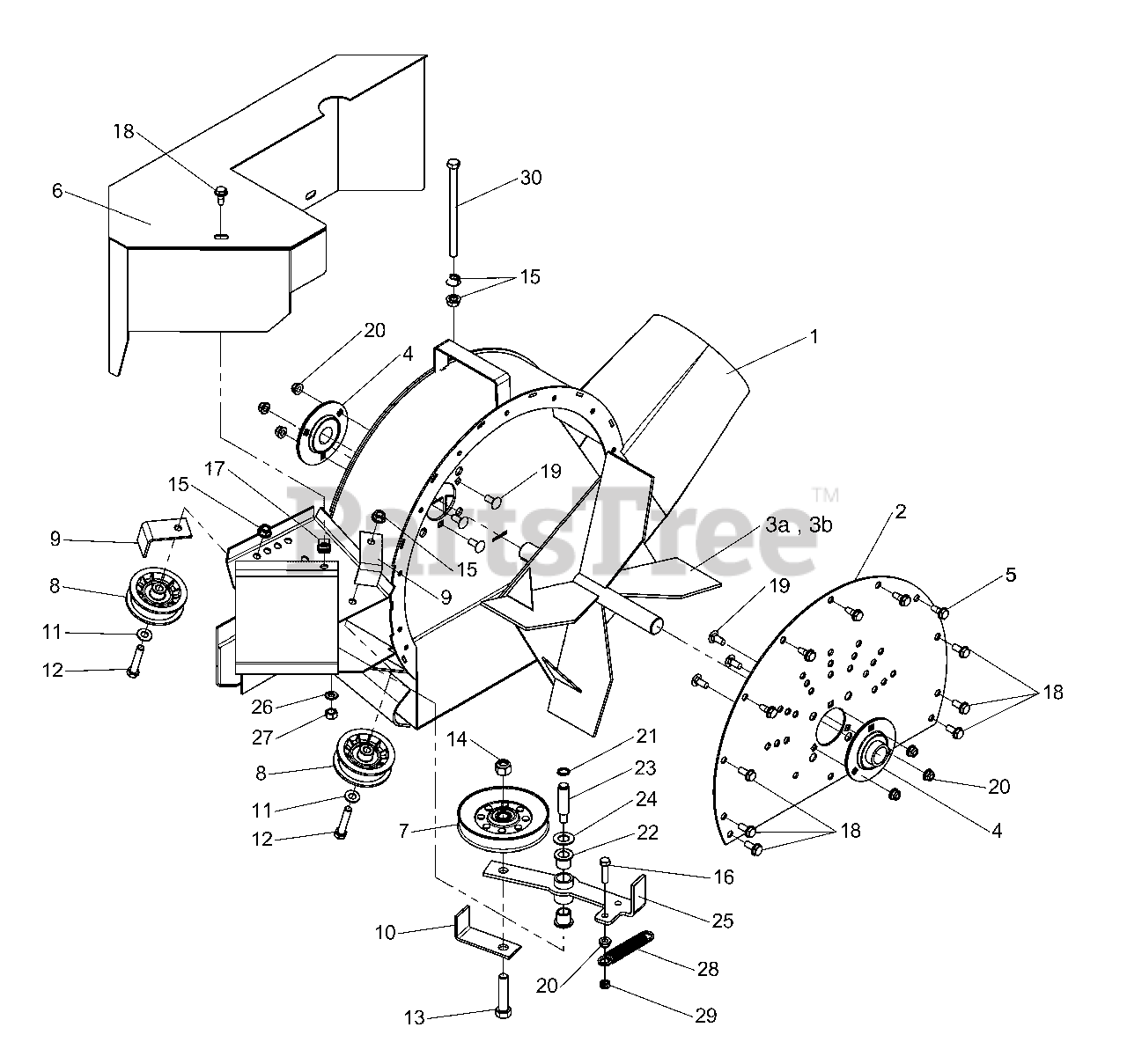

Blower Group Parts Diagram

  • Title

1

Snapper 5403723A

BLOWER HOUSING
(Superseded to 5403723ASM)

$762.99

$

Usually ships in 2-12 days

0

2

Snapper 5403750A

BACK PLATE
(Superseded to 5403750ASM)

$77.99

$

Usually ships in 2-12 days

0

3a

Snapper 5407093

WELD, IMPELLER, FAST-VAC BLOWER
(Superseded to 5407093YP)

Note: (Production Date 04/07/2010 & Later)

$281.99

$

Usually ships in 2-12 days

0

3b

Snapper 5403741

WELD, IMPELLER, FAST-VAC BLOWER
(Superseded to 5403741SM)

Note: (Production Date 04/06/2010 & Earlier)

$265.99

$

Usually ships in 2-12 days

0

4

Snapper 7100021

BEARING, FLANGE, 1" Bore
(Superseded to 7100021SM)

$42.99

$

In Stock, only 3 left!

0

5

Snapper 7091541

BOLT, 5/16-18 X 3/4" Self Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 5403736A

BELT GUARD
(Superseded to 5403736ASM)

$145.99

$

Usually ships in 2-12 days

0

7

Snapper 5021097

PULLEY, IDLER V-NOTCH, 5"
(Superseded to 5021097SM)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 1721133

PULLEY, IDLER, 2.75 DIA X .376 ID
(Superseded to 5106480FS)

$33.99

$

Usually ships in 2-12 days

0

9

Snapper 5403749A

BELT KEEPER
(Superseded to 5403749ASM)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 5403740A

KEEPER, BELT TENSIONER
(Superseded to 5403740ASM)

$21.99

$

Usually ships in 2-12 days

0

11

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

In Stock, only 2 left!

0

14

Snapper 5025056

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 5025056FS)

$4.99

$

In Stock, only 3 left!

0

15

Snapper 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 17

0

16

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

17

Snapper 5022308

U-CLIP, 5/16-18
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

18

Snapper 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 5025145X6

CARRIAGE BOLT, 5/16-18 X 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7010776

RETAINING RING, 1/2"
(Superseded to 7010776YP)

$4.49

$

In Stock, Qty 7

0

22

Snapper 7014409

FLANGE BEARING, 9/16"
(Superseded to 7014409SM)

$7.49

$

In Stock, only 4 left!

0

23

Snapper 7044995

IDLER STUD
(Superseded to 7044995SM)

$21.99

$

Usually ships in 2-12 days

0

24

Snapper 7091804

FLAT WASHER, 9/16" Narrow
(Superseded to 5103679)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 5103677A

WELD, IDLERARM, FAST-VAC - BLK
(Superseded to 5411358)

$82.99

$

Usually ships in 2-12 days

0

26

Snapper 5025171

WASHER, 3/8 Lock
(Superseded to 5025171SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.99

$

In Stock, Qty 6

0

29

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 12

0
