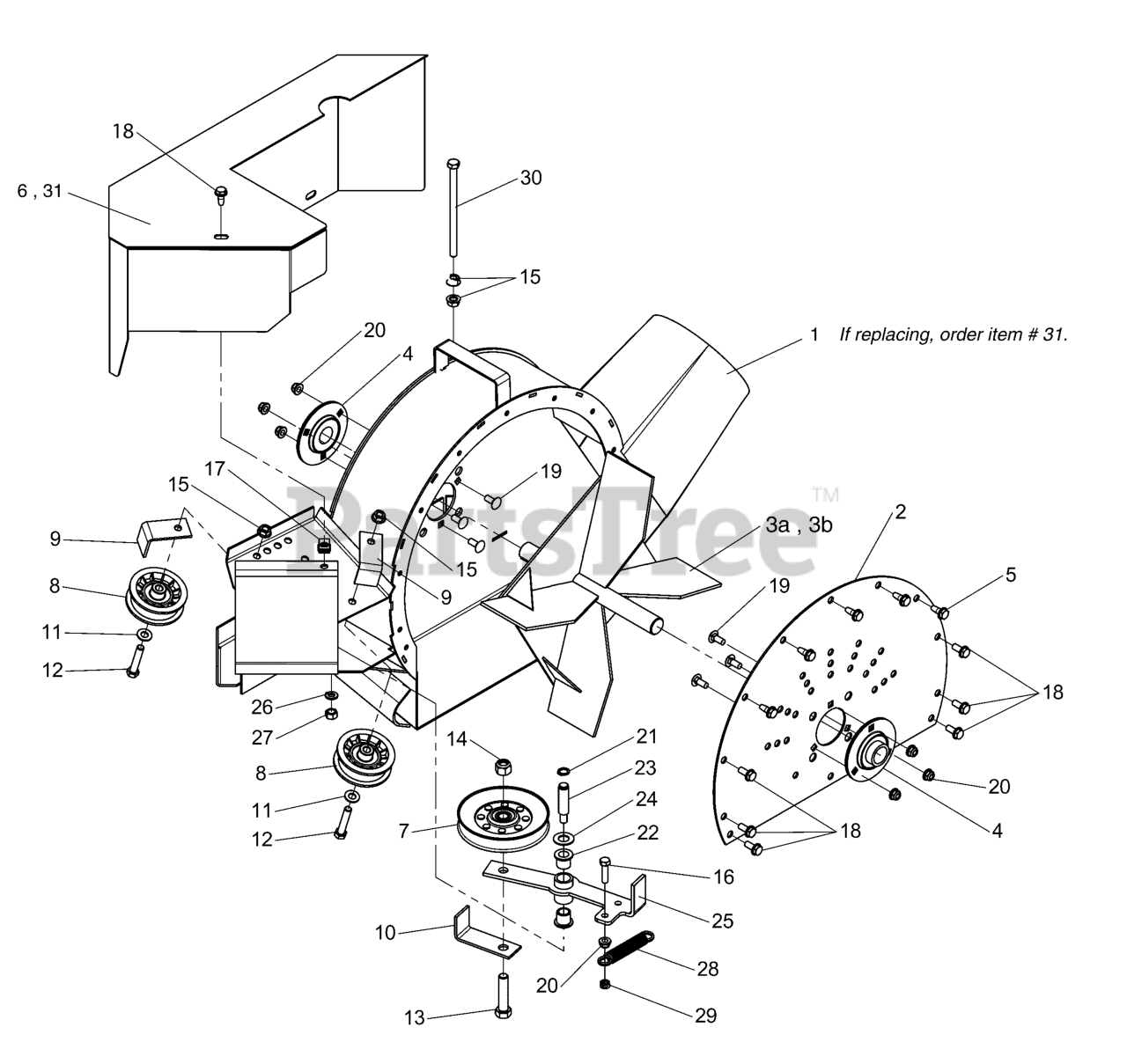

5600007 - Ferris 52" 3-Bag Grass Collection System for IS1000Z Blower Group Parts Diagram

52" 3-Bag Grass Collection System for IS1000Z

Blower Group Parts Diagram

  • Title

1

Ferris 5403723A

WELD, BLOWER HOUSING - FAST VAC - BLK

$

$

Currently unavailable

2

Ferris 5403750A

PLATE, BACK - BLK

$

$

Currently unavailable

3a

Ferris 5407093

WELD, IMPELLER, FAST-VAC BLOWER

Note: (Production Date 04/07/2010 & Later)

$

$

Currently unavailable

3b

Ferris 5403741

WELD, IMPELLER, FAST VAC BLOWER

Note: (Production Date 04/06/2010 & Earlier)

$

$

Not available

4

Ferris 7100021

BEARING, FLANGE, 1" Bore
(Superseded to 7100021SM)

$41.99

$

In Stock, Qty 5

0

5

Ferris 7091541

BOLT, 5/16-18 X 3/4" Self Tap

$

$

Not available

6

Ferris 5403736A

WELD, BELT GUARD, BLOWER - BLK

Note: (S/N: 07/15/2013 & Earlier)

$

$

Currently unavailable

7

Ferris 5021097

PULLEY-IDLER-V, 4.85OB, .506 ID, ,94W, STL
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

8

Ferris 5106480

PULLEY, IDLER, 2.75"OD X .37"ID, INSERT
(Superseded to 5106480FS)

$32.99

$

In Stock, only 2 left!

0

9

Ferris 5403749A

KEEPER, BELT - BLK

$

$

Currently unavailable

10

Ferris 5403740A

RETAINER, BELT - BLK

$

$

Currently unavailable

11

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, Qty 6

0

13

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

15

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

17

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

18

Ferris 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 7

0

19

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 7010776

RETAINING RING, 1/2"
(Superseded to 7010776YP)

$3.99

$

In Stock, only 4 left!

0

22

Ferris 7014409

FLANGE BEARING, 9/16"
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 10

0

23

Ferris 7044995

IDLER STUD
(Superseded to 7044995SM)

$20.99

$

Usually ships in 2-12 days

0

24

Ferris 7091804

FLAT WASHER, 9/16" Narrow
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5103677A

WELD, IDLERARM, FAST-VAC - BLK
(Superseded to 5411358)

$78.99

$

Usually ships in 2-12 days

0

26

Ferris 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

27

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

29

Ferris 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

30

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 9

0

31

Ferris 5411464A

WELD, Fast-Vac Guard - BLK

Note: (S/N: 07/15/2013 & Later)

$

$

Not available
