5600149 - Simplicity 52" Collection System for Citation Models (SN: 2012628763 & Above) Triple Catcher Mount Group (268tcm0) Parts Diagram

52" Collection System for Citation Models

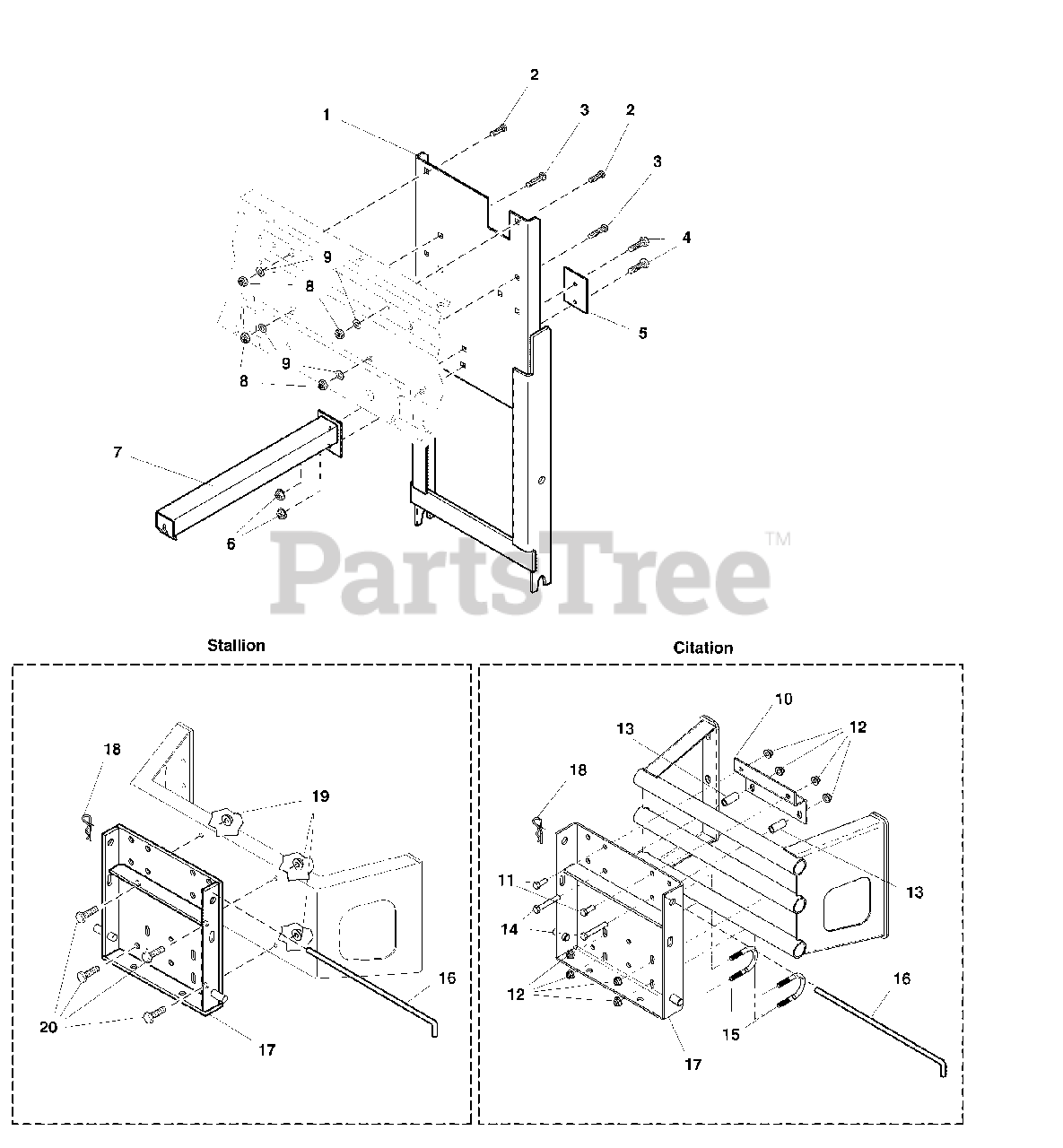

Triple Catcher Mount Group (268tcm0) Parts Diagram

  • Title

1

Simplicity 1723437ASM

SUPPORT ASSEMBLY

$

$

Not available

2

Simplicity 5025145X6SM

CARRIAGE BOLT, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 25145-10

CARRIAGE BOLT, 5/16-18 x 1-1/4

$

$

Not available

4

Simplicity 5025011X6SM

BOLT, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 5046829ASM

REINFORCEMENT PLATE

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931277SM

NUT, 5/16-18 Hex Small Serrated Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 5046831A

COVER LATCH ARM
(Superseded to 5046831AYP)

$67.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025057SM

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5400129A

ADAPTER PLATE
(Superseded to 5400129ASM)

$33.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025013X8SM

BOLT, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5048264SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025013X20SM

BOLT, 3/8-16 x 2-1/2
(Superseded to 84007037)

$2.99

$

In Stock, Qty 20+

0

15

Simplicity 5100009SM

U-BOLT, 3/8 X 1-1/4

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1717085SM

HITCH ROD

$53.99

$

In Stock, only 2 left!

0

17

Simplicity 1723436SM

HITCH PLATE

$142.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960033SM

HAIR PIN CLIP

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 5025013X8SM

BOLT, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0
