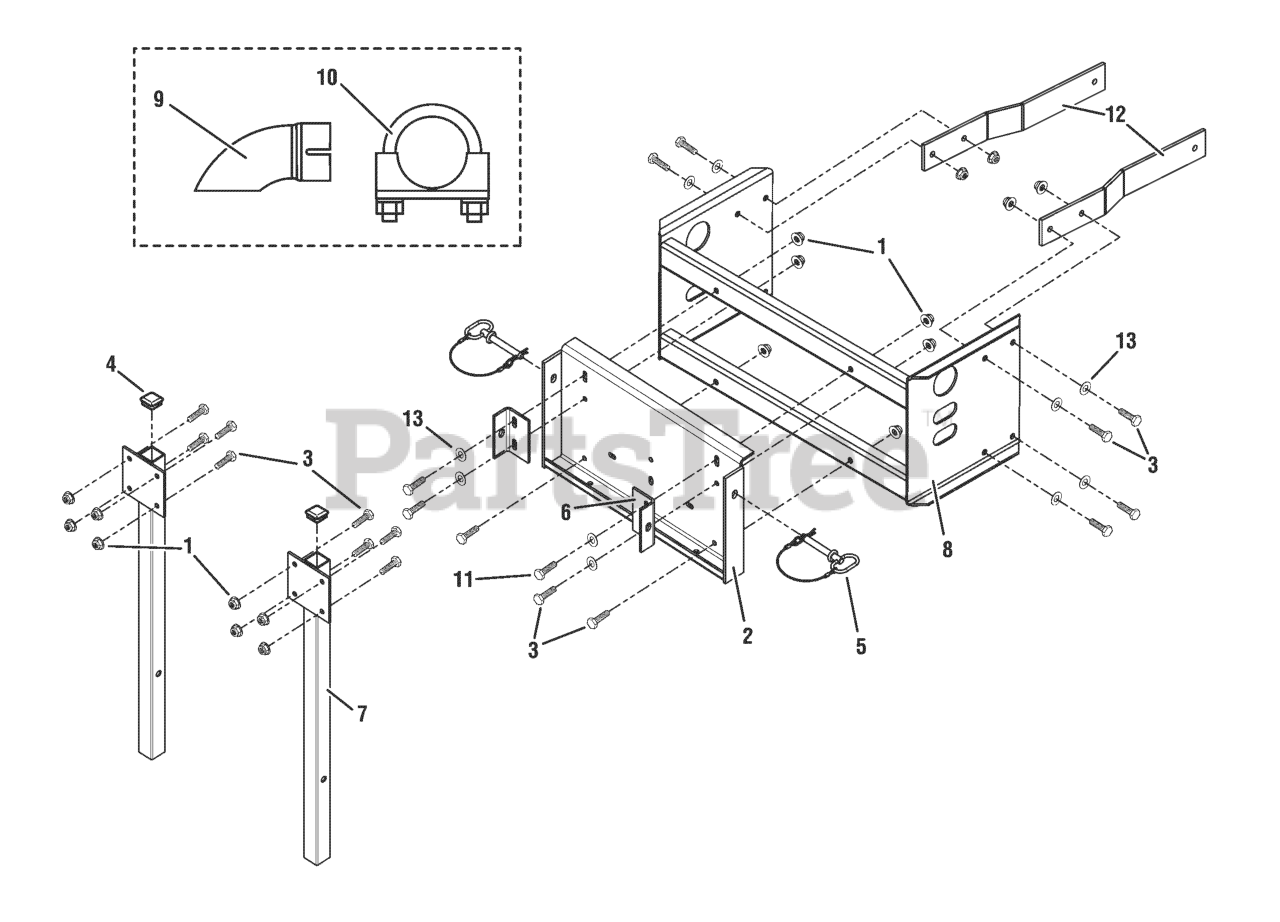

5600181 - Snapper Pro 61" 3-Bag Grass Collection System for NZM Bagger Mount Group Parts Diagram

61" 3-Bag Grass Collection System for NZM

Bagger Mount Group Parts Diagram

  • Title

1

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

2

Replace with: 5422549AA

Note: (s/n: 11/02/2021 & below)

$

$

Not available

2

Snapper Pro 5422549AA

WELD, 3-BAG MOUNT, ALL - BLK
(Superseded to 5422549AAFS)

Note: (s/n: 11/04/2021 & above)

$225.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

4

Snapper Pro 5022848

CAP, PLASTIC, 1-1/2 X 1-1/2
(Superseded to 5022848SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5100013

PIN, HITCH, .50 X 3.25 W/ LAY
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5402665A

MOUNT, TAB, BLACK
(Superseded to 5402665AYP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5403976A

WELD, MOUNT, POST NZM - BLK

$

$

Currently unavailable

8

Snapper Pro 5403974A

WELD, BAGGER MOUNT NZM

$

$

Currently unavailable

9

Snapper Pro 3039122

ELBOW, EXHAUST, KOH. 24-265-07-S

$

$

Not available

10

Snapper Pro 3039123

CLAMP, MUFFLER, 47-237-04-S
(Superseded to 3039123YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5404038A

BRACKET, REAR GUARD MOUNT - BLK

$

$

Currently unavailable

13

Snapper Pro 5025163

3/8 STD WASHER

$

$

Currently unavailable
