5600181 - Snapper Pro 61" 3-Bag Grass Collection System for NZM Blower Mount & Drive Group Parts Diagram

61" 3-Bag Grass Collection System for NZM

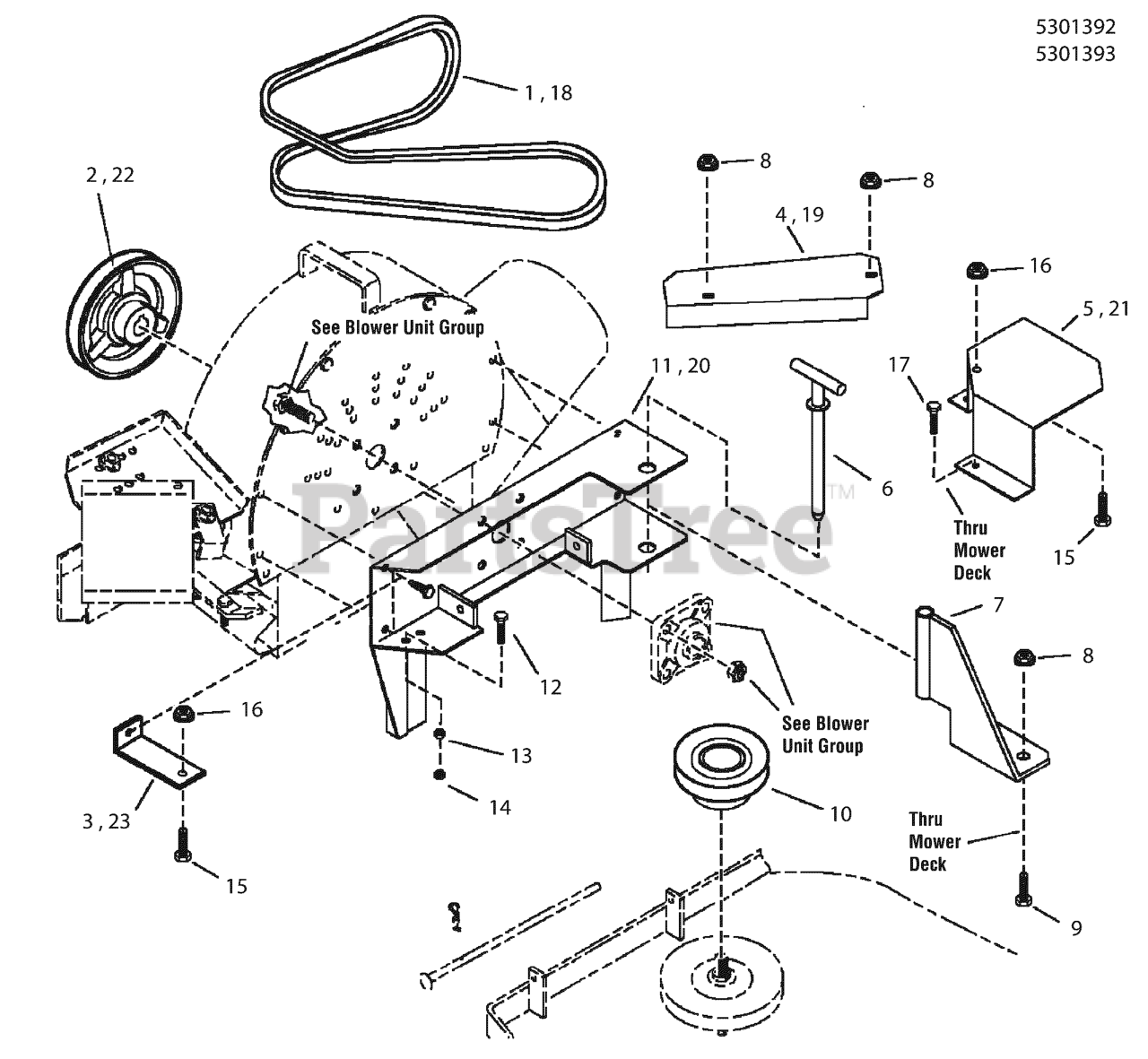

Blower Mount & Drive Group Parts Diagram

  • Title

1

Snapper Pro 3036323YP

BELT, Blower Unit Drive, A92

Note: (52" DECK ONLY)

$58.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 3046806

PULLEY, BLOWER INPUT
(Superseded to 3046806YP)

Note: (52" DECK ONLY)

$64.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7033617A

BRKT, GUARD SUPPORT - BLK

Note: (52" DECK ONLY)

$

$

Currently unavailable

4

Snapper Pro 3037163A

GUARD, BELT, MODEL 52 - BLK

Note: (52" DECK ONLY)

$

$

Currently unavailable

5

Snapper Pro 7033618A

COVER, BELT, DECK - BLK

Note: (52" DECK ONLY)

$

$

Currently unavailable

6

Snapper Pro 3032118

WELD, PIN, T-HANDLE LOCKING, ZP
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 3027508A

WELD, DECK MOUNT BRKT. - BLK

$

$

Currently unavailable

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

9

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

10

Snapper Pro 3036324

PULLEY, SPINDLE, FAST VAC
(Superseded to 3036324YP)

$75.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 3027506A

WELD, BLOWER MOUNT, 52 - BLK
(Superseded to 3027506AFS)

Note: (52" DECK ONLY)

$355.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025042

NUT, 5/16-18 HEX TOP LOCK

$

$

Currently unavailable

15

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

16

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025059X6

BOLT, 5/16-18 X 3/4, SELF-TAPPING
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5022844

BELT, A-SEC, 92.00EL, ARAMID, WRPD
(Superseded to 5022844FS)

Note: (61" DECK ONLY)

$59.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7033847A

GUARD, BELT, 61 NZM - BLK

Note: (61" DECK ONLY)

$

$

Currently unavailable

20

Snapper Pro 7033873A

WELD, MOUNTING BRACKET, 61" NZM - BLK

Note: (61" DECK ONLY)

$

$

Currently unavailable

21

Snapper Pro 7033849A

GUARD, PULLEY, 61 NZM - BLK

Note: (61" DECK ONLY)

$

$

Currently unavailable

22

Snapper Pro 3046809

PULLEY, BLOWER, 61" SNAPPER
(Superseded to 3046809YP)

Note: (61" DECK ONLY)

$136.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7033827A

BRKT, MOUNTING, LOWER GUARD - BLK

Note: (61" DECK ONLY)

$

$

Currently unavailable
