5600347 - Snapper Pro 61" iCD Fast-Vac 3-Bag Soft Top Grass Collection System Blower Mount Group - 61" Models, FAST-Vac Parts Diagram

61" iCD Fast-Vac 3-Bag Soft Top Grass Collection System

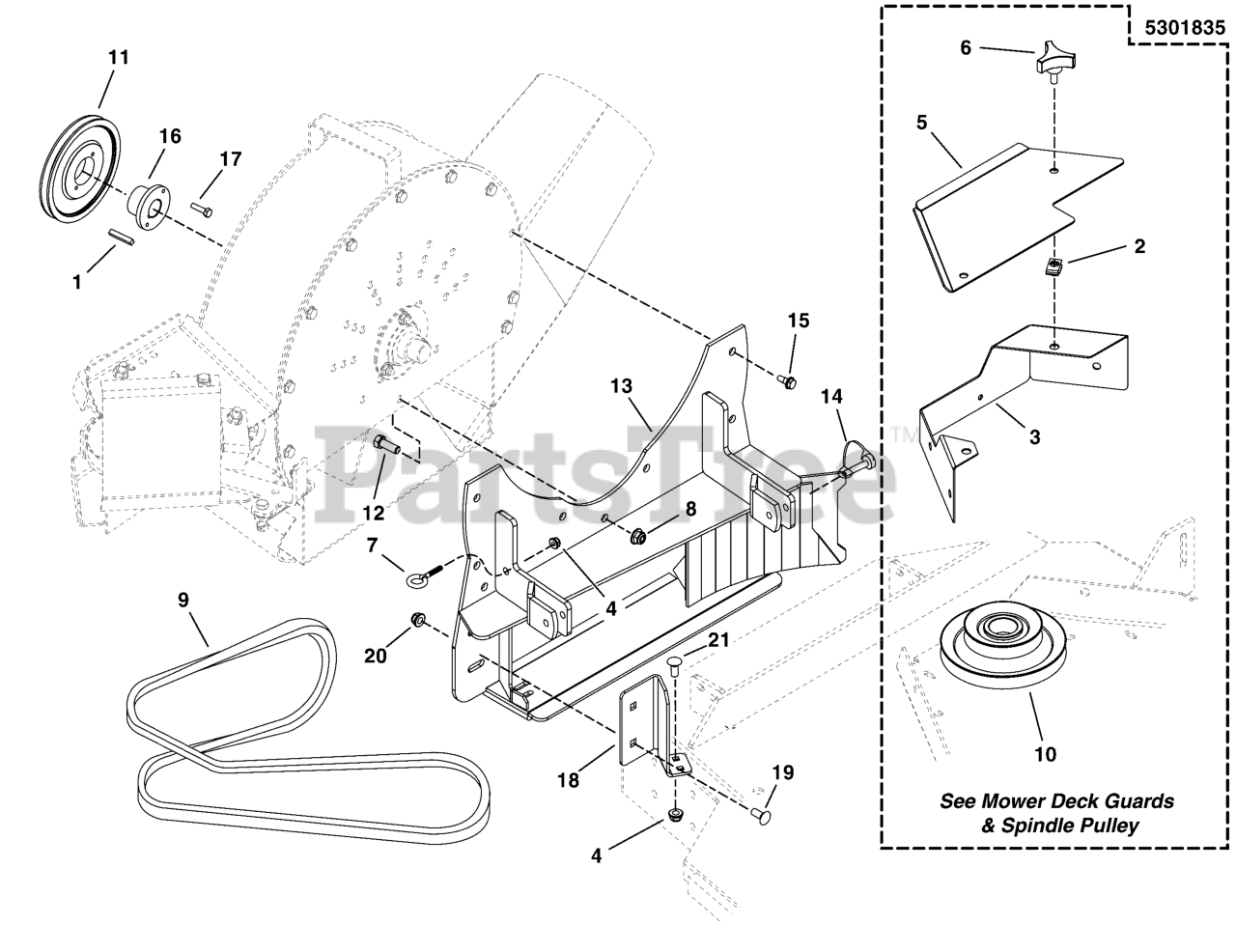

Blower Mount Group - 61" Models, FAST-Vac Parts Diagram

  • Title

1

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

3

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (ZTR Models)

$

$

Not available

3

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (800X Models)

$

$

Not available

4

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

5

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (ZTR Models)

$

$

Not available

5

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (800X Models)

$

$

Not available

6

Snapper Pro 5022319

KNOB, PLASTIC, 5/16-18 X 3/4"
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5022205

EYE BOLT, 1/4-20 X 2.5, 1THRD, .5EYE,CZ
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5102334

BELT, 96" EL, A-SECT, ARAMID, WRAPPED
(Superseded to 5102334FS)

$60.99

$

In Stock, only 1 left!

0

10

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (ZTR Models)

$

$

Not available

10

SEE MOWER DECK GUARDS & SPINDLE PULLEY

Note: (800X Models)

$

$

Not available

11

Snapper Pro 5046808

PULLEY, BLOWER AXLE, 61
(Superseded to 5046808YP)

$69.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100815

PULLEY , 4.75 OD, SINGLE GROOVE BH-48
(Superseded to 5100815FS)

Note: (IS2500Z Models)

$69.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

13

Snapper Pro 5408254A

WELD, ADAPTER, 61ICD, FVAC - BLK
(Superseded to 5302814)

$473.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 7

0

16

Snapper Pro 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5408272A

BRACKET, DEFLECTOR PLATE, 61" iCD - BLK
(Superseded to 5408272AFS)

$22.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0
