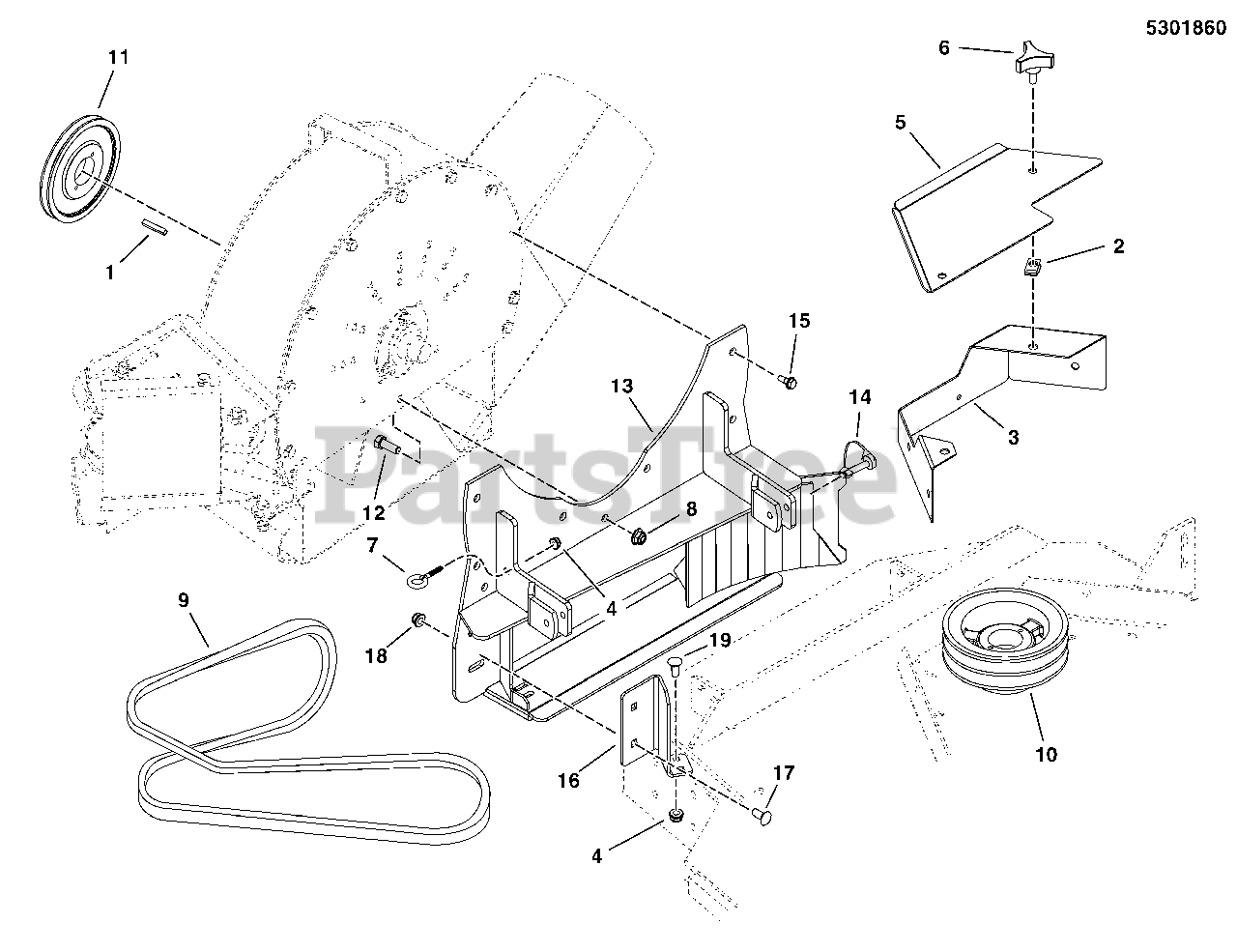

5600352 - Simplicity 61" 3-Bag Collection System for Citation & Cobalt SN Series Blower Mount Group - 61" Models Parts Diagram

61" 3-Bag Collection System for Citation & Cobalt SN Series

Blower Mount Group - 61" Models Parts Diagram

  • Title

1

Simplicity 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$5.49

$

In Stock, Qty 8

0

2

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

3

Simplicity 5401435A

GUARD, DECK, 61", FASTVAC - BLK
(Superseded to 5401435AYP)

$66.99

$

Usually ships in 2-12 days

0

4

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 5401436A

GUARD, BELT, 61", FASTVAC - BLK
(Superseded to 5401436AYP)

$43.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022319

KNOB, PLASTIC, 5/16-18 X 3/4
(Superseded to 5022319SM)

$8.49

$

In Stock, only 3 left!

0

7

Simplicity 5022205

EYEBOLT, 1/4-20 X 2
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5102334

BELT, 96" EL, A-SECT, ARAMID, WRAPPED
(Superseded to 5102334FS)

$60.99

$

Usually ships in 2-12 days

0

10

Simplicity 5046702

PULLEY, DECK,61 BLOWER UNIT
(Superseded to 5046702SM)

$233.99

$

Usually ships in 2-12 days

0

11

Simplicity 5046808

PULLEY, BLOWER AXLE, 61
(Superseded to 5046808YP)

$73.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

13

WELD, BLOWER MOUNT, 61 - BLK

Note: (Not a sellable part, order complete assembly 5301860)

$

$

Not available

14

Simplicity 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

In Stock, only 1 left!

0

15

Simplicity 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 5408272A

BRACKET,DEFLECTOR PLATE, 61
(Superseded to 5408272AFS)

$22.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

Usually ships in 2-12 days

0
