5600355 - Simplicity 52" Clean Sweep Triple Catcher Triple Catcher Assembly Parts Diagram

52" Clean Sweep Triple Catcher

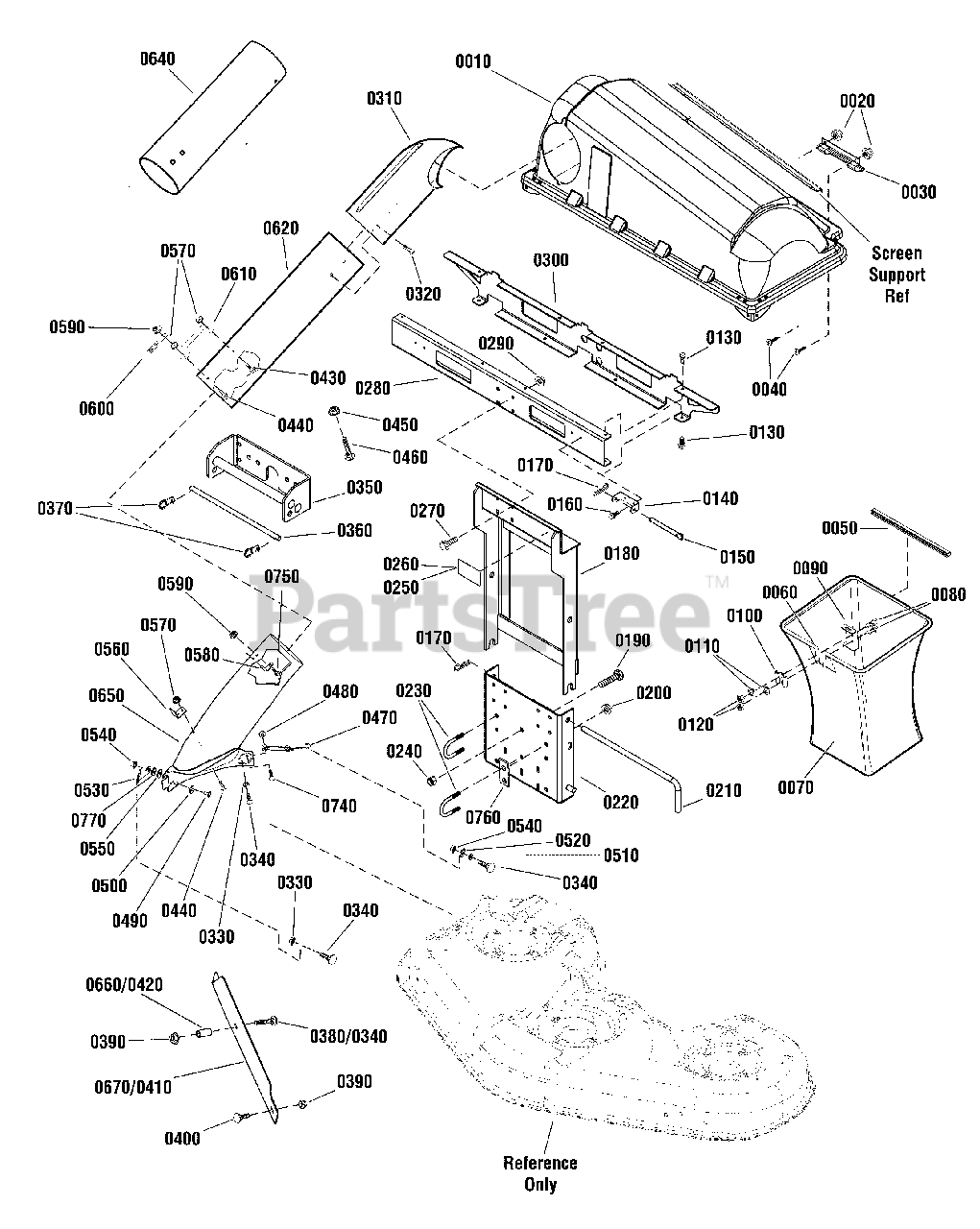

Triple Catcher Assembly Parts Diagram

  • Title

0010

Simplicity 1733546

COVER & SCREEN ASSEMBLY
(Superseded to 1733546SM)

$479.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1933896

NUT, NyLock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0030

Simplicity 054537MA

HANDLE

$19.99

$

In Stock, only 2 left!

0

0040

Simplicity 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0050

Simplicity 1733709

EDGING
(Superseded to 1733709SM)

$17.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1733517

HOOP
(Superseded to 1733517SM)

$81.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1733695

BAG, Grass, 13-13/16 x 17-1/8 x 22-1/2
(Superseded to 1733695SM)

$148.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 1703807A

HANGER, Grass Bag Hoop
(Superseded to 1703807ASM)

$21.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1672023A

CLAMP, 1/2 Dia.
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

0120

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

0130

Simplicity 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1733504A

PIVOT, HINGE
(Superseded to 1733504ASM)

$23.99

$

Usually ships in 2-12 days

0

0150

Simplicity 054407ZMA

PIN, Cover Hinge, 3/8 Dia x 3-3/4

$14.99

$

In Stock, only 2 left!

0

0160

Simplicity 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0170

Simplicity 1960074

CLIP, Hair Pin, 1-5/8 Long
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 5403786YP

BAGGER MOUNT ASSEMBLY
(Superseded to 5403786ASM)

$187.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1921176

CAPSCREW, Hex Head, 1/2-13 x 1-11/32, G5
(Superseded to 1921176SM)

$5.49

$

In Stock, only 1 left!

0

0200

Simplicity 1960687

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0210

Simplicity 1717085

ROD,5/8 Dia. x 16-1/2
(Superseded to 1717085SM)

$53.99

$

In Stock, only 2 left!

0

0220

Simplicity 1732625A

PLATE & PINS ASSEMBLY
(Superseded to 1732625ASM)

$134.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1732617

BOLT, U, 1-3/4 Opening, 3/8-16 x1-1/8
(Superseded to 1732617SM)

$7.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1960708

NUT, Hex Lock ESNA, 1/2-13
(Superseded to 703453)

$6.49

$

In Stock, Qty 13

0

0250

STICKER, Serial w/Bar Code

$

$

Not available

0260

MYLAR OVERLAY

$

$

Not available

0270

Simplicity 1934654

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$6.49

$

In Stock, Qty 11

0

0280

Simplicity 1733623A

CHANNEL, Cross Support
(Superseded to 1733623ASM)

$113.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1928352

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1733624A

BRACKET, Tab Cross Support
(Superseded to 1733624ASM)

$94.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$109.99

$

Usually ships in 2-12 days

0

0320

Simplicity 26X239MA

SCREW, 1/4 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0330

Simplicity 1927557

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 7

0

0340

Simplicity 1960223

BOLT, Carriage, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

Note: (Use on 52" mower)

$4.49

$

In Stock, only 2 left!

0

0350

Simplicity 5049082A

HOLDER ASSEMBLY
(Superseded to 5049082ASM)

$247.99

$

Usually ships in 2-12 days

0

0360

Simplicity 5049143

ROD, 1/2 Dia. x 13-3/4
(Superseded to 5049143SM)

$37.99

$

Usually ships in 2-12 days

0

0370

Simplicity 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 19

0

0380

Simplicity 1931339

BOLT, Carriage, 5/16-18 x 2, G5
(Superseded to 704035)

Note: (Use on 46" mower)

$4.49

$

In Stock, only 2 left!

0

0390

Simplicity 1927557

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 7

0

0400

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0410

Simplicity 1737241A

BAFFLE, 46"
(Superseded to 1737241AYP)

$82.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1676088

SPACER, 5/8 OD x 15/16
(Superseded to 1676088SM)

Note: (Use on 46" mower)

$12.99

$

Usually ships in 2-12 days

0

0430

Simplicity 004X24MA

SCREW, Machine, 1/4-20 x1/2

$4.49

$

Usually ships in 2-12 days

0

0440

Simplicity 004X71MA

SCREW, Machine, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

0450

Simplicity 1960685

NUT, Hex KEPS Conical Washer, 1/4-20
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0

0460

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4, G5

$4.49

$

In Stock, only 3 left!

0

0470

Simplicity 7036433

STRAP, Mounting Bag Adapter
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

0480

Simplicity 7036404

WELD NUT, #10C
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

0490

Simplicity 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, Qty 14

0

0510

Simplicity 1919381

WASHER, 5/16, G5
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

0520

Simplicity 1723244

SPACER, Hydraulic Lift Pivot
(Superseded to 1723244SM)

$8.49

$

Usually ships in 2-12 days

0

0530

Simplicity 1737765A

LATCH, Boot
(Superseded to 1737765AYP)

$34.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1960686

NUT, Hex Flange, 5/16-18 ESNA BLK
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0550

Simplicity 1708511

SPACER, 5/16 x 1 OD
(Superseded to 1708511SM)

$7.99

$

In Stock, only 1 left!

0

0560

Simplicity 1737764A

UPSTOP, Deflector
(Superseded to 1737764AYP)

$35.99

$

Usually ships in 2-12 days

0

0570

Simplicity 1928372

NUT, Hex KEPS 1/4-20 BLK
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

0580

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

0590

Simplicity 1930642

NUT, Hex Flange Top Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 1 left!

0

0600

Simplicity 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0610

Simplicity 054416ZMA

HANDLE CONNECT TUBE

$20.99

$

In Stock, only 2 left!

0

0620

Simplicity 1735597

TUBE
(Superseded to 1735597SM)

$174.99

$

Usually ships in 2-12 days

0

0640

Simplicity 5049151

CHUTE
(Superseded to 5049151SM)

$113.99

$

Usually ships in 2-12 days

0

0650

Simplicity 1734776YP

BOOT, Bagging

$284.99

$

Usually ships in 2-12 days

0

0660

Simplicity 1674440

SPACER, 5/8 OD x 11/16
(Superseded to 1674440SM)

Note: (Use on 52" mower)

$19.99

$

In Stock, only 2 left!

0

0670

Simplicity 1737242A

BAFFLE, 52"
(Superseded to 1737242AYP)

$109.99

$

In Stock, only 1 left!

0

0740

Simplicity 7036415

SCREW, Machine 5/8
(Superseded to 7036415SM)

$3.99

$

In Stock, only 1 left!

0

0750

Simplicity 1960252

Bolt, Carriage 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

Usually ships in 2-12 days

0

0760

Simplicity 1751238

SPACER

$

$

Not available

0770

Simplicity 7026257

WASHER, Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 7

0
