5600384 - Ferris 60" Snowblower for 800X Hitch Assembly Parts Diagram

60" Snowblower for 800X

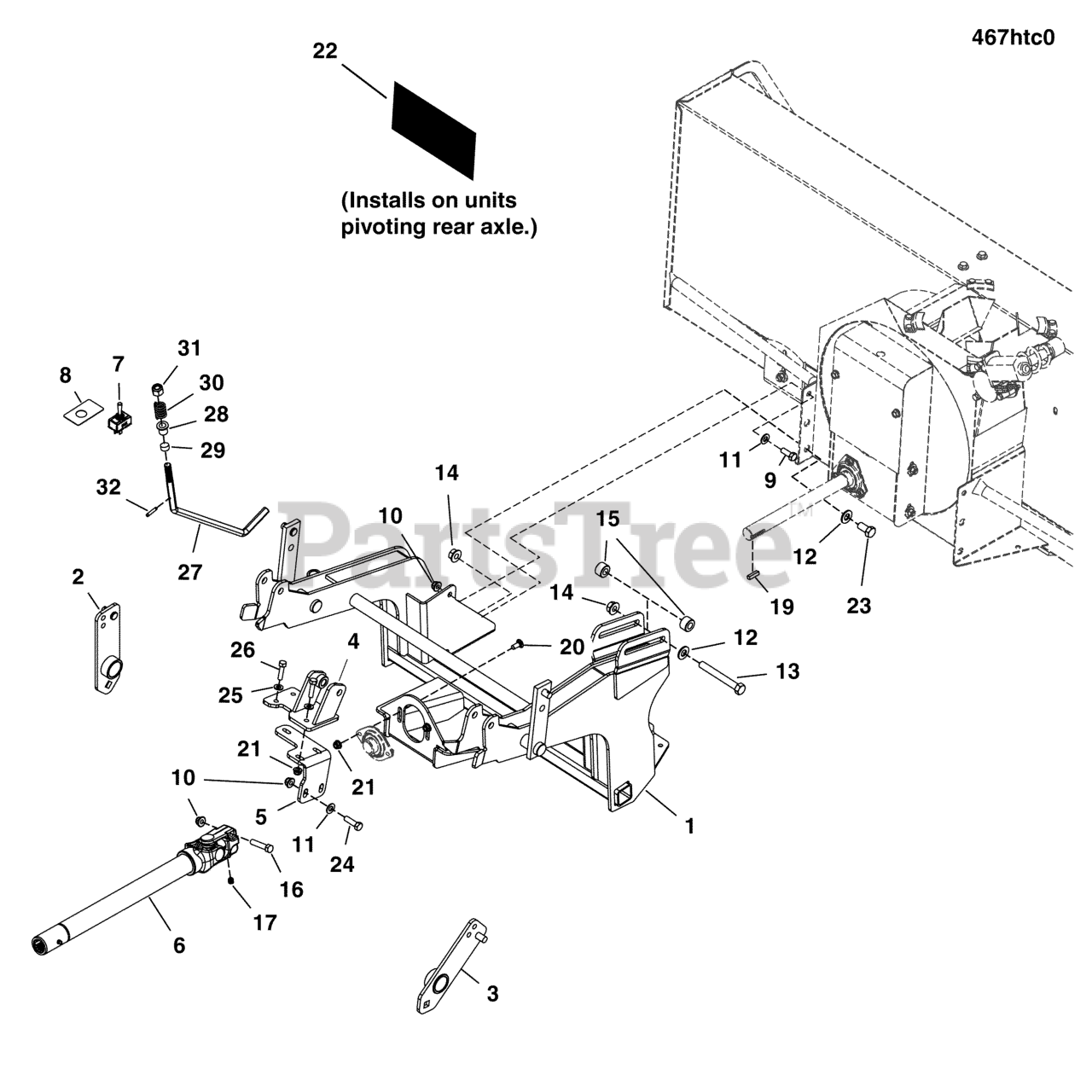

Hitch Assembly Parts Diagram

  • Title

1

Ferris 5404873A

WELD, MNT, SNOW THROWER, S800X - BLK

$

$

Currently unavailable

2

Ferris 5405692A

WELD, SPRING PVT, SNOW, LH - BLK
(Superseded to 5405692AFS)

$85.99

$

Usually ships in 2-12 days

0

3

Ferris 5405693A

WELD, SPRING PVT, SNOW, RH - BLK
(Superseded to 5405693AFS)

$65.99

$

Usually ships in 2-12 days

0

4

Ferris 5405761A

WELD, ACTUATOR MOUNT - BLK
(Superseded to 5405761AFS)

$123.99

$

Usually ships in 2-12 days

0

5

Ferris 5405762A

PLATE, ACTUATOR MNT SUPPORT - BLK
(Superseded to 5405762AFS)

$29.99

$

Usually ships in 2-12 days

0

6

Ferris 5105463

1/2 DRIVE SHAFT SEALED, SNOW THROWER

$

$

Currently unavailable

7

Ferris 5021734

Switch, Electric Actuator
(Superseded to 5021734SM)

$55.99

$

Usually ships in 2-12 days

0

8

Ferris 5101769

DECAL, CHUTE ROTATION, S800X
(Superseded to 5101769FS)

$23.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

10

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 17

0

13

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

14

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5101161

SPACER, .52 X 1.00 X .63, YZ
(Superseded to 5101161YP)

$9.49

$

Usually ships in 2-12 days

0

16

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 5

0

17

Ferris 5025063X3

SET SCREW, 3/8-16 X 3/8
(Superseded to 5025063X3YP)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 10

0

19

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 2 left!

0

20

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 1701600

REFLECTOR-REAR RED 1.38 X 3.00
(Superseded to 1701600SM)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

27

Ferris 5102274

KICK STAND, SNOW THROWER, S800X
(Superseded to 5102274FS)

$40.99

$

Usually ships in 2-12 days

0

28

Ferris 5102306

FLANGED BUSHING, 1/2ID X 5/8OD X 3/4"LG
(Superseded to 5102306FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5061780

BUSHING, .510 X .625 X .500
(Superseded to 5061780SM)

$5.99

$

In Stock, only 1 left!

0

30

Ferris 5101079

SPRING-COMP, .625 ID X 1.31 LG X .105 WR
(Superseded to 5101079FS)

$5.99

$

Usually ships in 2-12 days

0

31

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$6.49

$

In Stock, Qty 9

0

32

Ferris 2816001

PIN-SPRING .188 X 1.00 PLN SAE 1095
(Superseded to 2816001SM)

$4.49

$

In Stock, only 2 left!

0
