5600539 - Snapper Pro 48" 2-Bag Grass Collection System for S50X, S150X, S150XT 2-Bag Catcher & Cover Group Parts Diagram

48" 2-Bag Grass Collection System for S50X, S150X, S150XT

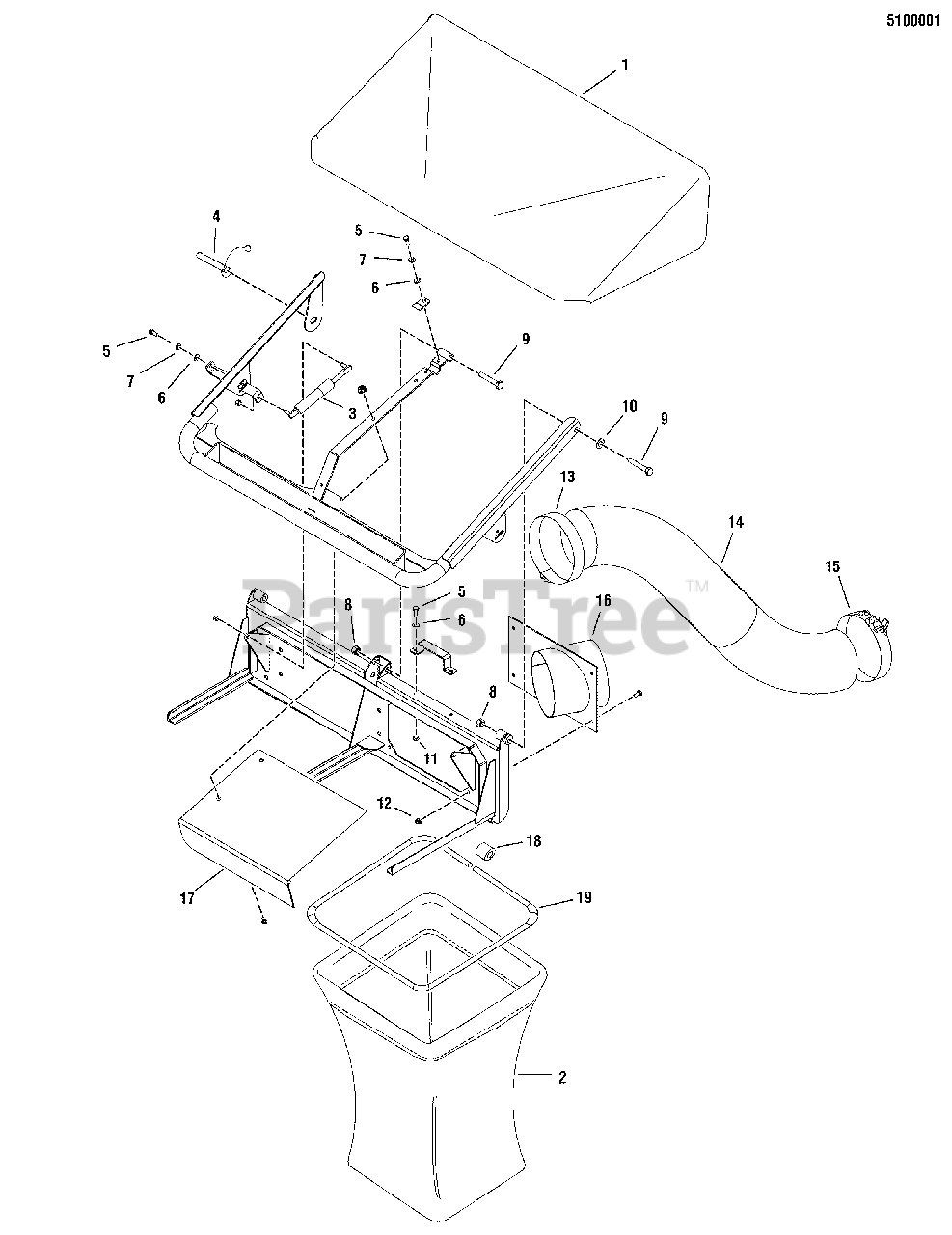

2-Bag Catcher & Cover Group Parts Diagram

  • Title

1

Snapper 5100153

2-BAG AIR DOME
(Superseded to 5100153SM)

$293.99

$

Usually ships in 2-12 days

0

2

Snapper 5100150

CATCHER BAG W/ HANDLE
(Superseded to 5100150SM)

$262.99

$

In Stock, only 1 left!

0

3

Snapper 5100152

GAS CYLINDER
(Superseded to 5100152SM)

$122.99

$

Usually ships in 2-12 days

0

4

Snapper 5100151

DETENT PIN W/ LANYARD
(Superseded to 5100151SM)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Snapper 5025170

WASHER, 5/16" LOCK
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

In Stock, only 3 left!

0

9

Snapper 5025018X24

BOLT, 1/2-20 X 3" GD5
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 5025158

WASHER, 1/2 SAE, YZ (15124)
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5022875

CLAMP, HOSE, UPPER
(Superseded to 5022875SM)

$46.99

$

In Stock, only 1 left!

0

14

Snapper 5103646

USE 5103646 -HOSE, FLEXIBLE, 7 DIA. X 58
(Superseded to 5103646YP)

$337.99

$

Usually ships in 2-12 days

0

15

Snapper 5022876

CLAMP, HOSE, LOWER
(Superseded to 5022876SM)

$47.99

$

Usually ships in 2-12 days

0

16

Snapper 5400147A

WELD, INLET BLOWER 2-BAG BLACK
(Superseded to 5400147ASM)

$151.99

$

Usually ships in 2-12 days

0

17

Snapper 5100036A

BAFFLE
(Superseded to 5100036ASM)

$37.99

$

Usually ships in 2-12 days

0

18

Snapper 5100730

BAG FRAME CONNECTOR, PLASTIC
(Superseded to 5100730SM)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 5100729

BAG FRAME
(Superseded to 5100729SM)

$80.99

$

Usually ships in 2-12 days

0
