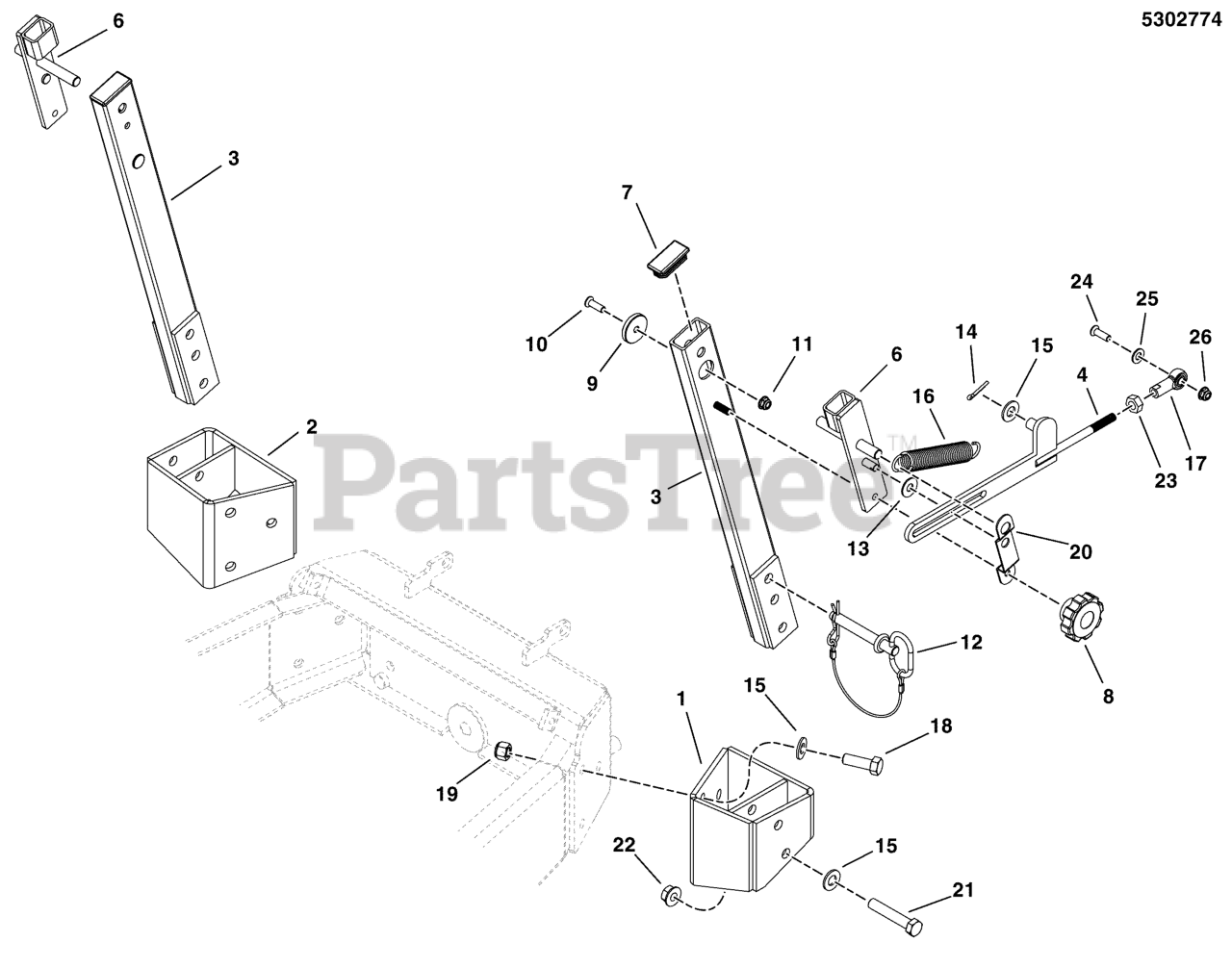

5600553 - Snapper Pro 61" EZ Dump XL 14 cu. ft. Hopper for F/S800X Hopper Mount Group (Outfront) - 14 cu. ft. hopper Parts Diagram

61" EZ Dump XL 14 cu. ft. Hopper for F/S800X

Hopper Mount Group (Outfront) - 14 cu. ft. hopper Parts Diagram

  • Title

1

Snapper Pro 5405400A

WELD, MOUNT, LH, 800X - BLK
(Superseded to 5405400AFS)

$116.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5405401A

WELD, MOUNT, RH, 800X - BLK

$

$

Currently unavailable

3

Snapper Pro 5405403A

WELD, TUBE FRAME-BLK

$

$

Currently unavailable

4

Snapper Pro 5414566A

WELD, LEFT LATCH PULL, ZTR - BLK
(Superseded to 5414566AFS)

$44.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5414565A

WELD, RIGHT LATCH PULL, ZTR - BLK
(Superseded to 5414565AFS)

Note: (Not Shown)

$44.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5408341A

WELD, HOPPER LOCK, 800X-BLK
(Superseded to 5408341AFS)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5102392

PLUG, 1 X 2, 10-14 GA. TUBING
(Superseded to 5102392FS)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5100013

PIN, HITCH, .50 X 3.25 W/ LAY
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025424

WASHER, 3/8 X 1 X 1/16, NYLON F/W
(Superseded to 5025424FS)

$2.49

$

In Stock, only 1 left!

0

14

Snapper Pro 80002736

PIN, 3/32 X .750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

16

Snapper Pro 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, only 4 left!

0

17

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5408343A

PLATE, RETAINER CLIP, 800X - BLK
(Superseded to 5408343AFS)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

23

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

26

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
