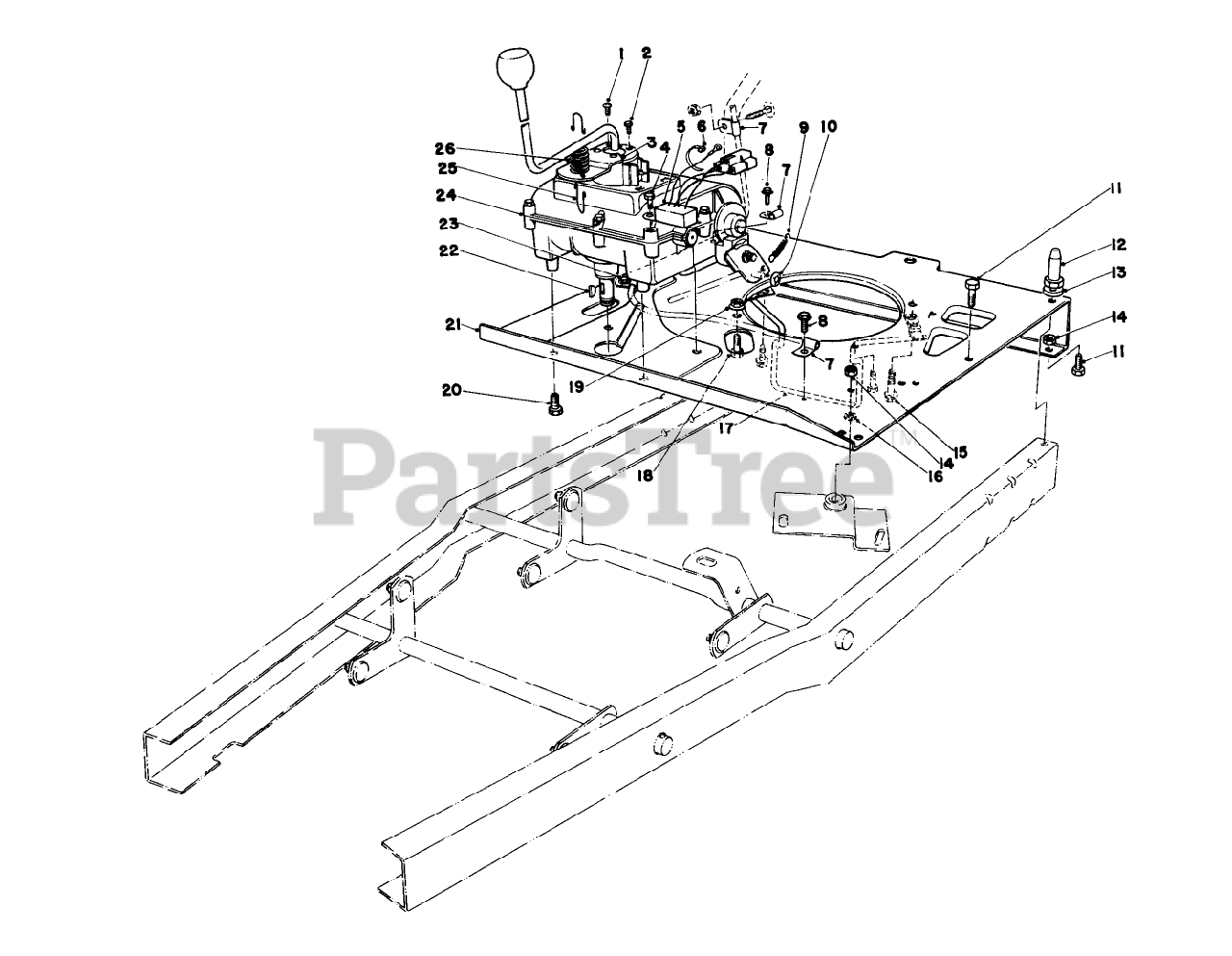

56006 - Toro 25" Premium Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) Engine Plate And Shift Assembly Parts Diagram

25" Premium Rear-Engine Riding Mower

Engine Plate And Shift Assembly Parts Diagram

  • Title

1

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Toro 2119-619

DISCONTINUED

$

$

Not available

3

Toro 25-4050

DISCONTINUED

$

$

Not available

4

Toro 2119-489

DISCONTINUED

$

$

Not available

5

Toro 39-6520

DISCONTINUED

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

7

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

8

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

9

Toro 26-6700

SPRING-RETURN, BRAKE

$

$

Not available

10

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

11

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

12

Toro 25-1530

PIN-MOUNTING, LOWER

$36.99

$

Usually ships in 3-6 days

0

13

Toro 26-4840

See Supercession: 5-0652

$6.99

$

Usually ships in 3-6 days

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

15

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

17

Toro 26-5740

DISCONTINUE

$

$

Not available

18

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

20

Toro 32140-61

DISCONTINUED

$

$

Not available

21

Toro 39-6750

DISCONTINUED

$

$

Not available

22

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

23

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

24

Toro 26-5440

DISCONTINUED

$

$

Not available

25

Toro 25-4040

DISCONTINUED

$

$

Not available

26

Toro 25-4030

DISCONTINUED

$

$

Not available
