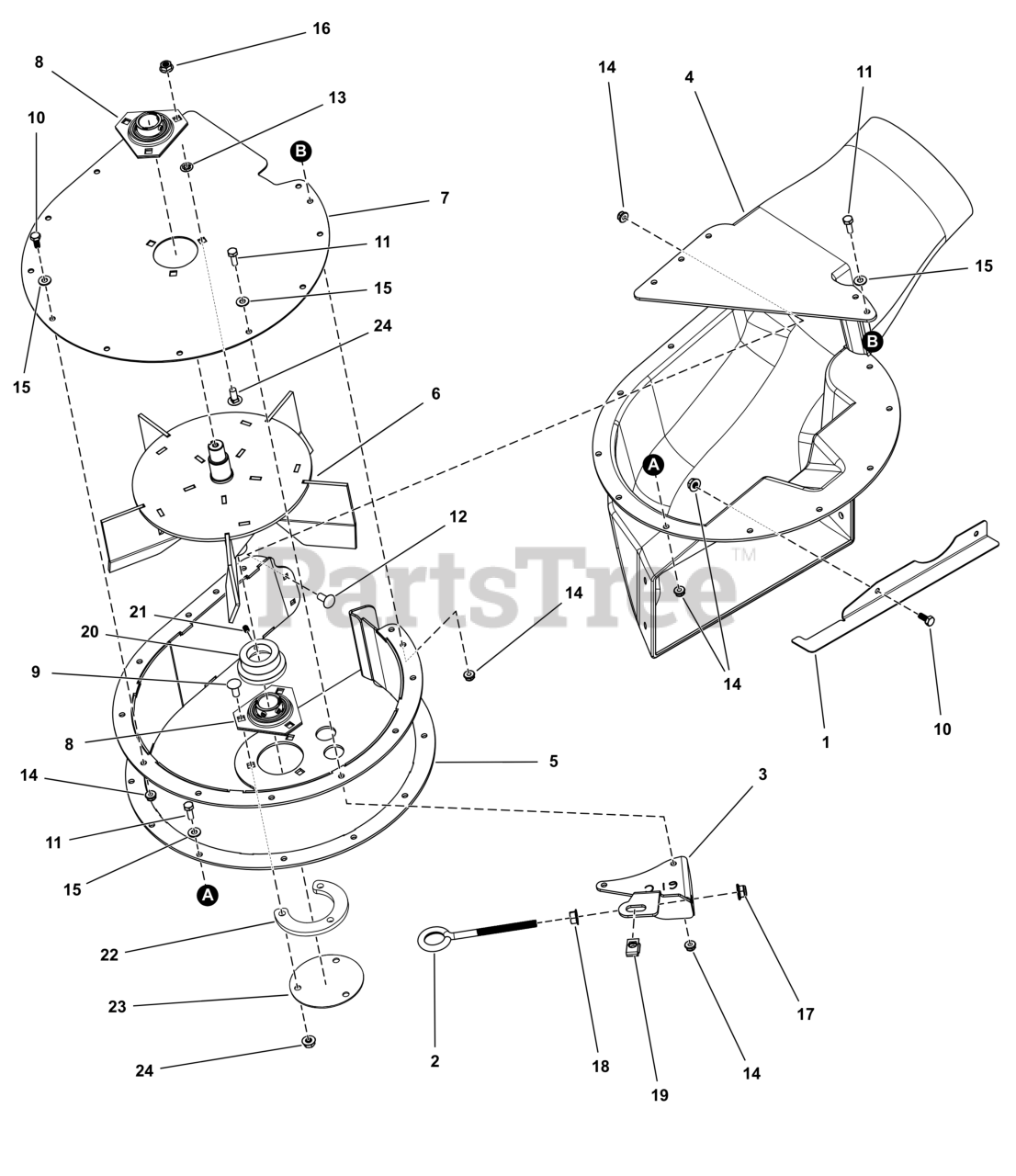

5600749 - Simplicity 61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200 Blower Group, TURBO-Pro MAX S/N: 11/04/2021 and Later Parts Diagram

61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200

Blower Group, TURBO-Pro MAX S/N: 11/04/2021 and Later Parts Diagram

  • Title

1

Simplicity 5412471AA

BRACKET, ADAPTER SEAL, COM BLOWER - BLK

$

$

Currently unavailable

2

Simplicity 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 5411115AA

WELD, SPRING ANCHOR, COM - BLK

$

$

Currently unavailable

4

Simplicity 5103816

MOLDED HOUSING, COMMERCIAL TURBO VAC
(Superseded to 5103816FS)

$284.99

$

Usually ships in 2-12 days

0

5

Simplicity 5411079AA

WELD, FAN CAGE, BLOWER - BLK

$

$

Currently unavailable

6

Simplicity 5422252

WELD, FAN ASSEMBLY, TMAX
(Superseded to 84007864)

$343.99

$

Usually ships in 2-12 days

0

7

Simplicity 5411077AA

PLATE, FAN, TOP - BLK

$

$

Currently unavailable

8

Simplicity 5110099

BEARING, 3 BOLT STEEL FLANGE, 1" BORE
(Superseded to 5110099FS)

Note: (Torque set screws to 87 in-lbs (9.8 Nm). Use Loctite 271 Threadlocker on threads).

$41.99

$

In Stock, Qty 5

0

9

Simplicity 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

10

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

11

Simplicity 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

12

Simplicity 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0

13

Simplicity 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

17

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

18

Simplicity 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5022308

BODY CLIP, 5/16-18 7GA. MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

20

Simplicity 5110057

GUARD, BEARING, TMAX

$

$

Currently unavailable

21

Simplicity 5110109

SET SCREW, 1/4-20 X 3/8, KNURLED CUP

Note: (Torque to 87 in-lbs (9.8 Nm). Use Loctite 271 Threadlocker on threads).

$

$

Currently unavailable

22

Simplicity 5422390AA

PLATE, C-SHAPED SPACER, TMAX - BLK

$

$

Currently unavailable

23

Simplicity 5422388AA

PLATE, INNER COVER, TMAX - BLK

$

$

Currently unavailable

24

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available
