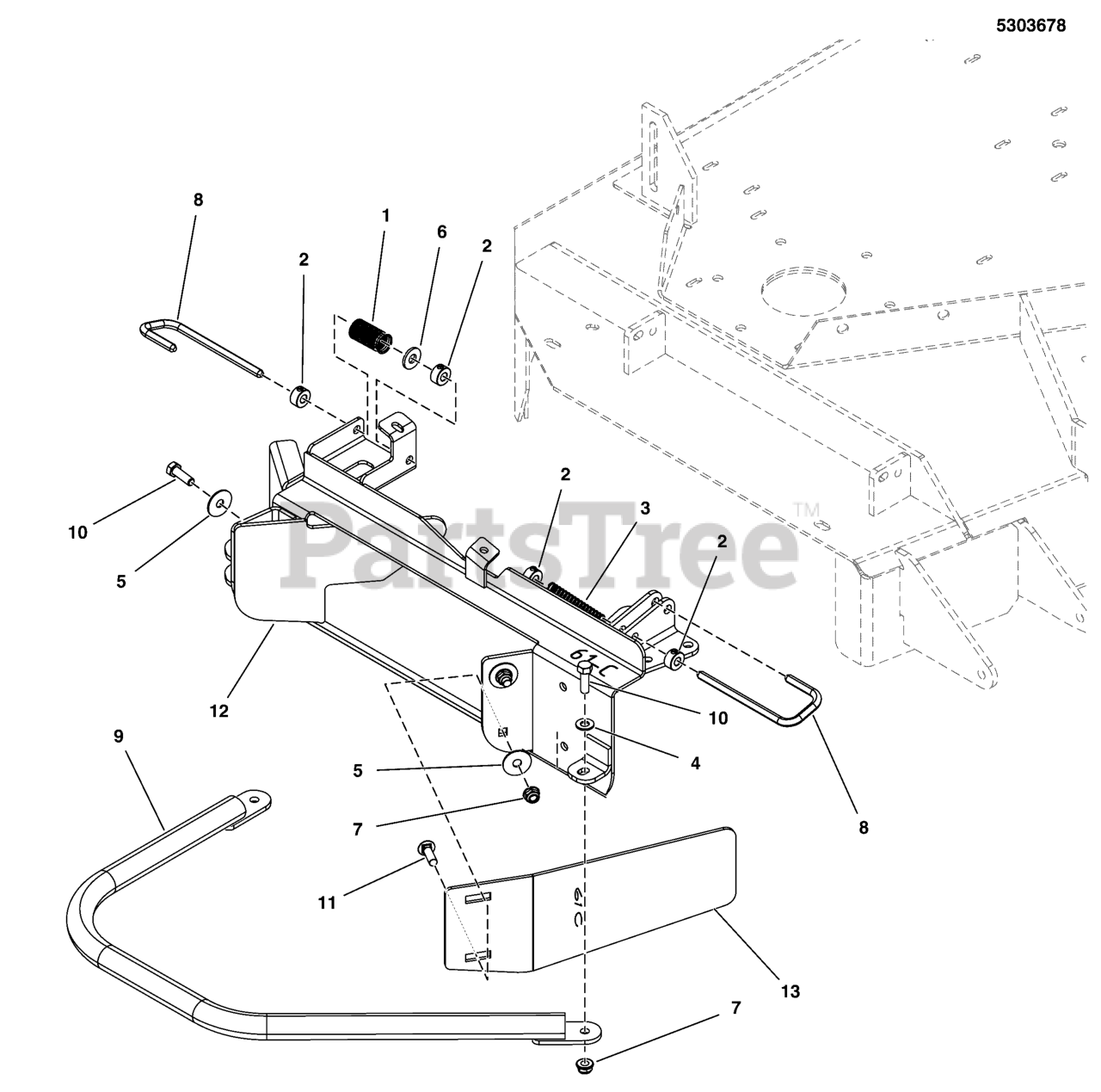

5600749 - Simplicity 61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200 Blower Mount Group - 61" Mower Decks, TURBO-Pro MAX Parts Diagram

61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200

Blower Mount Group - 61" Mower Decks, TURBO-Pro MAX Parts Diagram

  • Title

1

Simplicity 1709660

SPRING-COMP 0.880ODX 02.187LG .062WIRE
(Superseded to 1709660SM)

$8.99

$

Usually ships in 2-12 days

0

2

Simplicity 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

3

Simplicity 5020637

SPRING-COMP, .375IDX2.75LGX.054WR, SS
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Simplicity 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5104203

ROD, LOCKING PIN, BLOWER
(Superseded to 5104203FS)

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 5412625A

WELD, NERF BAR, 61" T-MAX - BLK

$102.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

12

Simplicity 5411112A

WELD, ADAPTER, 61" COM - BLK

$233.99

$

Usually ships in 2-12 days

0

13

Simplicity 5411117A

DECK WEDGE, 61", COMMERCIAL - BLK
(Superseded to 84008397)

$17.99

$

In Stock, only 1 left!

0
