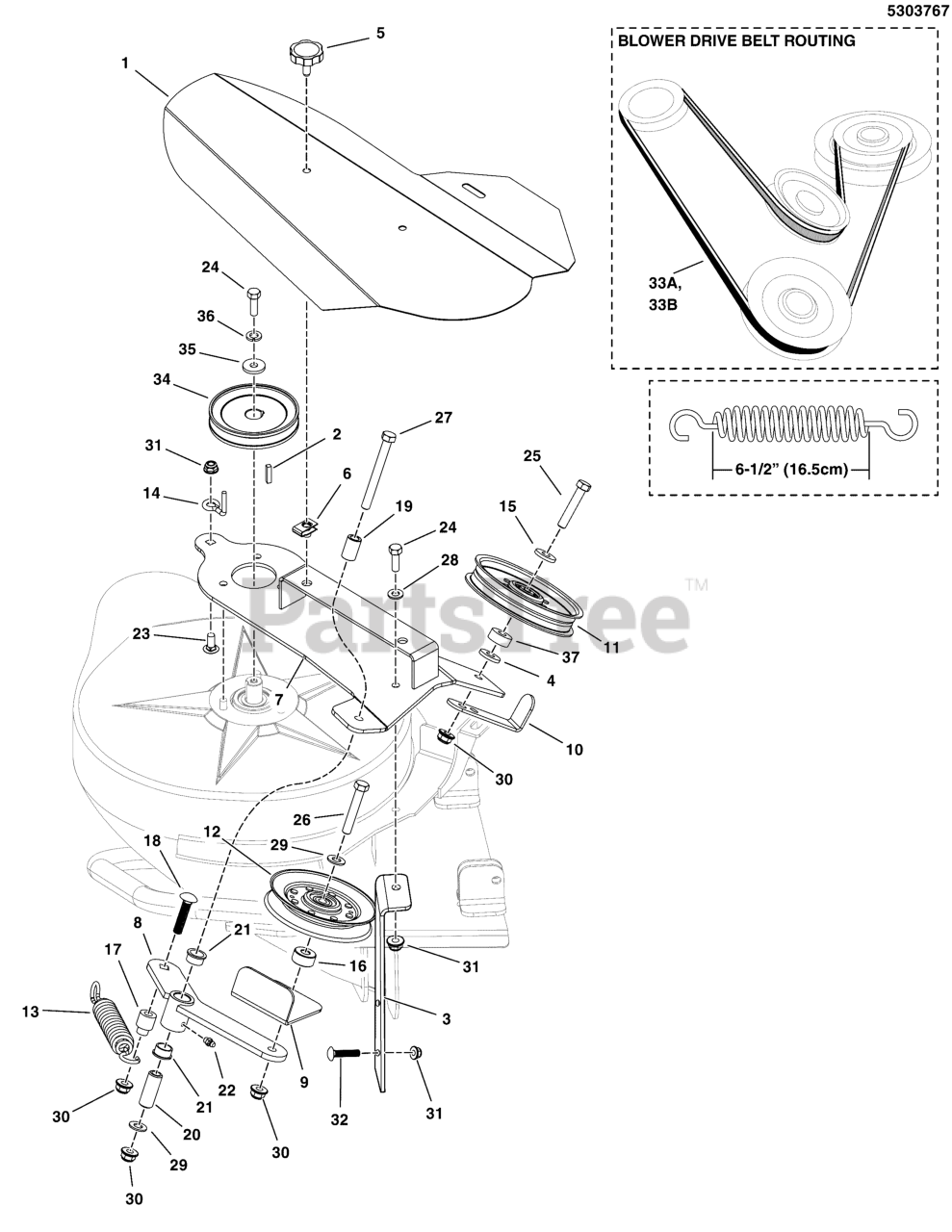

5600749 - Simplicity 61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200 Blower Pulley Group, TURBO-Pro MAX Parts Diagram

61" iCD Turbo-Pro Max 3-Bag Grass Collection System for 200 XT, IS 2100 Z, 210, ISX 2200

Blower Pulley Group, TURBO-Pro MAX Parts Diagram

  • Title

1

Simplicity 5600740

HOOD W/ DECALS - TURBO PRO-MAX
(Superseded to 5600740FS)

$136.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050403X4

KEY, 3/16" SQ. X 3/4
(Superseded to 5050403X4YP)

$2.99

$

Usually ships in 2-12 days

0

3

Simplicity 5411116A

BRACKET, FRONT SUPPORT, 61" COM - BLK

$

$

Not available

4

Simplicity 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 5101731

KNOB, 5/16-18 X 1.00, ROSETTE BLACK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 2 left!

0

6

Simplicity 5022308

BODY CLIP, 5/16-18 7GA. MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 9

0

7

Simplicity 5412606

ASSEMBLY, PULLEY PLATE, T-MAX (52,61)

$154.99

$

Usually ships in 2-12 days

0

8

Simplicity 5409892

ASSEMBLY, IDLER ARM - TURBO-VAC
(Superseded to 5409892YP)

Note: (Includes Bushings and Fitting)

$121.99

$

Usually ships in 2-12 days

0

9

Simplicity 5409609A

RETAINER, BELT, WIDE - BLK
(Superseded to 5409609AFS)

$33.99

$

Usually ships in 2-12 days

0

10

Simplicity 5409610A

RETAINER, BELT
(Superseded to 5409610AFS)

Note: (Refer to Note: *)

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 1725408

PULLEY-IDLER 04.00 OD 0.378ID 1.06 W BRG
(Superseded to 1725408SM)

$47.99

$

In Stock, only 1 left!

0

12

Simplicity 5103456

PULLEY-IDLER-V, 4.85OB, .38ID
(Superseded to 84004874)

$33.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

Usually ships in 2-12 days

0

14

Simplicity 5103488

BELT KEEP, .19 X 1.25 - BK
(Superseded to 5103488YP)

$8.99

$

Usually ships in 2-12 days

0

15

WASHER, .406X1.0X.134,FLT,TYPE A, ZINC/CLEAR

$

$

Not available

16

Simplicity 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

Usually ships in 2-12 days

0

17

Simplicity 1706644

SPACER,3/8X3/4X15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 2 left!

0

18

Simplicity 80004559

BOLT,3/8-16X1.750,SHORT NECK CRRG,ZC/CL
(Superseded to 703858)

$4.99

$

In Stock, Qty 5

0

19

Simplicity 5101933

SPACER, .39 X .63 X 1.00, YZ
(Superseded to 5101933YP)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 5102322

SPACER, .38 X .625 X 1.62, YZ
(Superseded to 5102322YP)

$12.99

$

Usually ships in 2-12 days

0

21

Simplicity 1676148

BUSHING-0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 10

0

22

Simplicity 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

26

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 4 left!

0

28

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

29

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

33A

Simplicity 5104289

BELT, A SEC, 81.1"EL, ARAMID, WRPD
(Superseded to 5104289FS)

Note: (52" Mower Decks)

$71.99

$

Usually ships in 2-12 days

0

33B

Simplicity 1721532

V-BELT HA 83.10
(Superseded to 1721532SM)

Note: (61" Mower Decks)

$58.99

$

In Stock, only 3 left!

0

34

Simplicity 5103836

PULLEY, COMMERCIAL PRO
(Superseded to 5103836FS)

$50.99

$

Usually ships in 2-12 days

0

35

Simplicity 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

36

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1667811

SPACER-0.390ID 0.90 OD 0.34 LG P'MTL YEL
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 6

0
