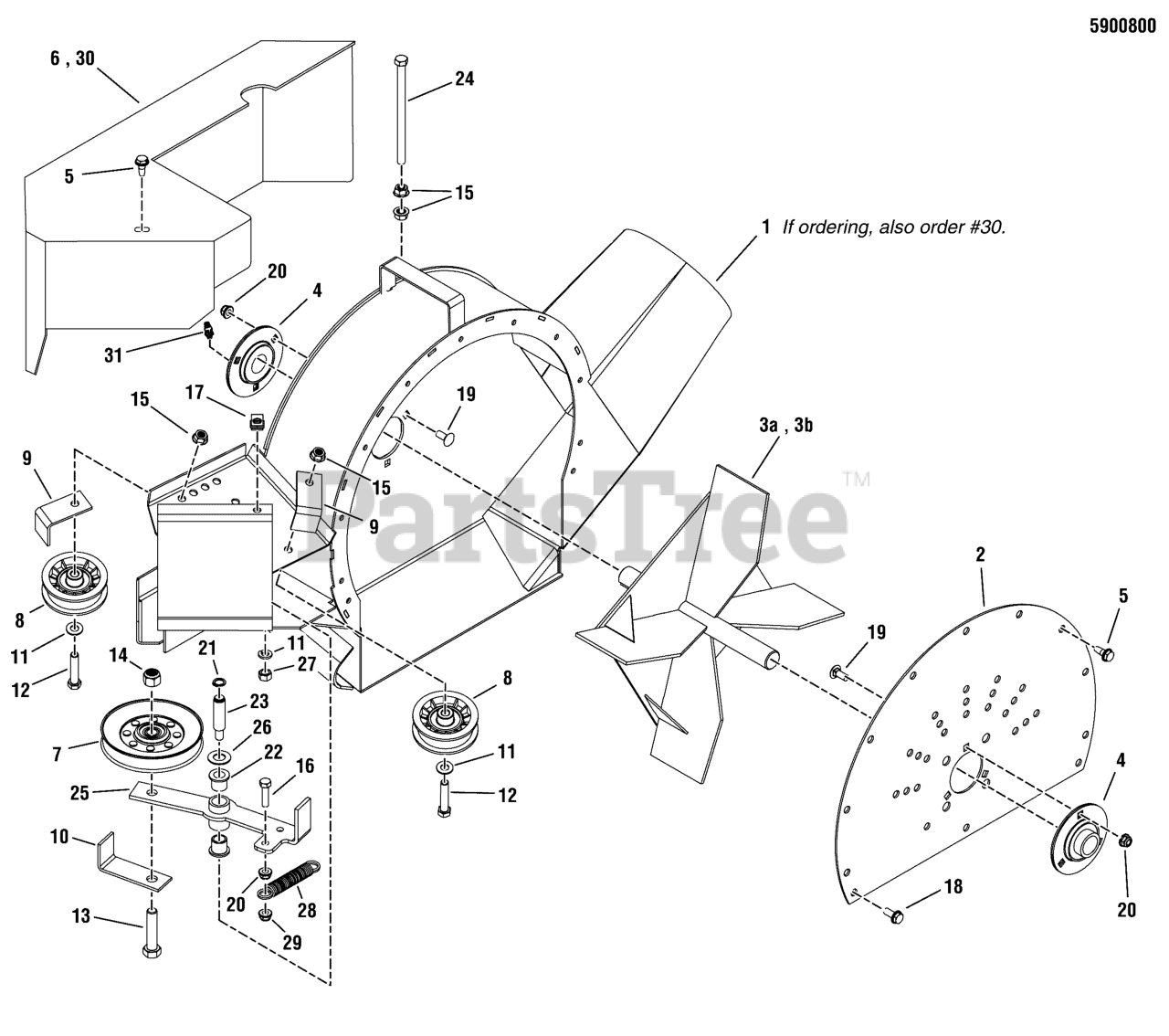

5600754 - Simplicity 61" EZ Dump 12 cu. ft. Hopper for IS 3100 Z Blower Group, FAST-Vac Parts Diagram

61" EZ Dump 12 cu. ft. Hopper for IS 3100 Z

Blower Group, FAST-Vac Parts Diagram

  • Title

1

Simplicity 5403723A

**BLOWER HOUSING
(Superseded to 5403723ASM)

$719.99

$

Usually ships in 2-12 days

0

2

Simplicity 5403750A

BACK PLATE
(Superseded to 5403750ASM)

$75.99

$

Usually ships in 2-12 days

0

3a

Simplicity 5407093

WELD, IMPELLER, FAST-VAC BLOWER
(Superseded to 5407093YP)

Note: (S/N: 04/07/2010 & Later)

$265.99

$

Usually ships in 2-12 days

0

3b

Simplicity 5403741

WELD, IMPELLER, FAST-VAC BLOWER
(Superseded to 5403741SM)

Note: (S/N: 04/06/2010 & Earlier)

$250.99

$

Usually ships in 2-12 days

0

4

Simplicity 7100021

BEARING, FLANGE, 1" Bore
(Superseded to 7100021SM)

$41.99

$

In Stock, Qty 5

0

5

Simplicity 7091541

BOLT, 5/16-18 X 3/4" Self Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5403736A

BELT GUARD
(Superseded to 5403736ASM)

Note: (S/N: 07/14/2013 & Earlier)

$136.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021097

PULLEY-IDLER-V, 4.85OB, .506 ID, ,94W, STL
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

8

Simplicity 5106480

PULLEY, IDLER, 2.75"OD X .37"ID, INSERT
(Superseded to 5106480FS)

$32.99

$

In Stock, only 2 left!

0

9

Simplicity 5403749A

BELT KEEPER
(Superseded to 5403749ASM)

$19.99

$

In Stock, only 1 left!

0

10

Simplicity 5403740A

KEEPER, BELT TENSIONER
(Superseded to 5403740ASM)

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, Qty 9

0

13

Simplicity 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025056

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

16

Simplicity 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

17

Simplicity 5022308

BODY CLIP, 5/16-18 7GA. MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 9

0

18

Simplicity 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 7

0

19

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 7010776

RETAINING RING, 1/2"
(Superseded to 7010776YP)

$3.99

$

In Stock, only 4 left!

0

22

Simplicity 7014409

FLANGE BEARING, 9/16"
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 10

0

23

Simplicity 7044995

IDLER STUD
(Superseded to 7044995SM)

$20.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, only 2 left!

0

25

Simplicity 5411358

ASSM, IDLER ARM, FAST-VAC - BLK (Includes bushings)
(Superseded to 5411358YP)

$78.99

$

Usually ships in 2-12 days

0

26

Simplicity 5103679

WASHER, FLAT, 9/16 ID, 1-1/8 OD, 98THK
(Superseded to 5103679FS)

Note: Was 5025171

$2.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

Note: Was 5025097

$2.49

$

Usually ships in 2-12 days

0

28

Simplicity 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

29

Simplicity 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

30

Simplicity 5411464A

WELD, Fast-Vac Guard - BLK

Note: (S/N: 07/15/2013 & Later)

$

$

Not available

31

Simplicity 5104152

GREASE FITTING, 65 DEG 1/4-28 TAPER MALE

$2.99

$

Usually ships in 2-12 days

0
