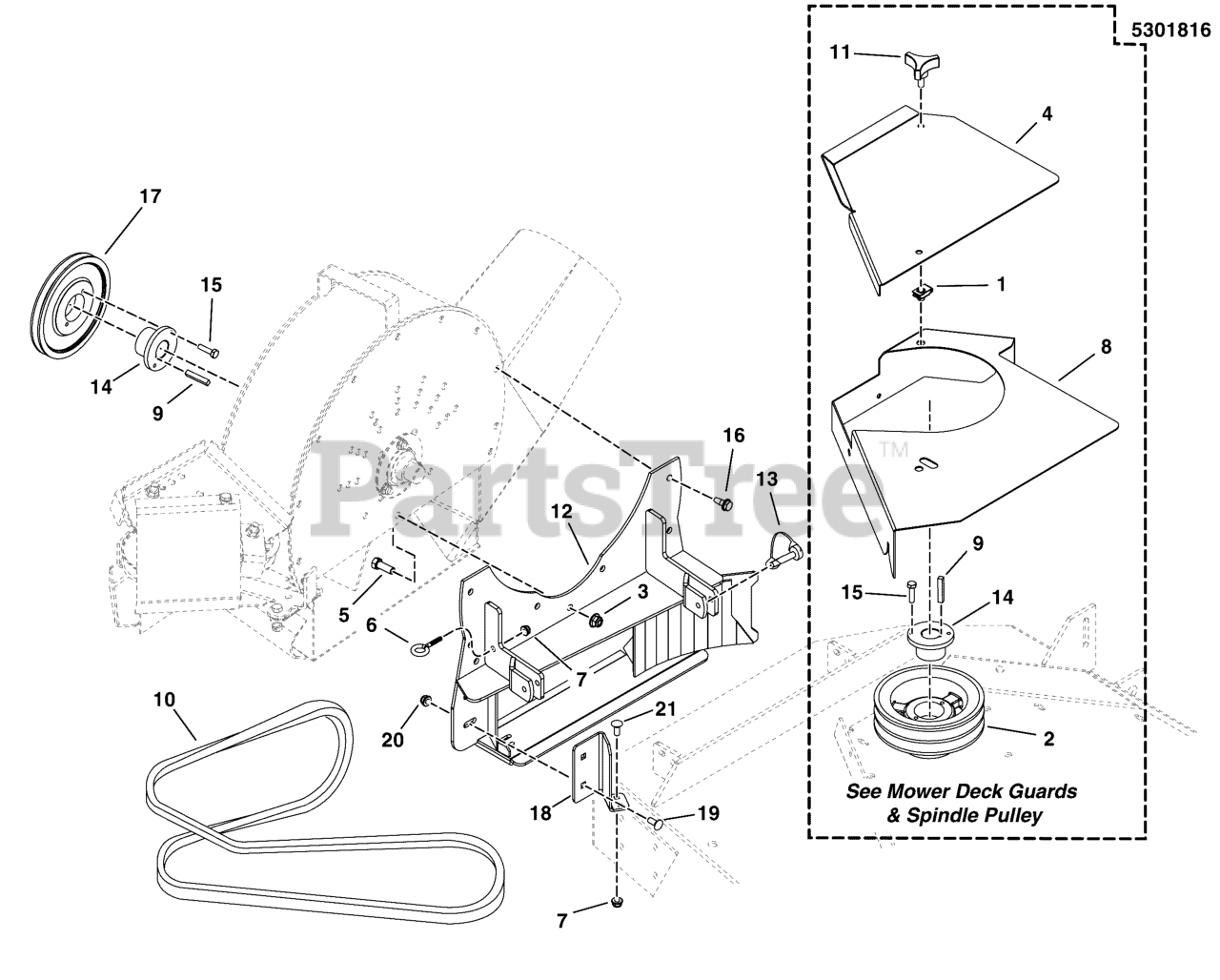

5600754 - Simplicity 61" EZ Dump 12 cu. ft. Hopper for IS 3100 Z Blower Mount Group - IS3100Z Series, FAST-Vac Parts Diagram

61" EZ Dump 12 cu. ft. Hopper for IS 3100 Z

Blower Mount Group - IS3100Z Series, FAST-Vac Parts Diagram

  • Title

1

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

2

SEE MOWER DECK GUARDS & SPINDLE PULLEYS

$

$

Not available

3

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

SEE MOWER DECK GUARDS & SPINDLE PULLEYS

$

$

Not available

5

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 5022205

EYE BOLT, 1/4-20 X 2.5, 1THRD, .5EYE,CZ
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

8

SEE MOWER DECK GUARDS & SPINDLE PULLEYS

$

$

Not available

9

Simplicity 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 5100974

BELT, 4L-SEC, 103.0EL, ARAMID, WRPD
(Superseded to 5100974FS)

$54.99

$

Usually ships in 2-12 days

0

11

Simplicity 5022319

KNOB, PLASTIC, 5/16-18 X 3/4
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 5408254A

WELD, BLOWER MOUNT, 61 - BLK
(Superseded to 5302814)

$473.99

$

Usually ships in 2-12 days

0

13

Simplicity 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 7

0

17

Simplicity 5100419

PULLEY, BK-62H

$62.99

$

In Stock, only 1 left!

0

18

Simplicity 5408272A

BRACKET,DEFLECTOR PLATE, 61
(Superseded to 5408272AFS)

$22.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0
