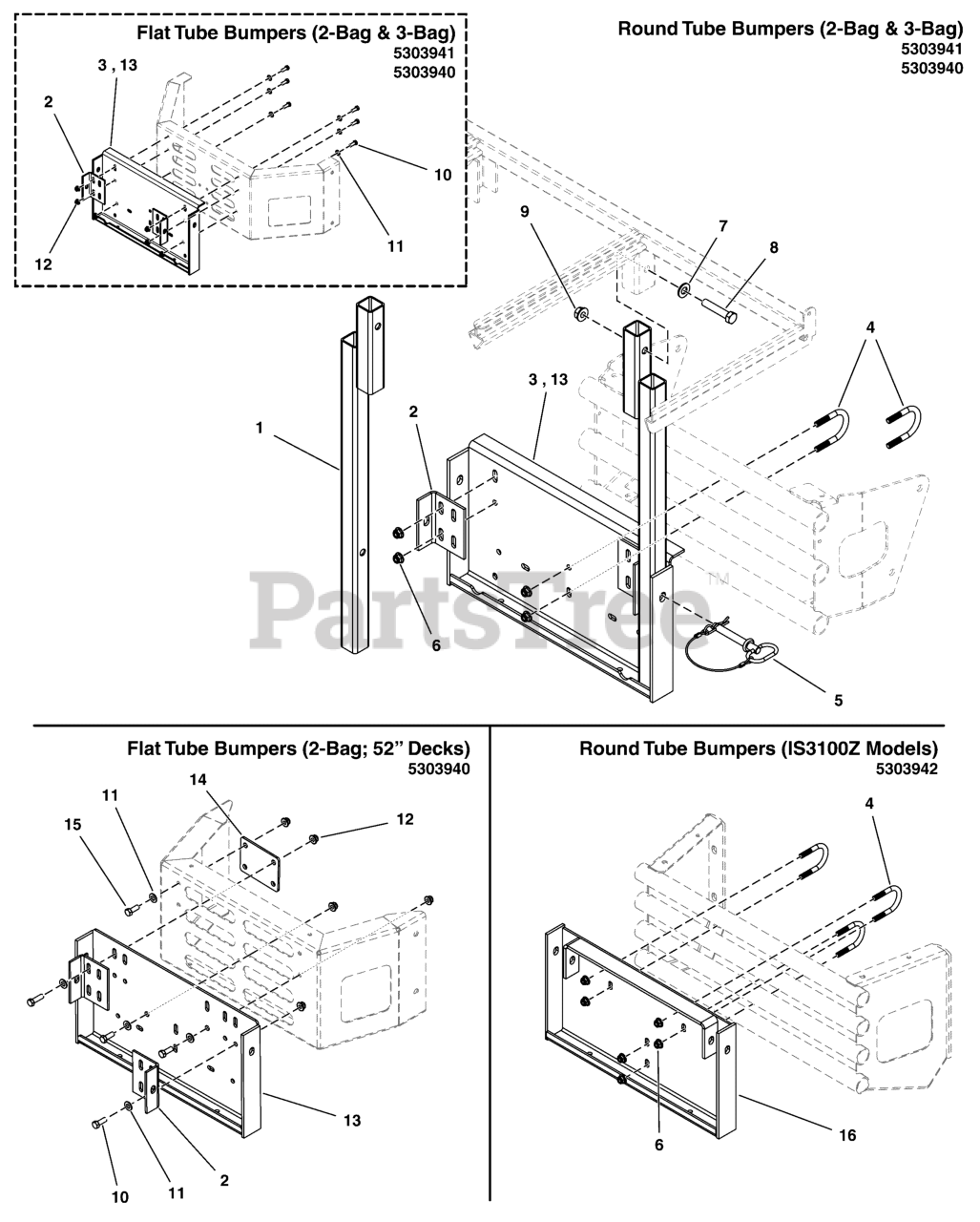

5600778 - Simplicity 48" iCD Turbo-Pro 2-Bag Hard Top Grass Collection System for 600 2-Bag & 3-Bag Mount Group - Hard Top System Parts Diagram

48" iCD Turbo-Pro 2-Bag Hard Top Grass Collection System for 600

2-Bag & 3-Bag Mount Group - Hard Top System Parts Diagram

  • Title

1

Simplicity 5412691A

WELD, HARD TOP, MOUNTING POST - BLK
(Superseded to 5412691AFS)

$92.99

$

Usually ships in 2-12 days

0

2

Simplicity 5402665A

BRACKET, BAGGER MOUNT - BLK
(Superseded to 5402665AYP)

$37.99

$

Usually ships in 2-12 days

0

3

Simplicity 5400149A

WELD, BAGGER MNT,1500/4500-BLK
(Superseded to 5400149AYP)

Note: (3-Bag Collection System)

$243.99

$

Usually ships in 2-12 days

0

4

Simplicity 5100009

U-BOLT, 3/8" X 1-1/4"
(Superseded to 5100009SM)

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 5100013

PIN, HITCH, .50 X 3.25 W/ LAY (SV)
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 6

0

8

Simplicity 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

9

Simplicity 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 2 left!

0

10

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

11

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5412980A

WELD, 2 BAG MOUNT - BLK
(Superseded to 5412980AFS)

Note: (2-Bag Collection System)

$171.99

$

Usually ships in 2-12 days

0

14

Simplicity 5412688A

PLATE, PECO MOUNT - BLK
(Superseded to 5412688AFS)

Note: (Flat Tube Bumpers, 52" Decks, 2-Bag Collection System)

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 5401514A

WELD, BAGGER MOUNT, IS3100Z - BLK
(Superseded to 5401514AFS)

Note: (IS3100Z Models Only)

$198.99

$

Usually ships in 2-12 days

0
