5600907 - Snapper Pro 61" iCD Fast-Vac EZ Dump XL 14 cu. ft. Hopper for 3200, 320 Blower Mount Group - IS3200Z / F320Z Series, FAST-Vac Parts Diagram

61" iCD Fast-Vac EZ Dump XL 14 cu. ft. Hopper for 3200, 320

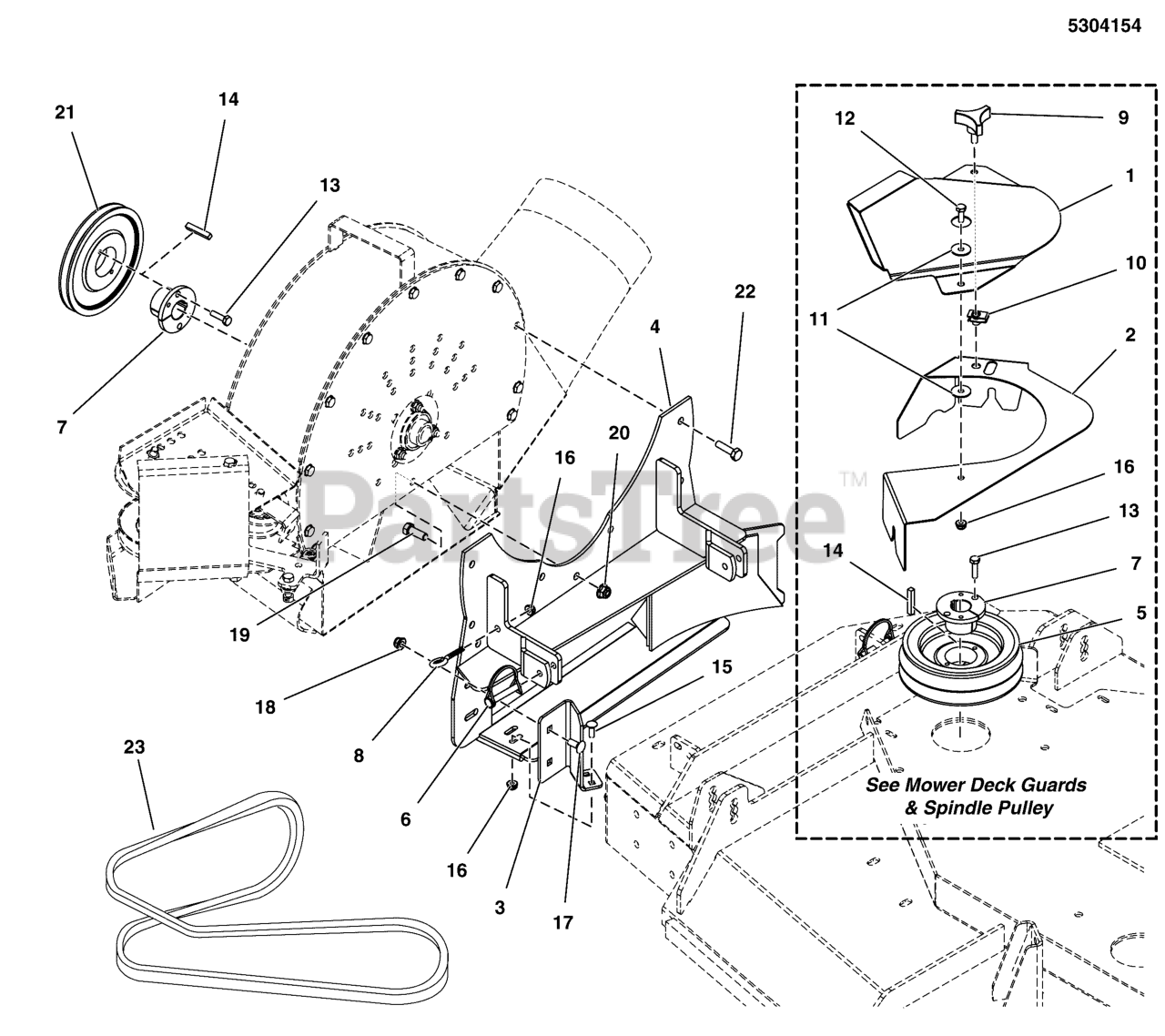

Blower Mount Group - IS3200Z / F320Z Series, FAST-Vac Parts Diagram

  • Title

1

SEE MOWER DECK GUARDS & SPINDLE PULLEY

$

$

Not available

2

SEE MOWER DECK GUARDS & SPINDLE PULLEY

$

$

Not available

3

Snapper Pro 5408272A

BRACKET, DEFLECTOR PLATE, 61" iCD - BLK
(Superseded to 5408272AFS)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5408254A

WELD, ADAPTER, 61ICD, FVAC - BLK
(Superseded to 5302814)

$473.99

$

Usually ships in 2-12 days

0

5

SEE MOWER DECK GUARDS & SPINDLE PULLEY

$

$

Not available

6

Snapper Pro 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5022205

EYE BOLT, 1/4-20 X 2.5, 1THRD, .5EYE,CZ
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022319

KNOB, PLASTIC, 5/16-18 X 3/4
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

11

Snapper Pro 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

12

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

13

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

20

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

21

Snapper Pro 5104406

PULLEY, SPLIT STEEL, 6.432"OB, HQ BORE
(Superseded to 5104406FS)

$60.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025059X8

BOLT, 5/16-18 X 1, SELF-TAPPING

$

$

Not available

23

Snapper Pro 5100974

BELT, A-SEC, 102.9"EL, ARAMID, WRPD
(Superseded to 5100974FS)

$54.99

$

Usually ships in 2-12 days

0
