5601092 - Snapper Pro 48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S Blower Mount Group - Turbo-PRO Parts Diagram

48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S

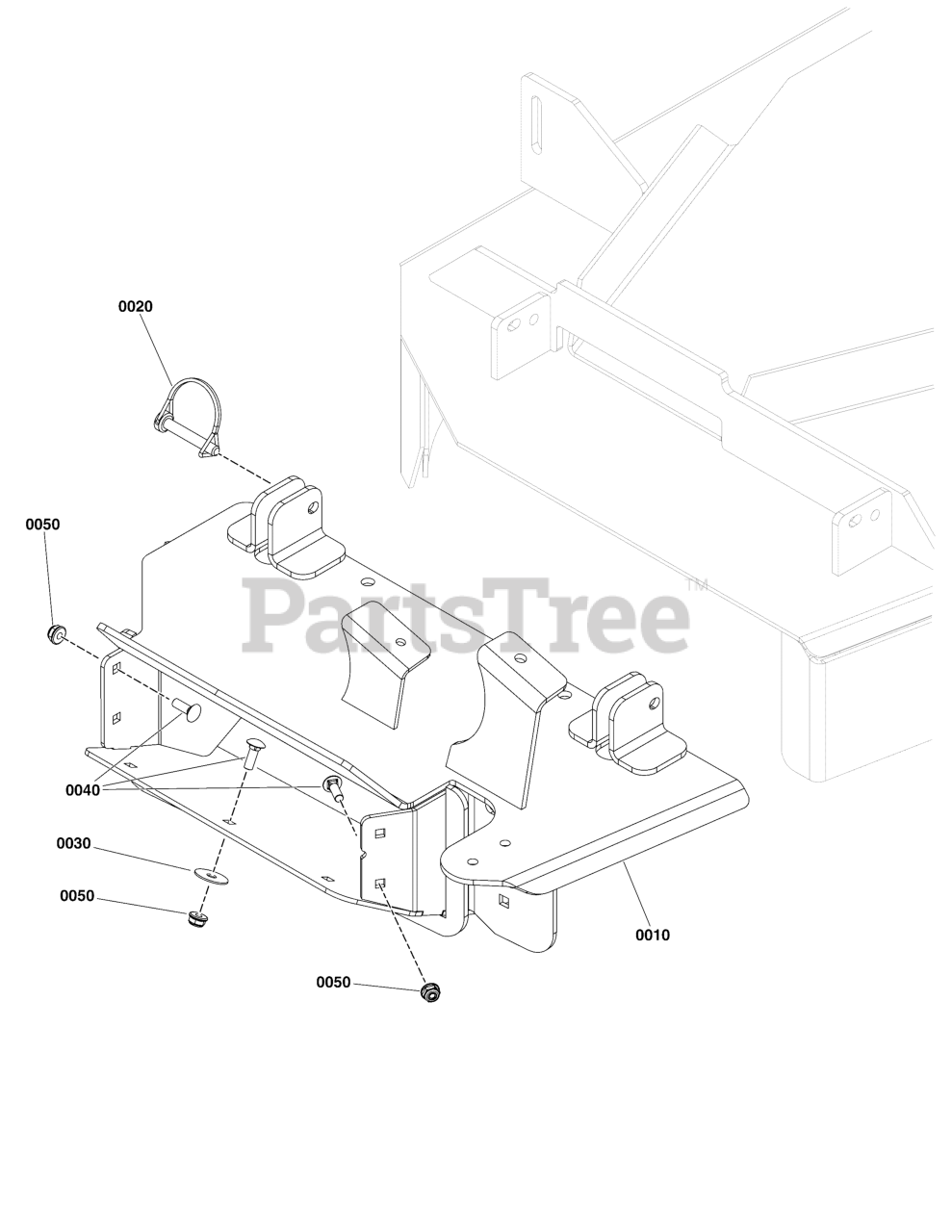

Blower Mount Group - Turbo-PRO Parts Diagram

  • Title

0010

Snapper Pro 5417191A

WELD, TURBO ADAPTER - BLK

Note: 1

$

$

Currently unavailable

0020

Snapper Pro 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

Note: 2

$16.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

Note: 3

$3.99

$

In Stock, Qty 5

0

0040

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

Note: 7

$3.99

$

In Stock, only 3 left!

0

0050

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

Note: 7

$3.99

$

Usually ships in 2-12 days

0
